Fitting (cont.)
90° 90°
G
H
I
K
> h
h
40 mm
19 mm
Ø 50mm
The CE requirements to EN 61347-11 are fulfilled. The EMC
requirements to EN 61547 are fulfilled.
Conformity with the relevant EU directives is
confirmed by the CE symbol.

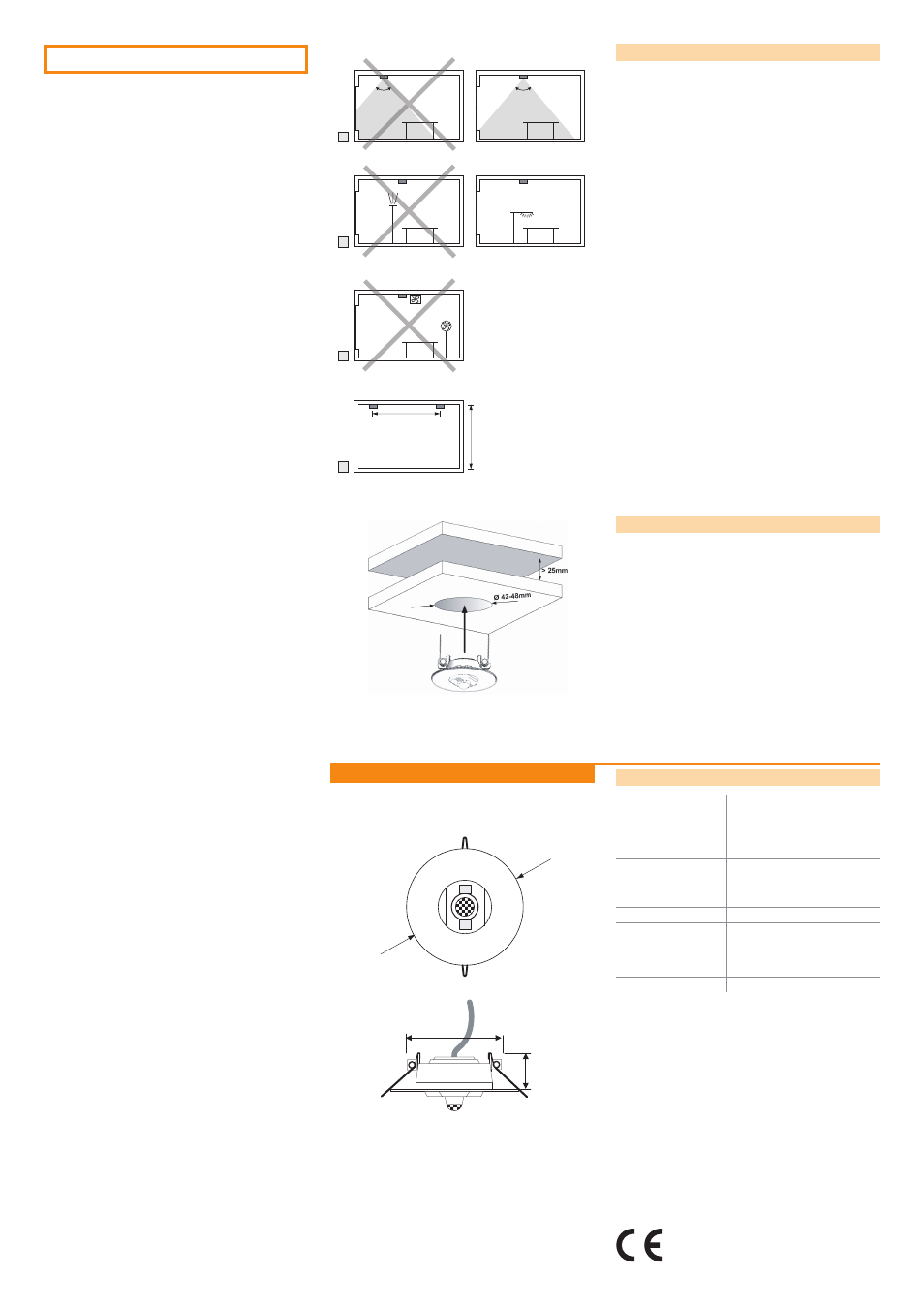

Selecting the installation location
G Surveillance cone: entire workplace; not on window sur-
faces.
H Avoid exposure to direct light.
I Avoid drafts (e.g. from ventilators or fans).
K Installation distance = min. installation height
Ceiling installation
• Diameter of installation opening 42 - 48 mm.
• Minimum suspended ceiling distance: 25 mm
Note:
For surface-mounted ceiling installation, use the SENSOR KIT
(order no. 4008321916662).
Appendix
Technical data
Combined control and
supply connection
4-pin modular connection (4p4c)
1: Supply voltage
2: Light measurement value
3: Motion signal
4: Signal ground
Maximum total length
of signal line (incl. all
connections to the
control units)
100 m
Insulation Basic insulation as per IEC 664
Dimensions
(Ø x H)
50 x 25 mm
Light sensor detection
area
20 - 600 lx (measured at sensor),
opening angle approx. 90°
Motion detection area Conical, opening angle approx. 80°
