Light and motion sensor
Fitting instructions
II 2009
LSPD_Multi3-CI_ma0902en_we1.01.indd

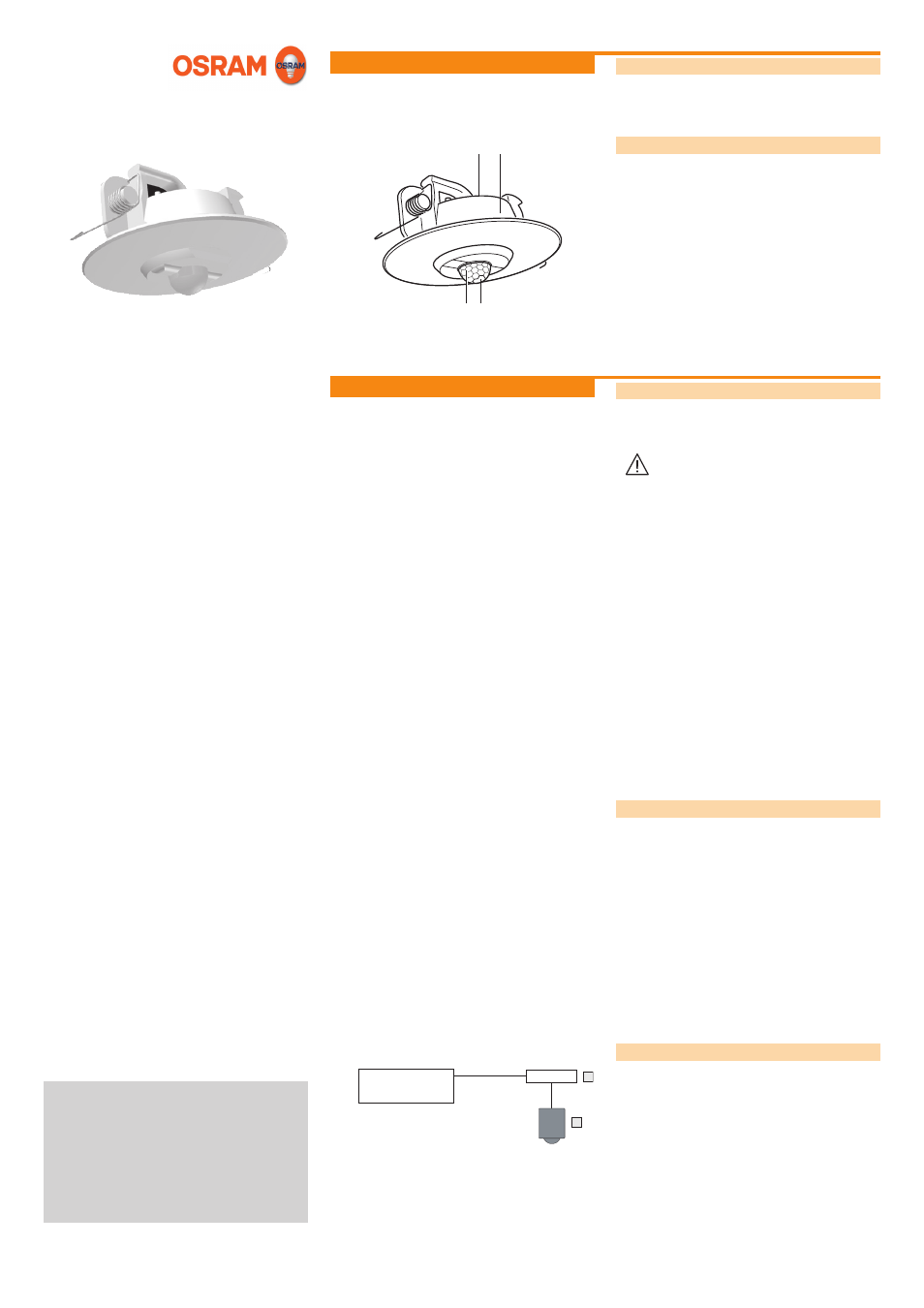

LS/PD MULTI 3 CI
A B
C D
DALI MULTI 3
Sensor E
F
Description
Function and application
The LS/PD MULTI 3 CI sensor detects the presence of people
and measures the intensity of ambient light.
The sensor is installed in ceilings.
Construction
The sensor is made up of the following components:
• Connection (A) for supply voltage, light measurement value,
motion signal and signal ground
• Housing (B)
• Aperture
• Light sensor (C)
• Motion sensor (D)
Installation
Safety instructions
The sensor must only be installed and put into operation by a
qualified electrician. The applicable safety regulations and ac-
cident prevention regulations must be observed.
WARNING!
Exposed, live cables or damaged housing.
Danger of electric shock!
• Only work on the sensor when it is de-energized.
CAUTION!
Destruction of the sensor and other devices through
incorrect mounting!
• Only use OSRAM control units of the following
types:
DALI MULTI 3/ DIM MULTI 3,
DALI MULTIeco/ MULTIeco, DALI PROFESSIO-
NAL Sensor Coupler.
• For SELV, ensure that there is sufficient insulati-
on from live parts.
• Do not connect control line with external voltage.
• Note the maximum total line length.
• Do not route the sensor line together with the
power or lamp line.
Adjusting the detection area
Limit the detection area:
 Divide the aperture at the preset breaking points as required.
‚ Pierce the cover with a pointed object to create the fixing
holes.
ƒ Attach the aperture.
Continued on the back page!
Adjust the detection area:
Tilt the motion sensor up to 30° in the required direction.
Connecting the sensor
Connect the sensor using the supplied cable or a commercially
available 4-pin cable. If the cable is shortened or lengthened,
ensure that the wiring is correct.
Sensors can be connected in parallel via a Y-branch. For the
maximum number of sensors: see the separate control unit
manual.
E Y-branch (optional)
F Sensor
