Installation (cont.)
G
N
L
+
_
1
2
3
4
G
N
L
+
_
1
2
3
4
G
N
L
+
_
1
2
3
4
N
L
N L + _
DIM MCU
+ _
H
E
G
N
L
+
_
1
2
3
4
G
N
L
+
_
1
2
3
4
G
N
L
+
_
1
2
3
4
N
N
L
L
L
L
N + _
DIM MCU
+ _
I
K 1
L
1
L
2
L
3
2
3
}
F
71
71
54
51
33
4
Connecting the potentiometer

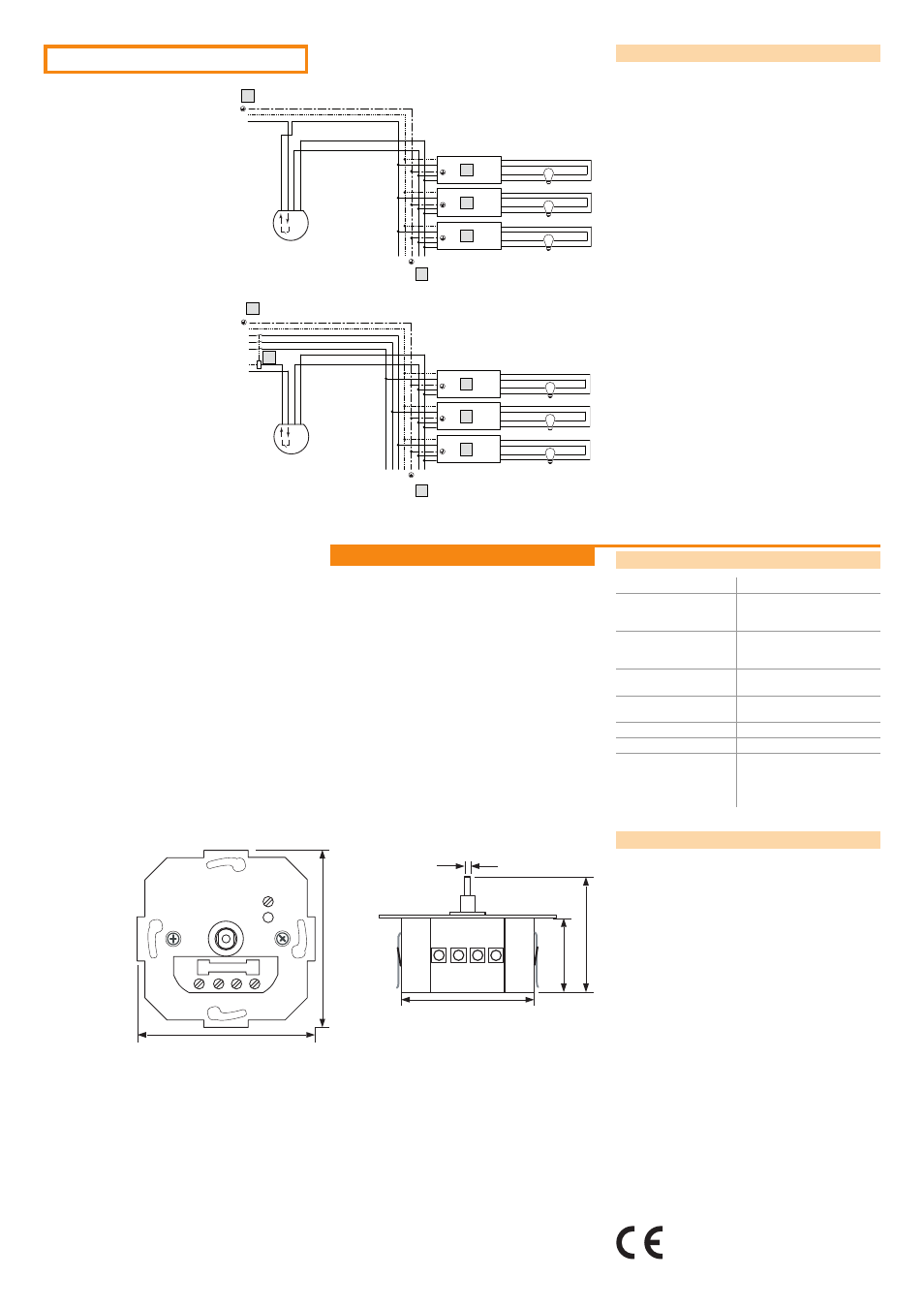

E Connection diagram for up to 10 single-lamp or 5 two-lamp
ECGs
F Connection diagram for up to 50 dimmable ECGs
G Dimmable ECG
H Connect max. 10 single-lamp or 5 two-lamp ECGs
I Connect max. 50 dimmable ECGs
K Relay or contactor
Appendix
Technical data
Operating voltage 230 V AC, 50-60 Hz
Switching output load
capacity
Max. 6 A resistive load
(10 single-lamp ECGs or
5 two-lamp ECGs)
Control output load
capacity
Max. 40 mA (max. 50 OSRAM
1...10V ECGs or 16 DIM SA
signal amplifiers)
Permissible line cross
section
Max. 1.5 mm²
Permissible ambient
temperature
0 °C ... 50 °C
Protection type IP 20
Protection class II
Dimensions Flush-mounted part (Ø x H):
54 x 33 mm
Mounting plate (L x W):
71 x 71 mm
Dimensions
Conformity with the relevant EU directives is
confirmed by the CE symbol.
