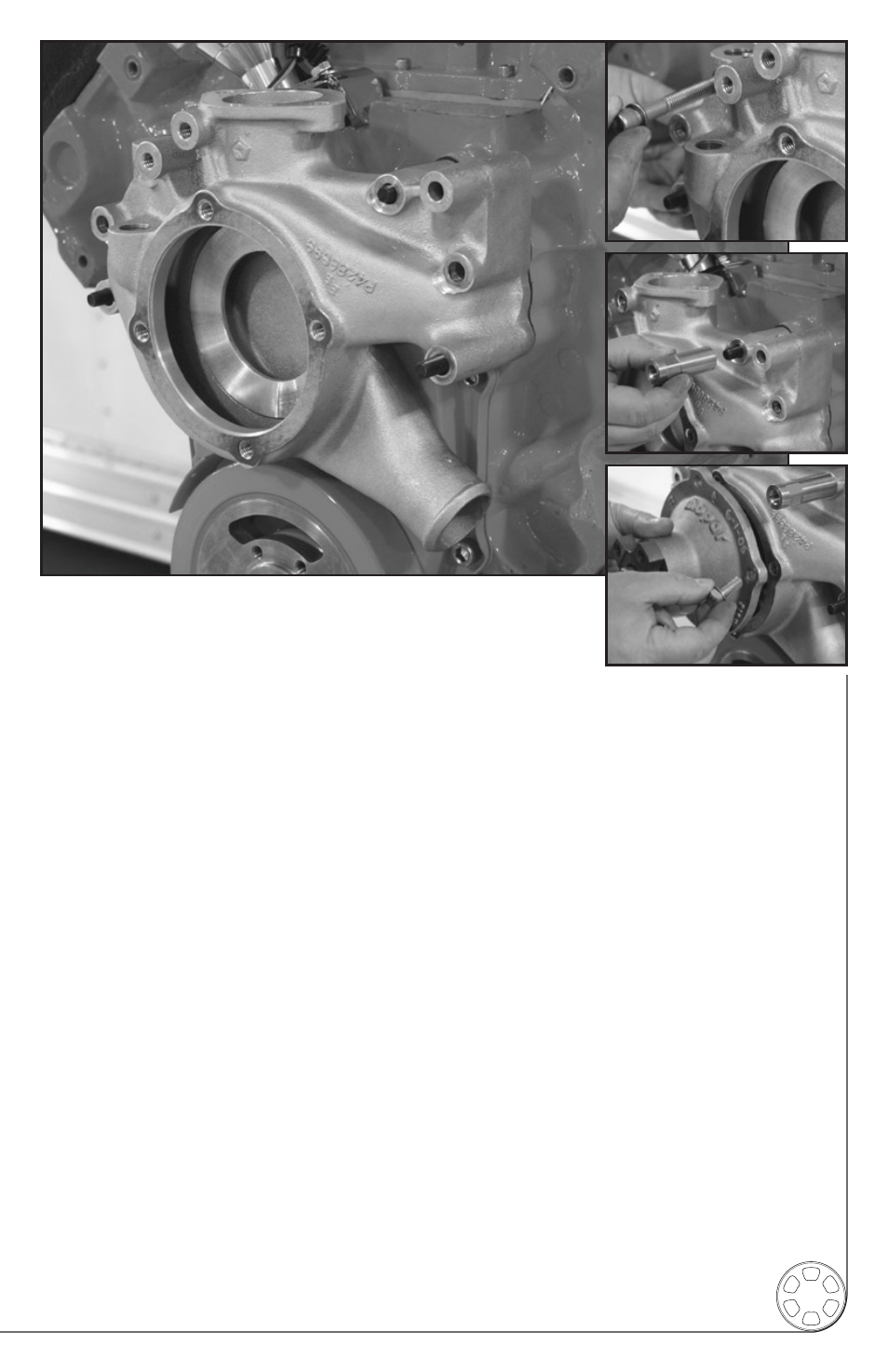

Figure 2: Install Water Pump Housing & Pump
Apply Permatex Hylomar® gasket dressing to both sides of water pump housing
gaskets and slip over studs on block. Install water pump housing onto studs make
sure top passenger gasket is still aligned.
(A) Apply anti-seize to the 3/8-16 x 2-1/2” socket head cap screw with 3/8”
washer and thread through water pump housing and into block, finger tighten.
(B) Thread the 2-3/32” long spacer nut to the driver side top stud and
finger tighten.
(C) Apply gasket dressing to both sides of water pump gasket and install water
pump to housing and tighten firmly. Seep hole on pump should point down.
