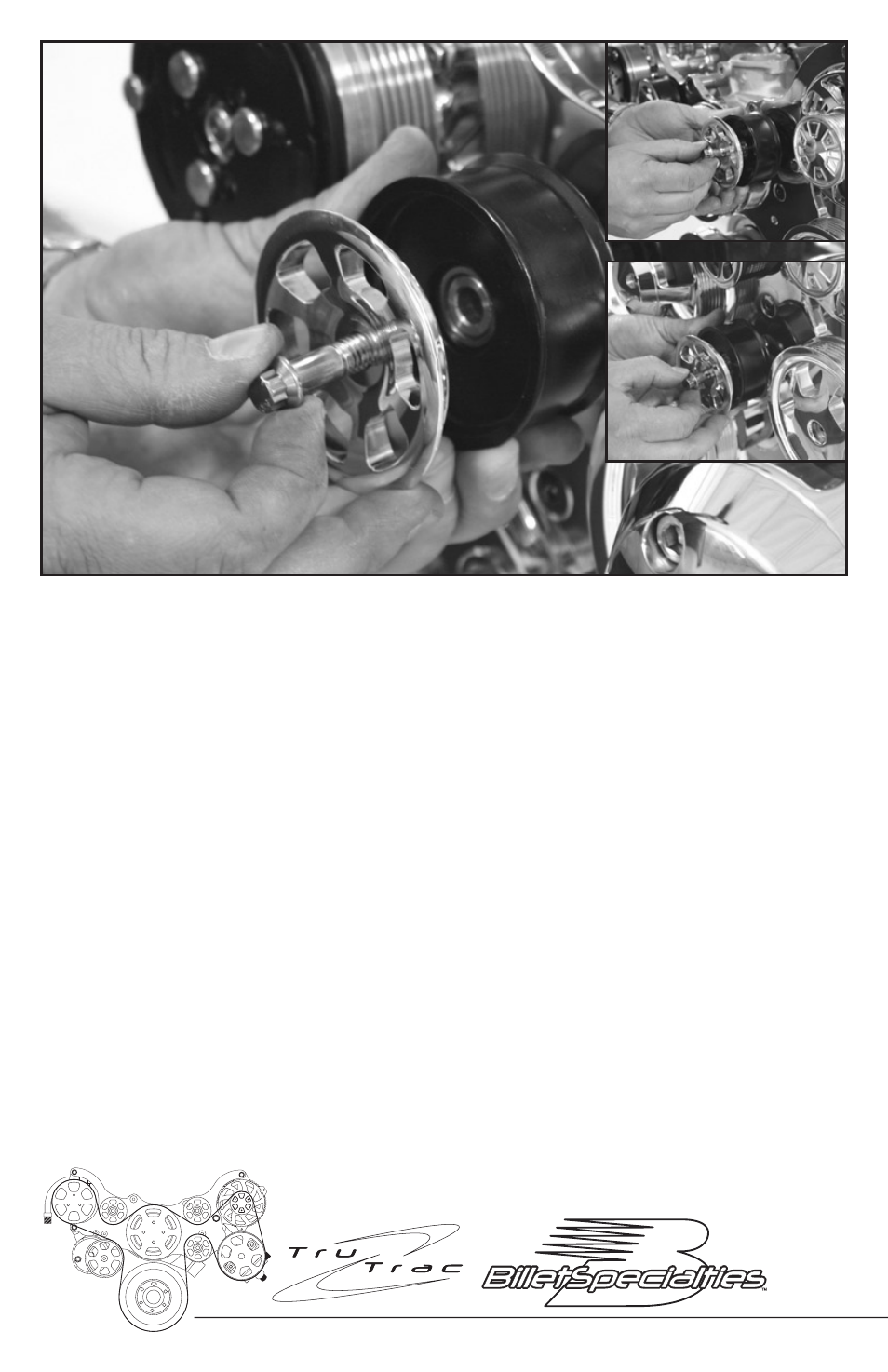

Figure 11: Install Idler Pulleys
Apply anti-seize to the three 3/8-16 x 1-3/4” ARP 12pt cap screws. Thread the
3/8-16 x 1-3/4” ARP cap screw through the idler pulley polished cover, idler pulley
and boss into the bridge bracket and tighten firmly (46 ft/lbs).
(A)(B) Repeat step for other two idler pulleys.
(A)
(B)
