Billet Specialties Premium Tru Trac Serpentine System - Big Block Chrysler | HEMI User Manual
Page 19
www.billetspecialties.com

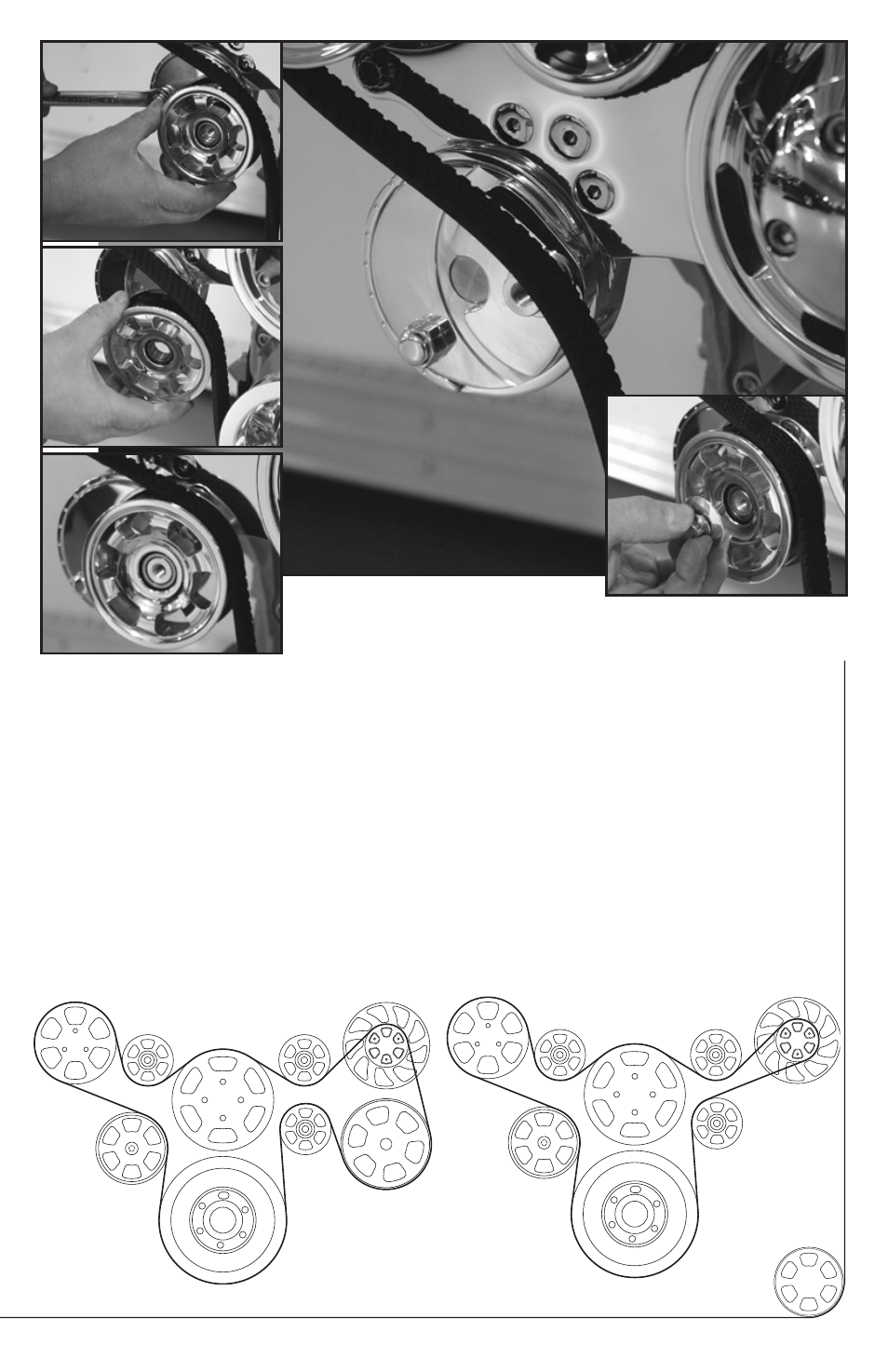

Figure 14: Install Belt & Tensioner Pulley
(A) Install and route belt as shown in the diagram below allowing belt to rest on
pulley boss.
(B) Place a 5/8” box end wrench on tensioner nut.
(C) Align belt onto pulley groove above tensioner boss.
(D) Pull up on wrench until tensioner pulley is able to slip onto tensioner boss.
(E) Thread 3/8-16 x 3/4” 12pt ARP bolt and washer onto tensioner pulley and
tighten firmly.
Connect electrical and fluid lines, test run motor. Inspect fittings and hardware,
tighten if necessary.
19
(C)
(D)
(E)
(B)
(A)
With Power Steering
Without Power Steering
