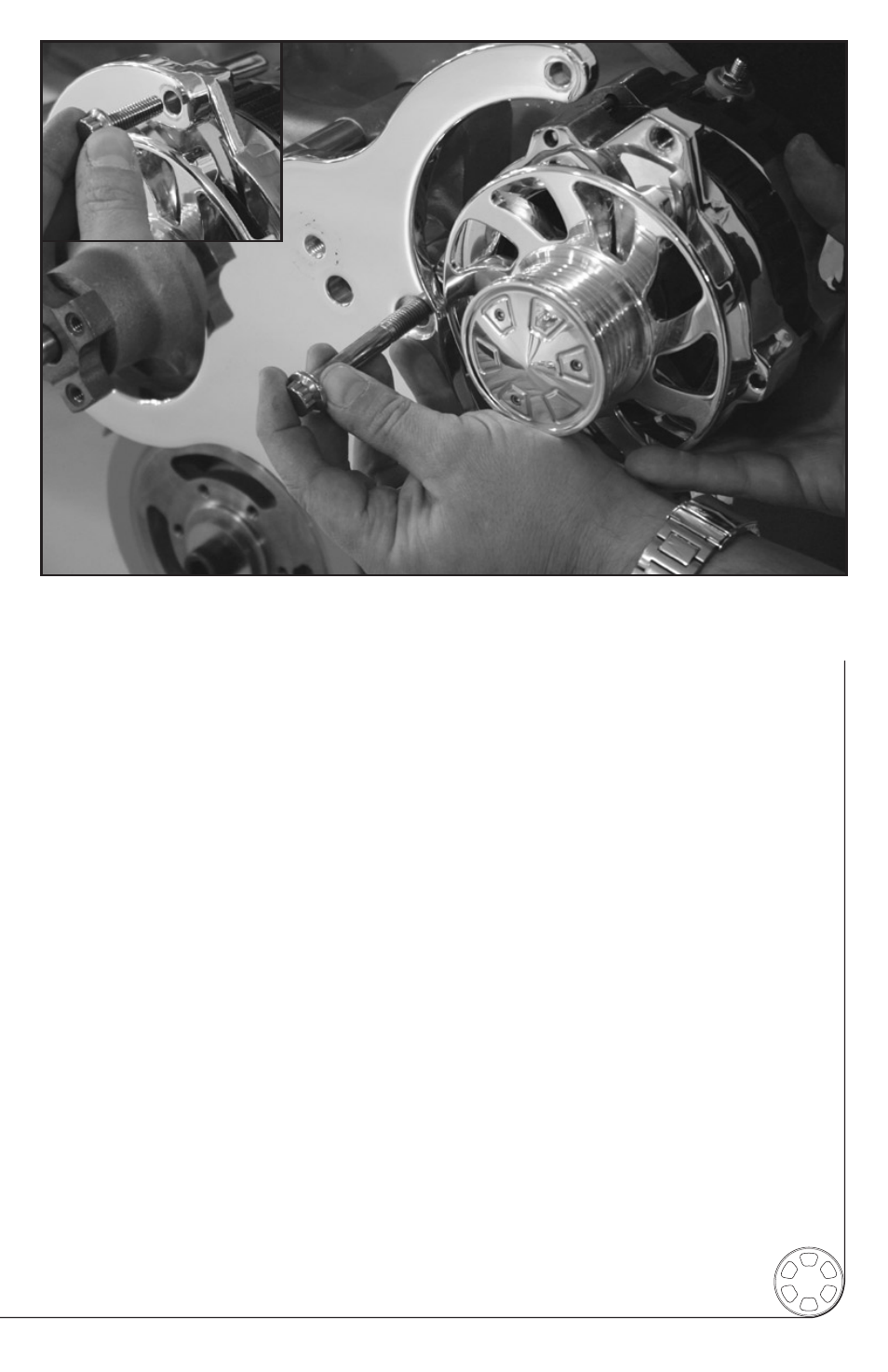

Figure 6: Install Alternator
Apply anti-seize to the M10 x 2-3/4” ARP 12pt cap screw, place and align the
alternator between the bridge bracket and the alternator bracket with the long
mounting boss at the bottom.
Thread the M10 x 2-3/4” ARP 12pt cap screw through the bridge bracket and
alternator into the alternator bracket and finger tighten.
(A) Apply anti seize to the M8 x 1” ARP 12pt cap screw, align top alternator boss
with the bridge bracket and thread cap screw through bridge bracket and into
alternator – finger tighten.
10mm shim washers are provided to shim the alternator if needed at the bottom.
The alternator mounting boss may vary in width due to the polishing process.
Do not tighten fasteners at this time.
11
(A)
