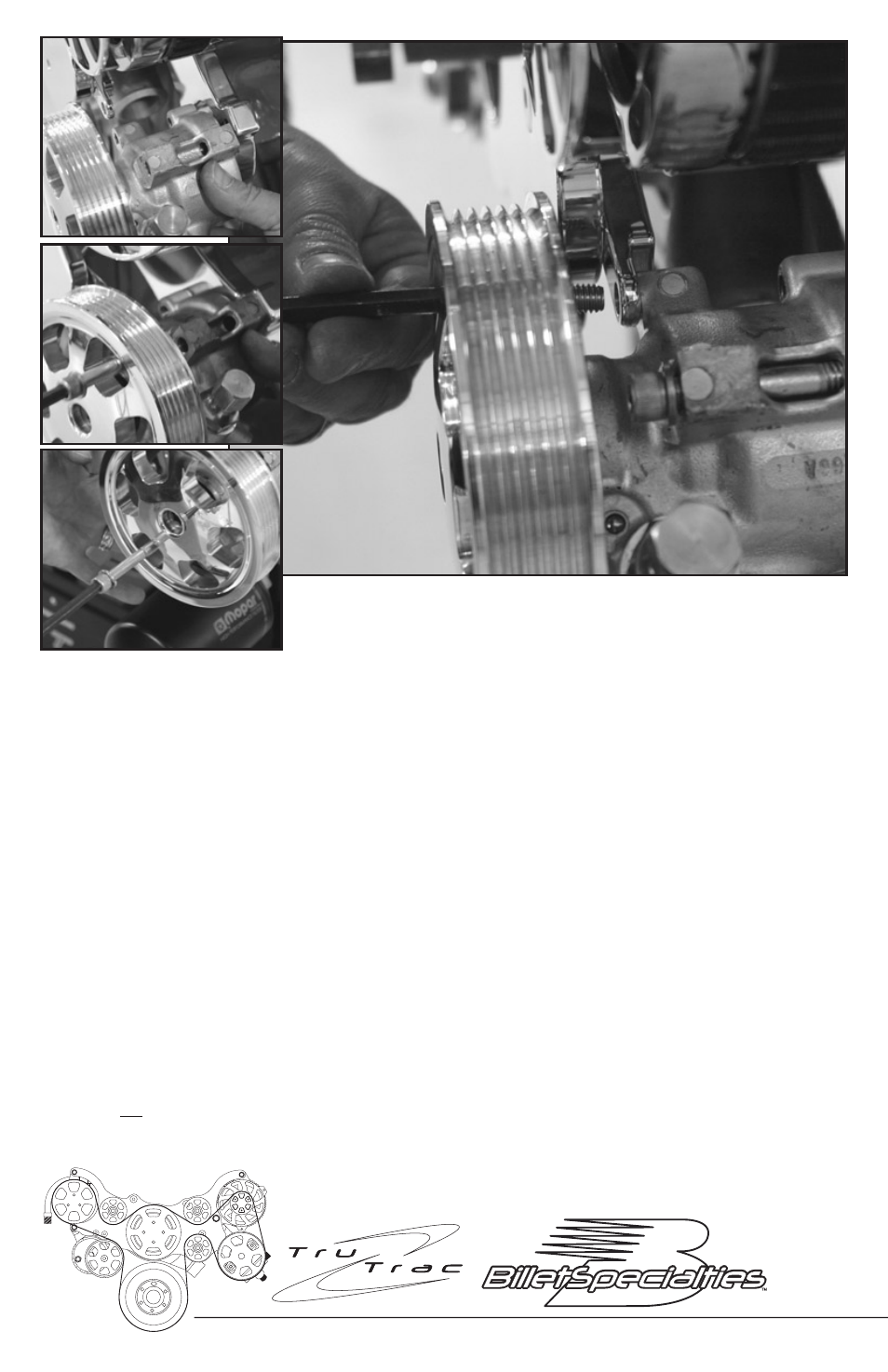

Figure 9: Install Power Steering Pump & Pulley
Apply anti-seize to the two 5/16-18 x 2-3/4” socket head cap screws and to the
M8-1.25 x 25mm socket head cap screw.
(A)Place the power steering pump between the bridge bracket and the
alternator bracket aligning the pump ears with the mount holes in the power
steering bracket.
(B)(C) Thread the two 5/16-18 x 2-3/4” socket head cap screws with 5/16”
medium-split washers through the power steering pump and into the small
support bracket and finger tighten.
(D) Thread the M8-1.25 x 25mm socket head cap screw through the bracket into
the power steering pump and tighten firmly.
Tighten the two other power steering fasteners firmly at this time.
Tighten all bridge bracket fasteners and accessory hardware firmly at this time.
(A)
(B)
(C)
(D)
