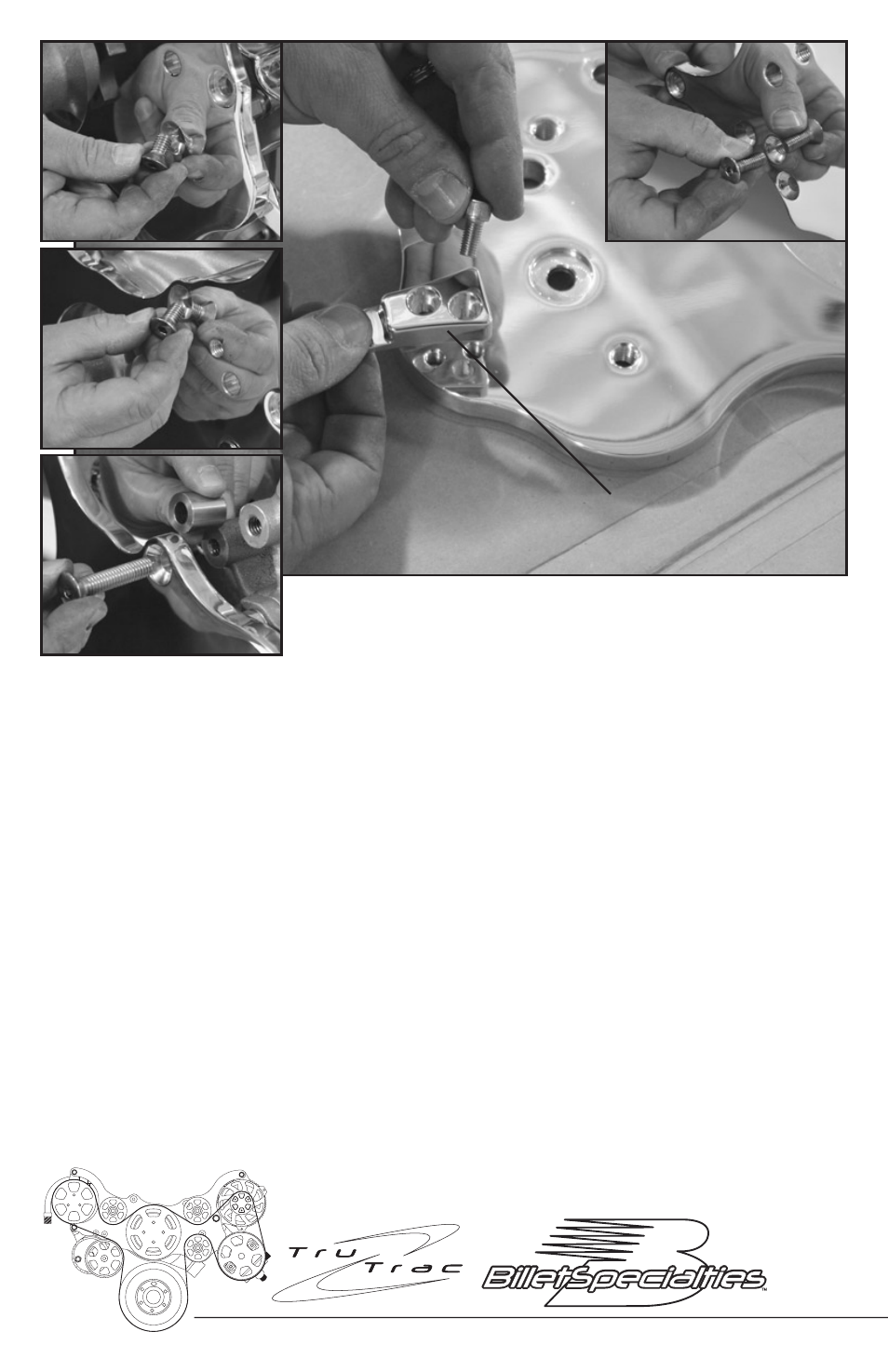

Figure 5: Install The Bridge Bracket
For kits with power steering: Attach the power steering support bracket to the
back of the driver side bridge bracket with two 1/4-28 x 1/2” socket head cap
screws and tighten firmly.
Place bridge bracket onto face of motor and align bracket mount holes with
spacer nuts and water pump bosses. (A) Apply anti seize to the 3/8-16 x 3/4” flat
head cap screw and thread through the lower driver side of the bridge bracket
and into the spacer nut, finger tighten. (B) Apply anti seize to the 3/8-16 x 1” flat
head cap screw and thread through the top driver side bridge bracket and into
upper spacer nut, finger tighten.
(C) Apply anti seize to the 3/8-16 x 1-3/4” flat head cap screw. Place the 13/16”
stainless spacer between bridge bracket and the top of the water pump
housing, thread the 3/8-16 x 1-3/4” flat head screw through the bridge bracket,
spacer and into the housing - finger tighten.
(D) Apply anti-seize to the 5/16-18 x 1” flat head screw and thread through the
lower passenger side of the bridge bracket into the spacer nut and
finger tighten.
(A)
Power Steering Support Bracket
(D)
(B)
(C)
