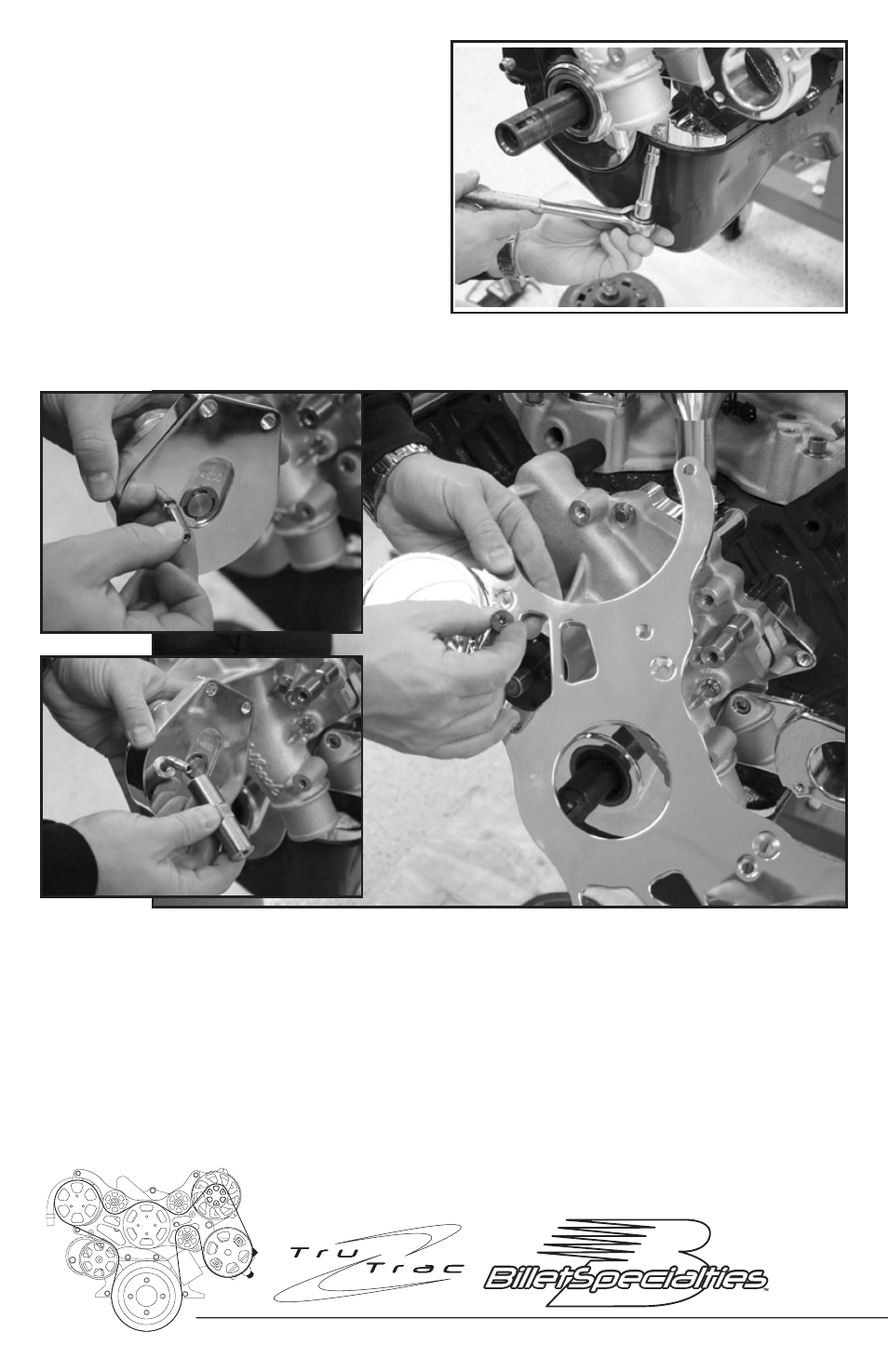

Figure 5: Prepping The Tensioner

(A) Apply anti-seize to one end of 5/16-18 x 1” socket set screw and thread into back of
tensioner and finger tighten.

(B) Apply anti seize to exposed threads of stud, then thread 2-5/8” spacer nut onto stud
and tighten firmly.

(C) Attach tensioner assembly to bridge bracket by applying anti seize to one 5/16-18 x 1”
flat head cap screw through bridge bracket into tensioner and finger tighten.

Figure 4: Install Oil Pan

Apply a thin bead of RTV silicone on oil pan.
Align and place oil pan rail gaskets on oil pan
noting that there is a right and left side apply
another thin bead of silicone to top of gasket.

Install rear oil pan seal on motor by applying a
thin bead of RTV silicone to both sides (apply
sparingly). Seat gasket firmly into block flush
with surface, align and mount oil pan with
saved hardware. Tighten to OEM specs.

(A)

(B)

(C)
