SENA Parani-MSP1000 - Manual (Page 14)

14
2.4.1. Configuration using the RS232 serial connection
1) Connect one end of the console cable to the console port on the Parani-MSP1000.

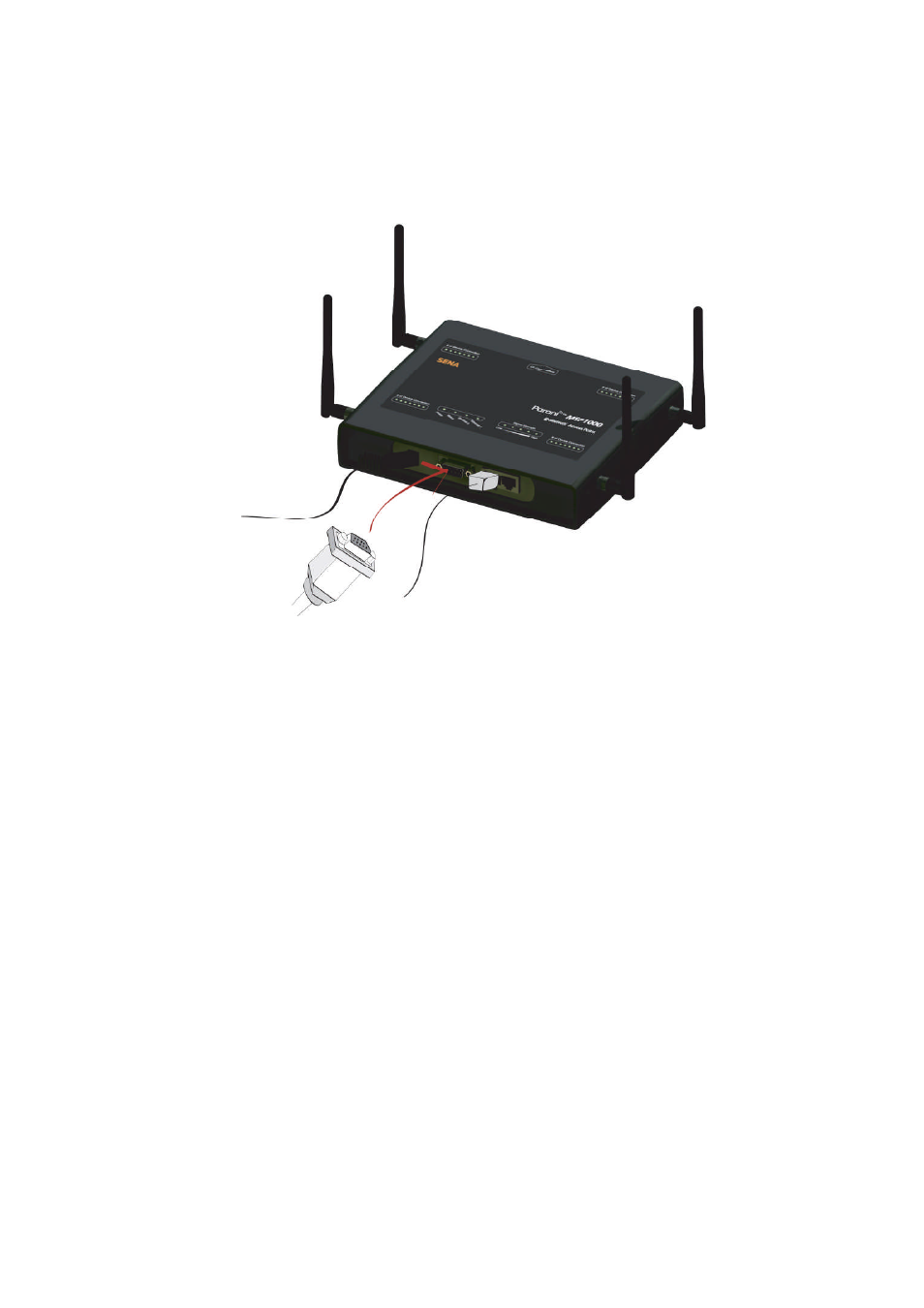

Figure 2-4 Connecting a system console cable to the Parani-MSP1000
2) Connect the other end of the cable to the serial port of the user’s computer.
3) Run a terminal program (i.e. HyperTerminal). Set the serial configuration parameters of the
terminal program as follows:
 9600 Baud rate
 Data bits 8
 Parity None
 Stop bits 1
 No flow control
4) Press the [ENTER] key.
5) Enter your username and password into the Parani-MSP1000. The factory default user
settings are as follows.
Login: root Password: root
6) After logging in , users can use various shell commands in the CLI(Command Line interface).
For details on usage of the CLI, refer to the chapter 10. “CLI Guide”.
7) “editconf” command will allow you to enter the text-menu driven interface .
