11
2. Getting Started
2.1. External View

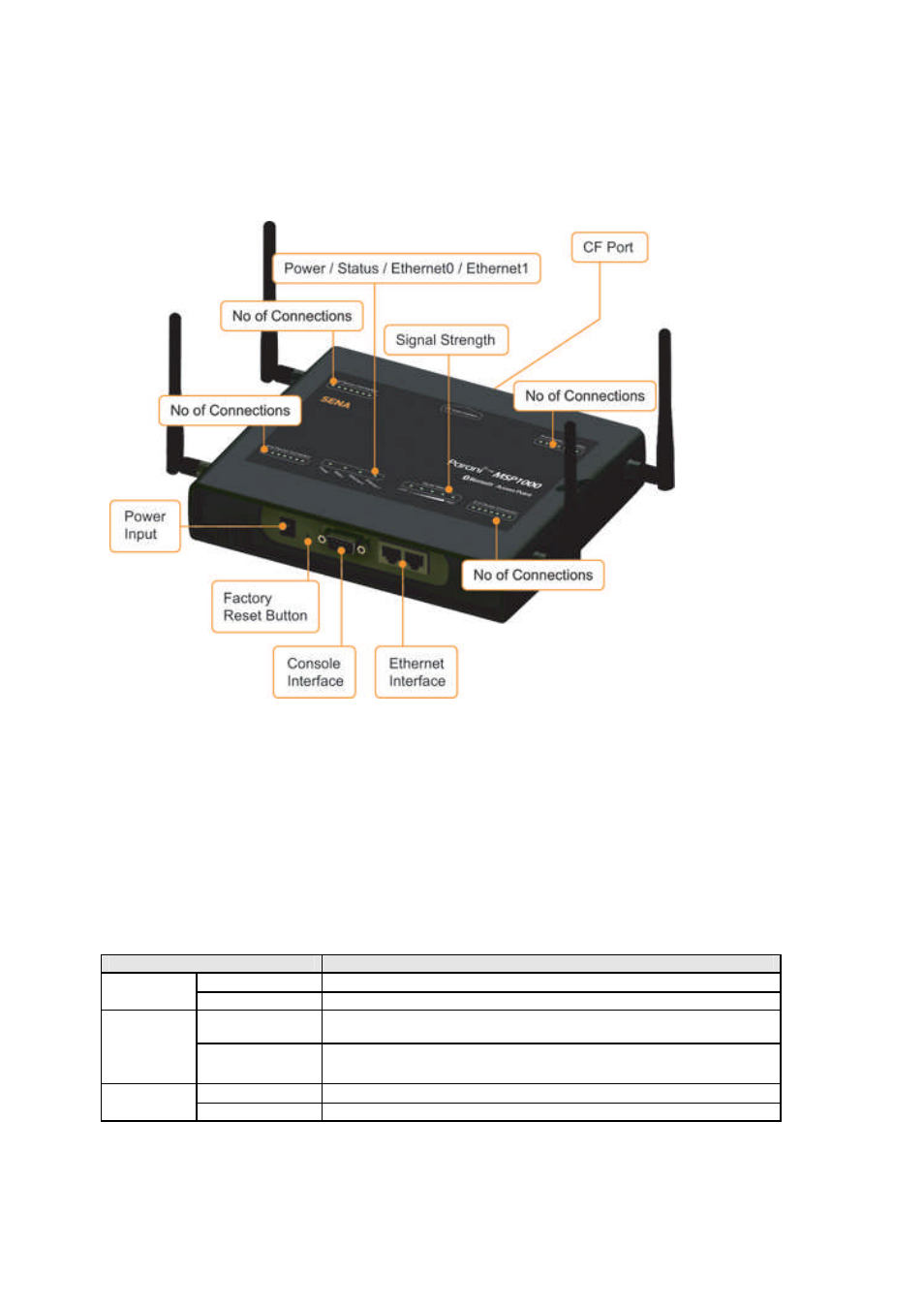

Figure 2-1 External view of the Parani-MSP1000
2.2. LED Indicators
The Parani-MSP1000 has a number of LED indicator lamps for status display. Table 2-1 describes the
function of each LED indicator lamp.
Table 2-1 LED indicator lamps
Lamps Function
Ethernet 0 Blinks whenever there is any activity on the Ethernet 0 port
Ethernet
Ethernet 1 Blinks whenever there is any activity on the Ethernet 1 port
Signal Strength
Shows the signal strength of Bluetooth sessions currently connected to
the Parani-MSP1000.
Bluetooth
No of
Connections Shows the number of Bluetooth sessions currently connected to the
Parani-MSP1000
Status Solid GREEN, if system is running and ready to be used.
System
Power Solid GREEN, if power is supplied
