Routing table shows paths that data will follow. Arrow shows direction of data flow. In
the above example, data coming from 00:0B:53:16:21:4C will be sent to
00:0B:53:12:09:F3 and 00:0B:53:16:11:CB and data coming from 00:0B:53:16:11:CB
will be sent 00:0B:53:16:21:4C in the reverse direction, but data coming from
00:0B:53:12:09:F3 will be dismissed because it has no path in the route table.

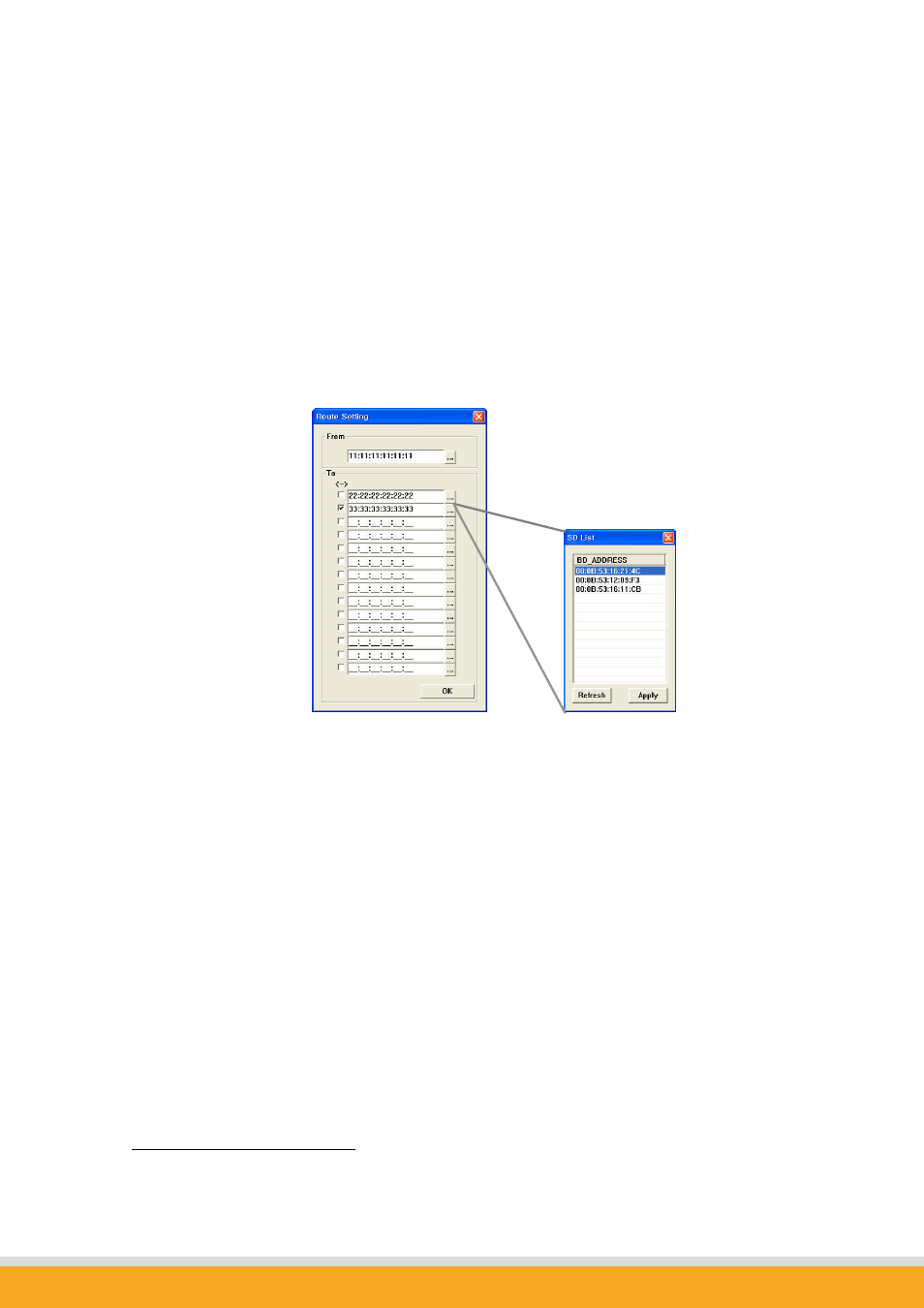

Press Add to add route entry. Following dialog will appear.
To select Bluetooth device, press ‘… ’, then Bluetooth devices connected currently will
be displayed in another dialog or enter bluetooth device address manually.
If you mark checkbox, opposite direction route will be also registered.
f) RS232 Mode
1
In RS232 Mode, Promi-MSP may communicate with other Bluetooth device via RS232
serial cable.
As RS232 port has been configured to be used as Configuration as factory setting,
users need to change the switch on the left side of Promi-MSP to data communication
mode.
1
Available only with Promi-MSP102.
