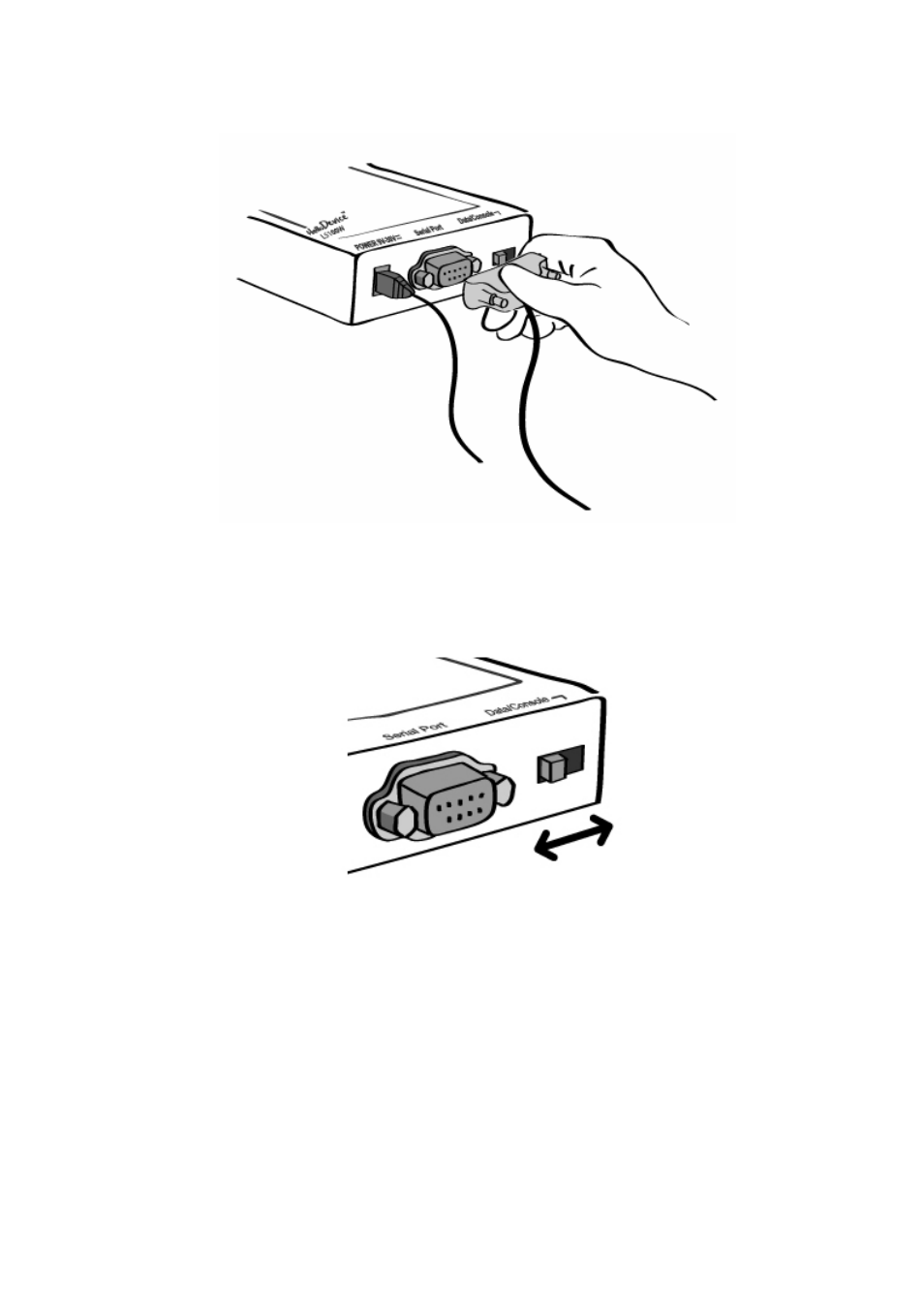

Figure 2-4. Connecting a serial console cable to the LS100W
2) Connect the other end of the cable to the serial port of user’s computer.
3) Slide Data/Console switch to Console side.
Figure 2-5. Data/Console switch of the LS100W
4) Run a terminal emulator program such as HyperTerminal. Set up the serial configuration
parameters of the terminal emulation program as follows:
9600 Baud rate, Data bits 8, Parity None, Stop bits 1, Hardware flow control
5) Press [ENTER] key.
6) Type the user name and password to log into the LS100W. A factory default setting of the
user name and password are both admin.
7) If the user logged into the LS100W successfully, command prompt screen will appear on the
computer as shown in Figure 2-6.
