B: Specifications

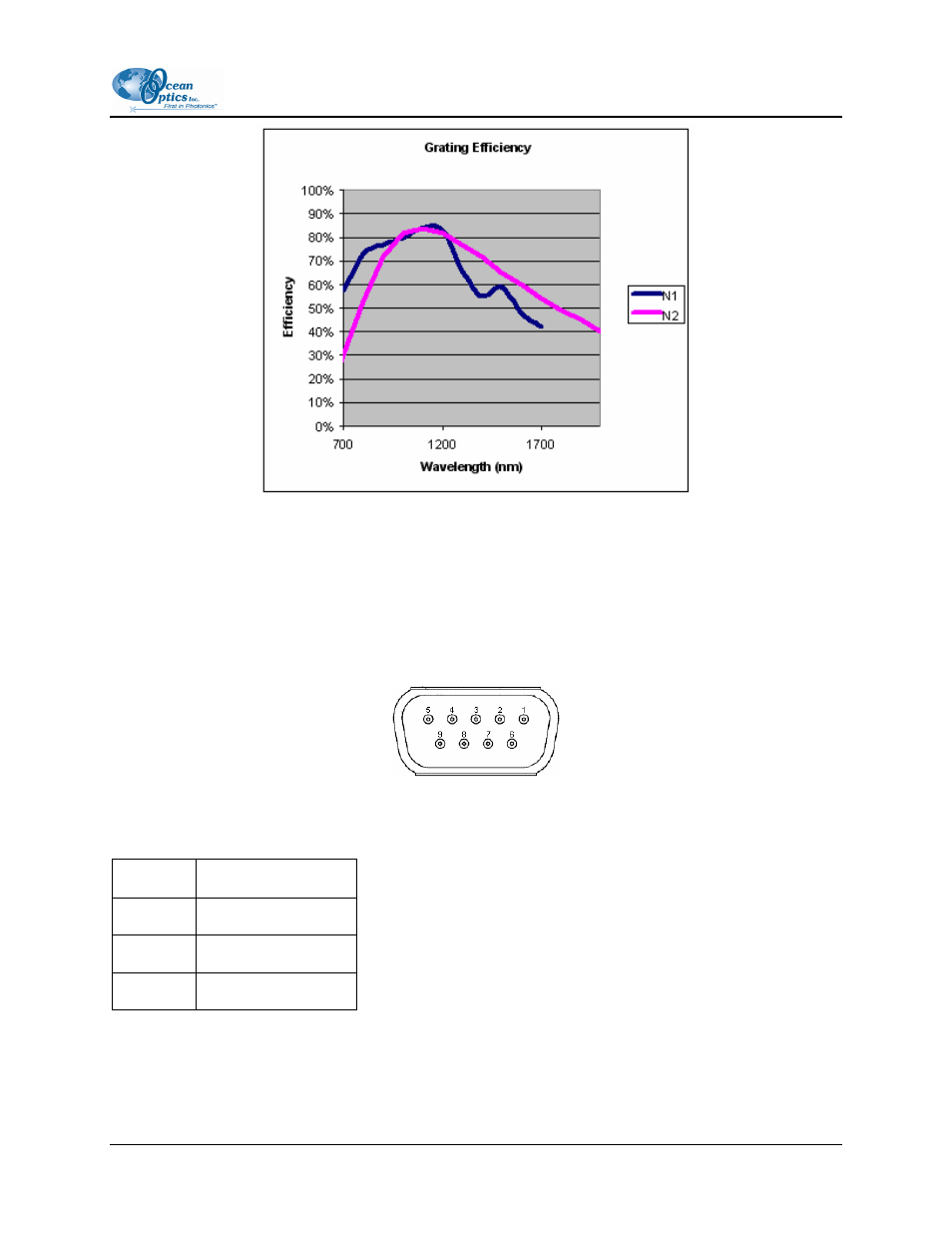

Grating Efficiency Curves
9-pin RS-232 Serial Port Pinout
When facing the 9-pin RS-232 Serial Port connector on the NIR Spectrometer, the pins are numbered as:
9-pin RS-232 Serial Port Connector – Pin Definitions
Pin #
Description
2 RS232
Transmit
3 RS232
Receive
5 Ground
197-00000-512-02-0707
25
