Replacing the deuterium bulb for dh-2000-bal model – Ocean Optics DH-2000 User Manual
Page 25
A: Maintenance
000-10000-025-02-1209
17
Replacing the Deuterium Bulb for DH-2000-BAL Model
►
Procedure

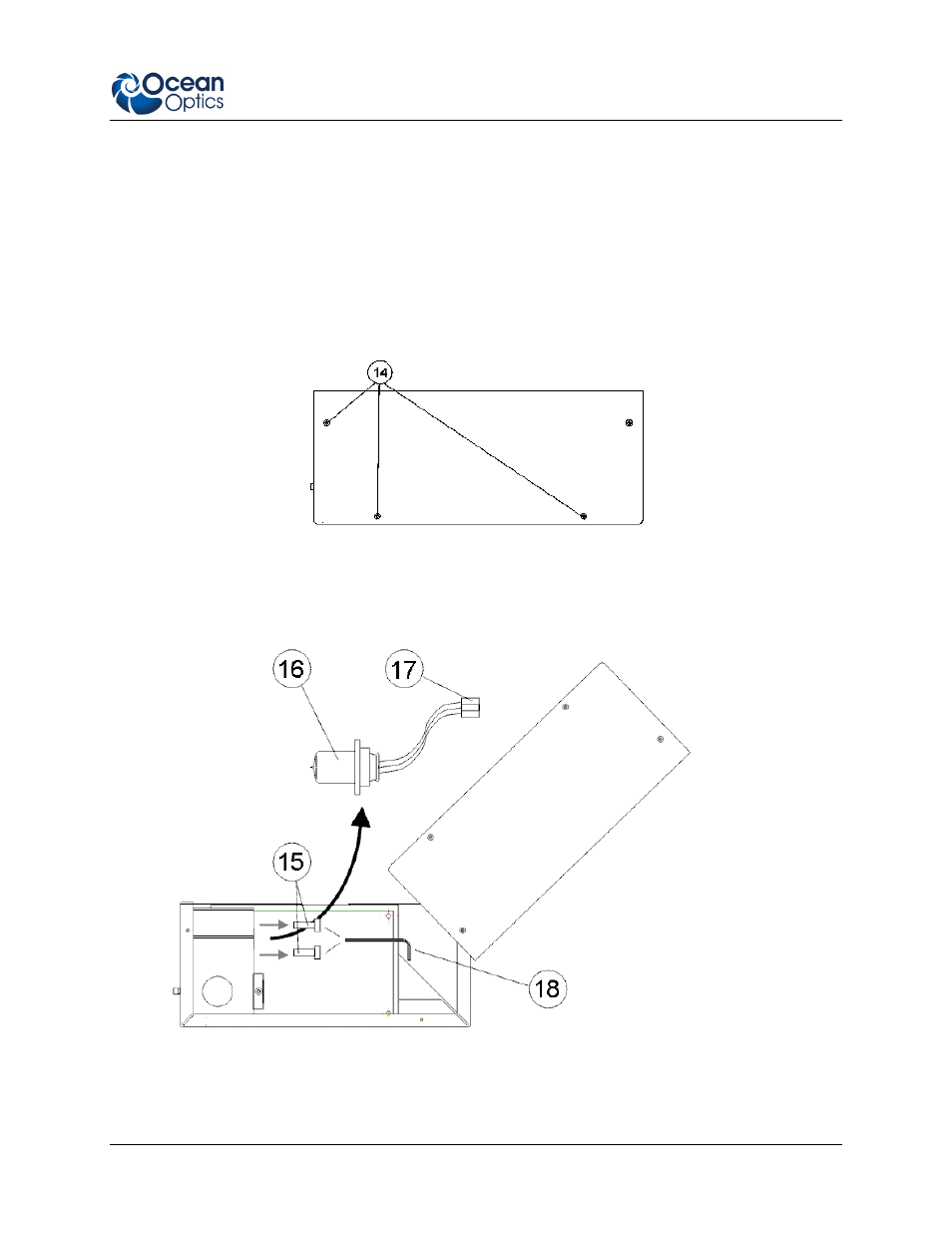

1. Open the six slotted screws (14) and open the casing cover and rotate or remove the cover to
expose the bulb housing.
2. Open the screws (15) with the tool (18) that is delivered with the spare bulb (16).
3. Disconnect the old bulb and connect the new Deuterium lamp only with the originally supplied
connection plugs (17).
4. Reassemble the lamp housing by reversing Steps 1-3.
