2: DH-2000 Specifications

6

000-10000-025-02-1209

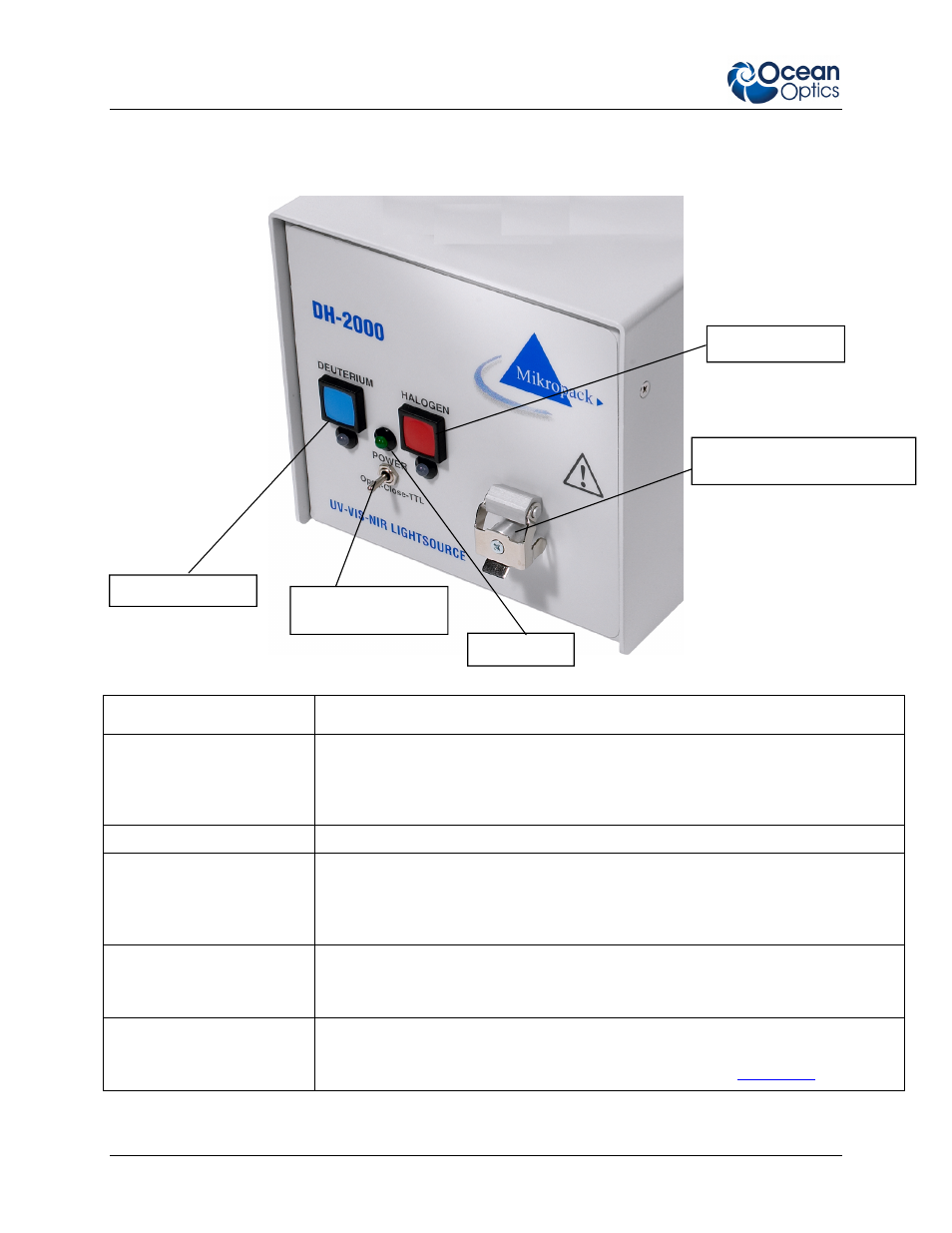

Front Panel

Component

Description

Deuterium On/Off

Press the

blue

DEUTERIUM button to turn the Deuterium lamp on or off. The bulb

requires a warm-up time of 20 seconds before the Deuterium lamp is illuminated.
You must allow the bulb to warm up to receive accurate data from the lamp.

LED lights green upon successful illumination, or red to indicate lamp malfunction.

Power LED

Indicates the power state of the DH-2000.

Mechanical Protection –
SMA Connector

Covered to protect users from unintentionally looking directly at the beam of light.
Connect the fiber cable to the DH-2000 BEFORE turning the lamp on to avoid
unnecessary exposure to UV radiation.

Always wear proper eye protection when using the DH-2000 lamp.

Halogen On/Off

Press the

red

HALOGEN button to turn the Halogen lamp on or off. Requires a

warm-up time of 20 seconds before the Halogen lamp is illuminated.

LED lights green upon successful illumination, or red to indicate lamp malfunction.

For DH-2000-S and -BAL
models:

Shutter Mode Switch

Sets the operational mode of the shutter. Open indicates that the shutter is
constantly open; Closed indicates that the shutter is constantly closed; TTL
indicates that the shutter is operated via 5V TTL signal (see

Rear Panel

).

Deuterium On/Off

Power LED

Mechanical Protection –SMA
Connector

Halogen On/Off

TTL Shutter On/Off
Switch
