2: DH-2000 Specifications
000-10000-025-02-1209 9
Pinout Information
The following table contains pinout information for the DH-2000 Series of Lamps. Consult the
appropriate column for pinout information on your lamp.
If your lamp is not listed, pinout information in this chart is not applicable for your particular model.
Pin Description
D
H
-2
00
0
D
H
-2
00
0-
S
D
H
-2
00
0-
FH
S
D
H
-2
00
0-
TT
L
D
H
-2
00
0-
B
A
L
1 na
2 Deuterium Lamp – Turns the Deuterium Lamp
on when 5V is applied to the pin
X
3 Halogen Lamp - Turns the Halogen Lamp on
when 5V is applied to the pin
X
4 Ground (TTL versions only) X
5 na
6 na
7 na
8 na
9 na
10 Ground X X X X
11 na
12 na
13 TTL Signal – Shutter control X X X X
14 na
15 na
na = not applicable

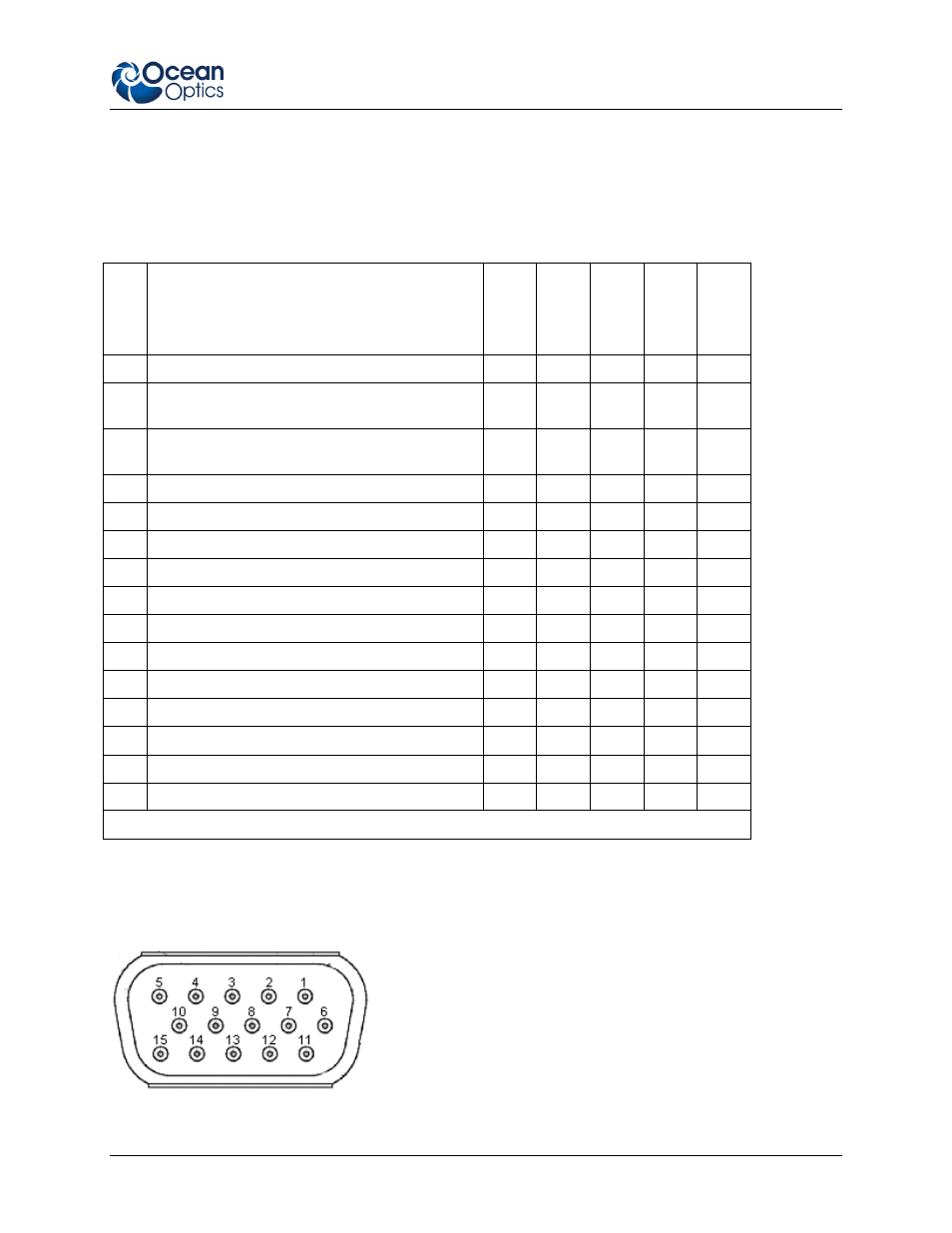

15-pin Connector Pinout Diagram
