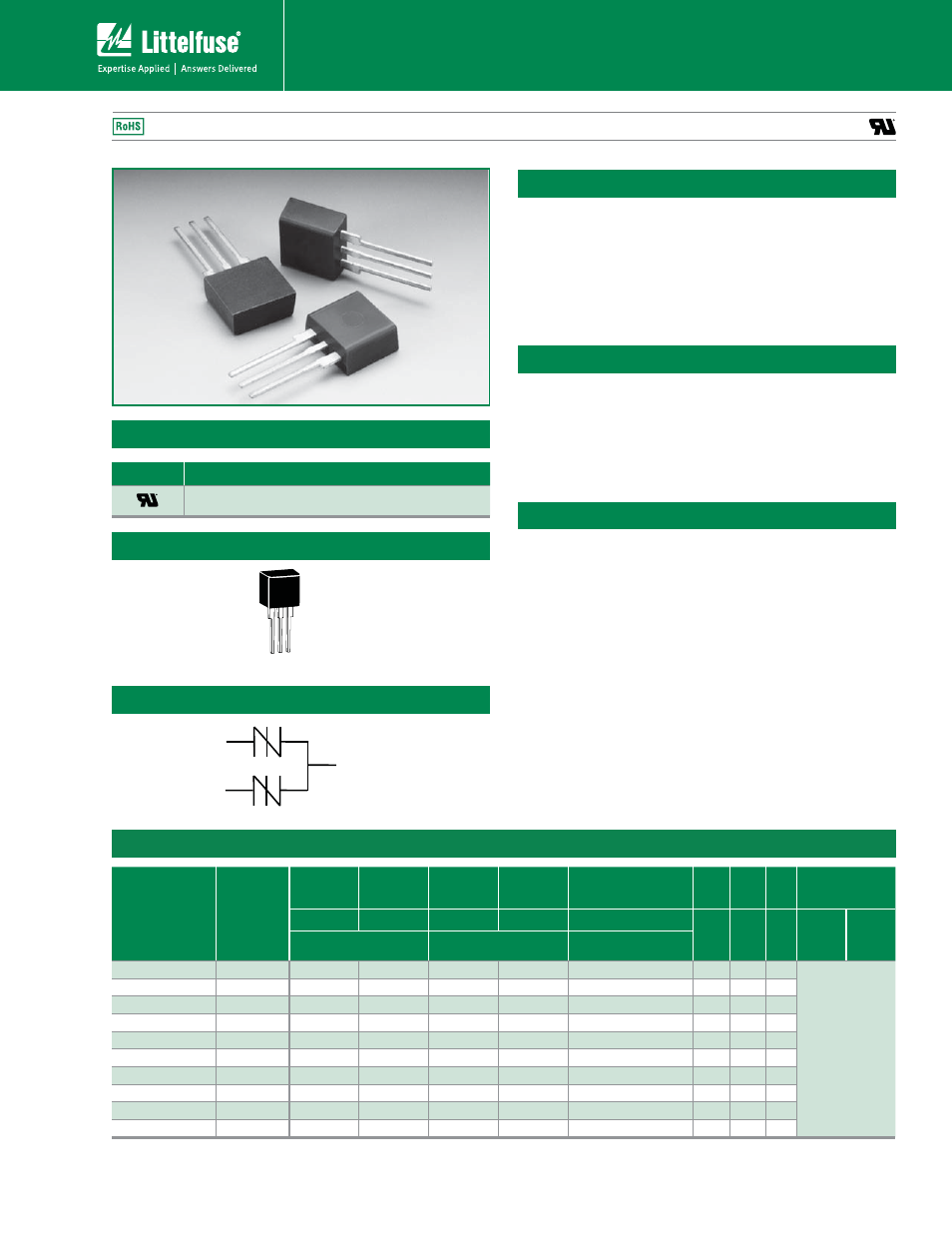

SIDACtor ® Protection Thyristors
166
Revised: February 22, 2011
© 2011 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com for current information.
Baseband Protection (Voice-DS1)
SIDACtor ® Series - Modified TO-220
Electrical Characteristics
The SIDACtor ® Series Modified TO-220 are designed to
protect baseband equipment from damaging overvoltage
transients.
The series provides a robust single port through-hole
solution that enables voice though DS-1 equipment to
comply with various global regulatory standards.
Description
Features and Benefits
t Low voltage overshoot
t Low on-state voltage
t Does not degrade with
use
t Modified TO-220 Package
t Fails short circuit when
surged in excess of
ratings
t Single-port protection
t Lead forms available
1
2
3
(T)
(R)
(G)
Agency Approvals
Agency Agency File Number
E133083
Schematic Symbol
Pinout Designation
PIN 1
PIN 2
PIN 3
Applicable Global Standards
t5*""
t5*"#
t*56,&OIBODFE
Level*
t*56,#BTJD-FWFM
t(3*OUFSCVJMEJOH
t(3*OUSBCVJMEJOH
t*&$
t:%5
t:%5
t:%5
*A/B-rated parts require series resistance
Part Number Marking
V
DRM
@l
DRM
=5μA
V
S
@100V/μs
V
DRM
@l
DRM
=5μA
V
S
@100V/μs
V
T
@I
T
=2.2 A
I
H
I
S
I
T
Capacitance
@1MHz, 2V bias
V min V max V min V max V max
mA
min
mA
max
A
max
pF min pf max
Pins 1-2, 3-2 Pins 1-3 Pins 1-2, 3-2
P0602AALxx P0602AA 25 40 50 80 4 50 800 2.2
See Capacitance
Values Table
P1402AALxx P1402AA 58 77 116 154 4 150 800 2.2
P1602AALxx P1602AA 65 95 130 190 4 150 800 2.2
P2202AALxx P2202AA 90 130 180 260 4 150 800 2.2
P2702AALxx P2702AA 120 160 240 320 4 150 800 2.2
P3002AALxx P3002AA 140 180 280 360 4 150 800 2.2
P3602AALxx P3602AA 170 220 340 440 4 150 800 2.2
P4202AALxx P4202AA 190 250 380 500 4 150 800 2.2
P4802AALxx P4802AA 220 300 440 600 4 150 800 2.2
P6002AALxx P6002AA 275 350 550 700 4 150 800 2.2
Table continues on next page.
