TVS Diode Arrays
(SPA ™ Family of Products)
Revision: March 20, 2012
SPLV2.8-4 Series
Lightning Surge Protection - SPLV2.8-4 Series
Ordering Information
Part Number Package Marking Min. Order Qty.
SPLV2.8-4BTG SOIC-8 U2.8-4 2500
Part Numbering System Part Marking System
SP LV2.8 B T G
Series
Package
B = SOIC-8
No. of channels
T= Tape & Reel
-4
G= Green
Silicon Protection
Array (SPA
TM )
Family of
TVS Diode Arrays
U2.8-4
U 2.8
Product Series
U = SPLV2.8
Voltage Level
-4
No. of channels

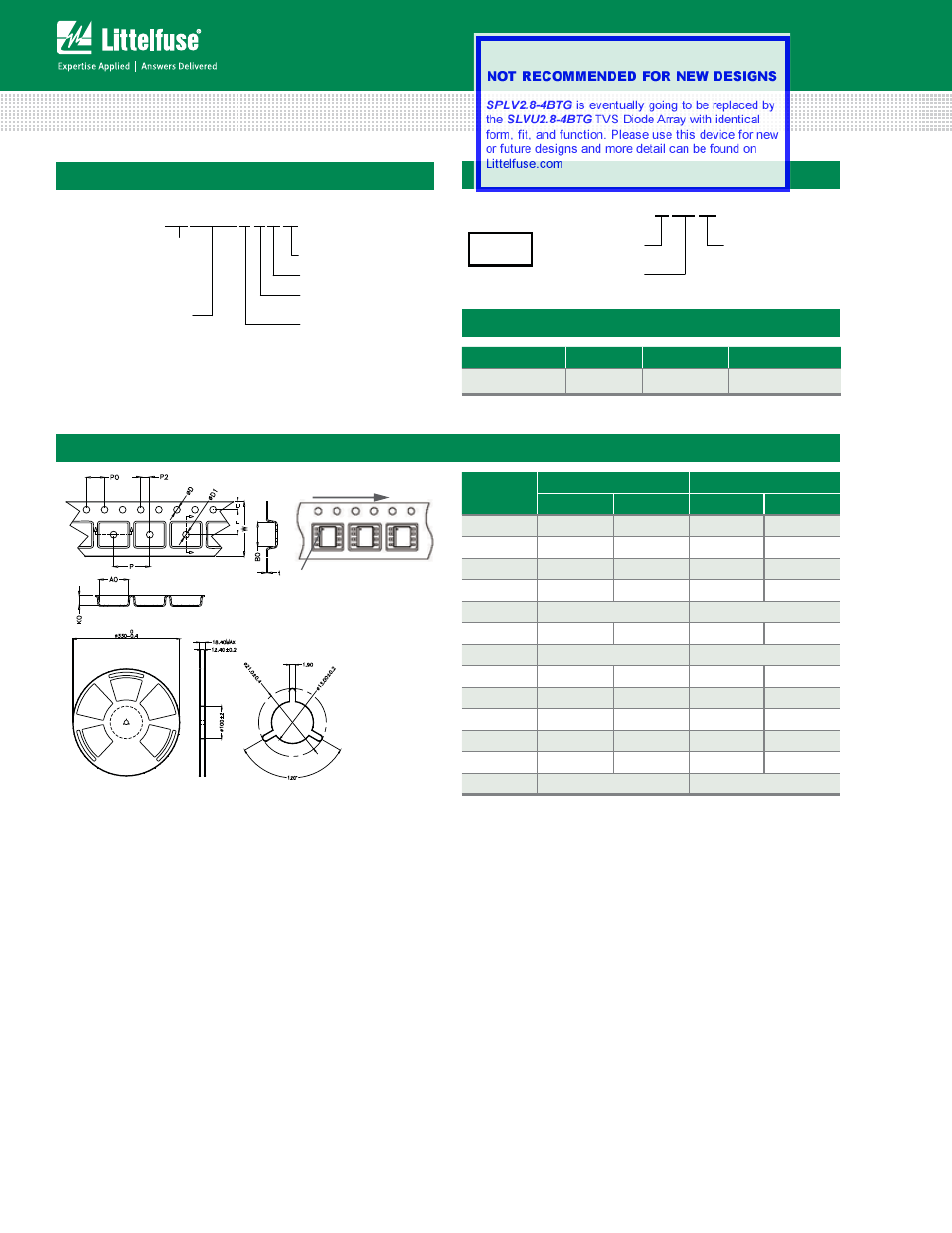

Embossed Carrier Tape & Reel Specification — SOIC Package
User Feeding Direction
Pin 1 Location
Symbol
Millimetres Inches
Min Max Min Max
E 1.65 1.85 0.065 0.073
F 5.4 5.6 0.213 0.22
P2 1.95 2.05 0.077 0.081
D 1.5 1.6 0.059 0.063
D1 1.50 Min 0.059 Min
P0 3.9 4.1 0.154 0.161
10P0 40.0 +/- 0.20 1.574 +/- 0.008
W 11.9 12.1 0.468 0.476
P 7.9 8.1 0.311 0.319
A0 6.3 6.5 0.248 0.256
B0 5.1 5.3 0.2 0.209
K0 2 2.2 0.079 0.087
t 0.30 +/- 0.05 0.012 +/- 0.002
