SPLV2.8-4 Series
SPL
V2.8-4
Lightning Surge Protection - SPLV2.8-4 Series
Time
T
emperature
T
P
T
L
T
S(max)
T
S(min)
25
t
P
t
L
t
S
time to peak temperature
Preheat Preheat
Ramp-up Ramp-up
Ramp-down Ramp-do
Critical Zone
T
L to T P
Critical Zone
T
L to T P
Reflow Condition Pb – Free assembly
Pre Heat
- Temperature Min (T
s(min)
) 150°C
- Temperature Max (T
s(max)
) 200°C
- Time (min to max) (t
s
) 60 – 180 secs
Average ramp up rate (Liquidus) Temp
(T
L
) to peak
5°C/second max
T
S(max)
to T
L
- Ramp-up Rate 5°C/second max
Reflow
- Temperature (T
L
) (Liquidus) 217°C
- Temperature (t
L
) 60 – 150 seconds
Peak Temperature (T
P
) 260 +0/-5 °C
Time within 5°C of actual peak
Temperature (t
p
)
20 – 40 seconds
Ramp-down Rate 5°C/second max
Time 25°C to peak Temperature (T
P
) 8 minutes Max.
Do not exceed 260°C
Soldering Parameters

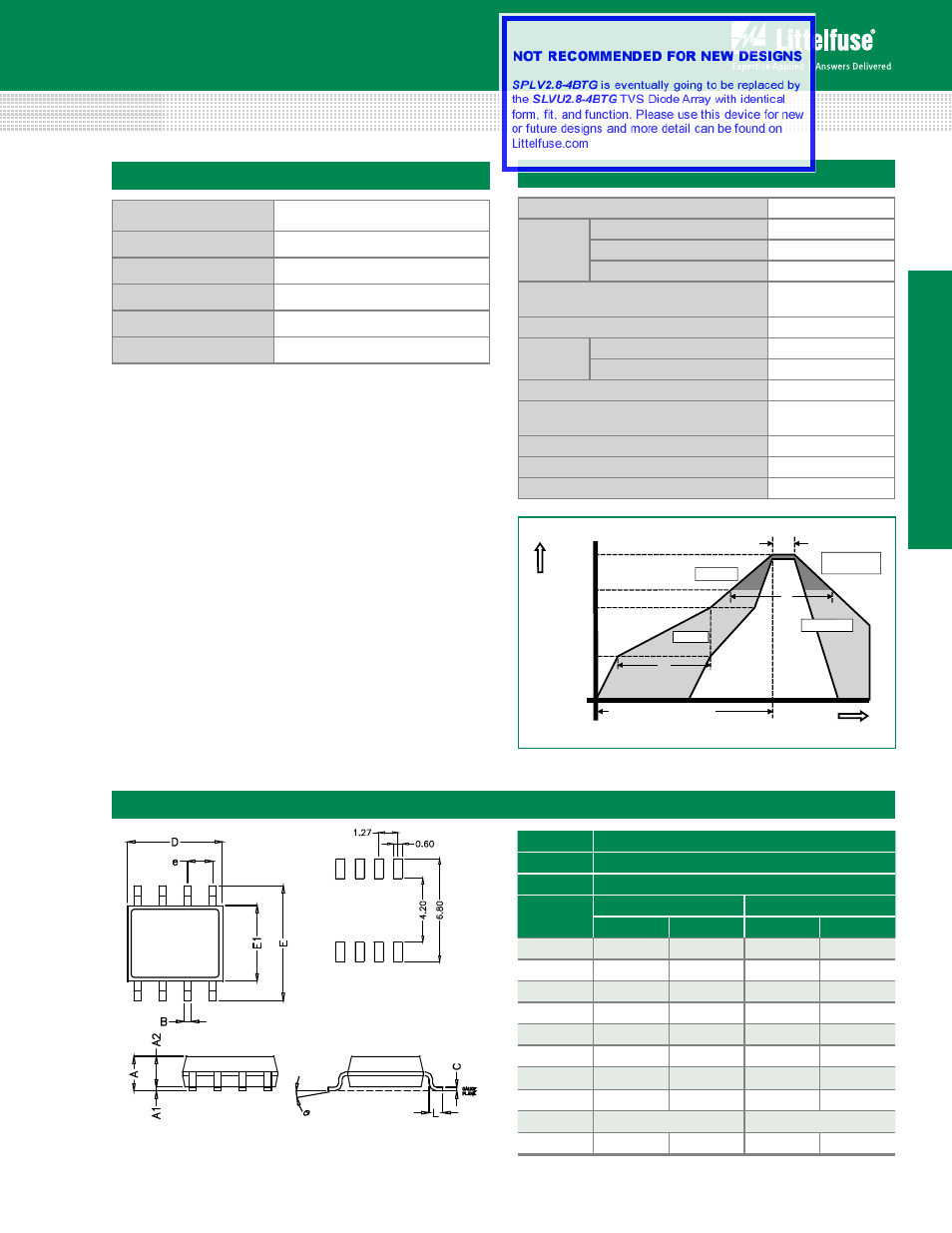

Package Dimensions — Mechanical Drawings and Recommended Solder Pad Outline
Package SOIC
Pins 8
JEDEC MS-012
Millimetres Inches
Min Max Min Max
A 1.35 1.75 0.053 0.069
A1 0.10 0.25 0.004 0.010
A2 1.25 1.65 0.050 0.065
B 0.31 0.51 0.012 0.020
c 0.17 0.25 0.007 0.010
D 4.80 5.00 0.189 0.197
E 5.80 6.20 0.228 0.244
E1 3.80 4.00 0.150 0.157
e 1.27 BSC 0.050 BSC
L 0.40 1.27 0.016 0.050
o
Recommended
Soldering Pad Outline
(Reference Only)
F L
Product Characteristics
Lead Plating Matte Tin
Lead Material Copper Alloy
Lead Coplanarity 0.0004 inches (0.102mm)
Substitute Material Silicon
Body Material Molded Epoxy
Flammability UL 94 V-0
Notes :
1. All dimensions are in millimeters
2. Dimensions include solder plating.
3. Dimensions are exclusive of mold flash & metal burr.
4. Blo is facing up for mold and facing down for trim/form, i.e. reverse trim/form.
5. Package surface matte finish VDI 11-13.
