SIDACtor
® Protection Thyristors
© 2010 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com for current information.
Broadband Optimized ™ Protection
Balance MC
T
O-220 S
eries

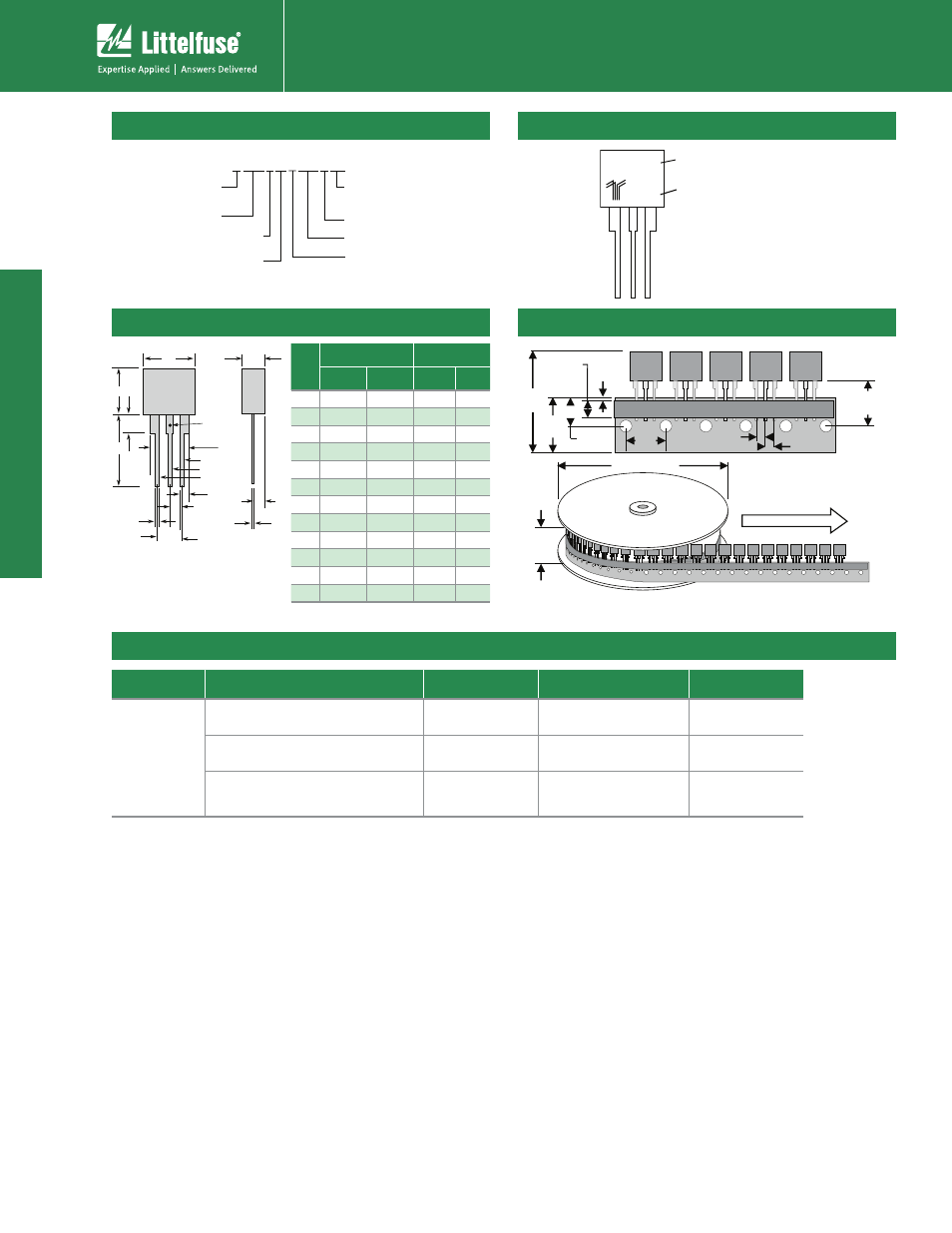

Part Marking
xxxxx
XXXXXXXXX Part Marking Code
(Refer to Electrical Characteristics Table)
Date Code
Packing Options
Package Type Description Quantity Added Suffix Industry Standard
A
Modified TO-220
Tape and Reel Pack
700 RP EIA-468-B
Modified TO-220
Bulk Pack
500 N/A N/A
Modified TO-220, Type 60 Lead Form
Bulk Pack
500
60
(special order item,
contact factory for details)
N/A
Part Numbering
CONSTRUCTION VARIABLE
PACKING OPTIONS
I
PP
RATING
RoHS COMPLIANT
TYPE
P = SIDACtor
P MC L xx
MEDIAN VOLTAGE
PACKAGE TYPE
xxx 3 A C
MC Series
Blank, RP or 60 --
for Type 60 orders, contact factory
Tape and Reel Specification — Modified TO-220
1.626
(41.15)
0.720
(18.29) 0.360
(9.14)
0.240
(6.10)
0.019
(0.5)
0.750 ± 0.010
(19.05 ± 0.25)
0.500
(12.7) 0.100
(2.54)
0.100
(2.54)
14.173 (360.0)
Dimensions are in inches
(and millimeters).
1.968
(50.0)
Direction of Feed
Dimensions - Modified TO-220
D
F
P G
A O
Temperature
Measurement
Point
PIN 3
PIN 2
PIN 1
J
H
L
K
M
N
The modified TO-220 package is designed to
meet mechanical standards as set forth in
JEDEC publication number 95.
Inches Millimeters
Min Max Min Max
A 0.400 0.410 10.16 10.42
D 0.360 0.375 9.14 9.53
F 0.110 0.130 2.80 3.30
G 0.540 0.575 13.71 14.61
H 0.025 0.035 0.63 0.89
J 0.195 0.205 4.95 5.21
K 0.095 0.105 2.41 2.67
L 0.060 0.075 1.52 1.90
M 0.070 0.085 1.78 2.16
N 0.018 0.024 0.46 0.61
O 0.178 0.188 4.52 4.78
P 0.290 0.310 7.37 7.87
