SIDACtor

®

Protection Thyristors

4

Revised: August 6, 2013

© 2013 Littelfuse, Inc.

Specifications are subject to change without notice.

Please refer to www.littelfuse.com for current information.

Teccor

®

brand SIDACtor

®

DSL Protection Devices

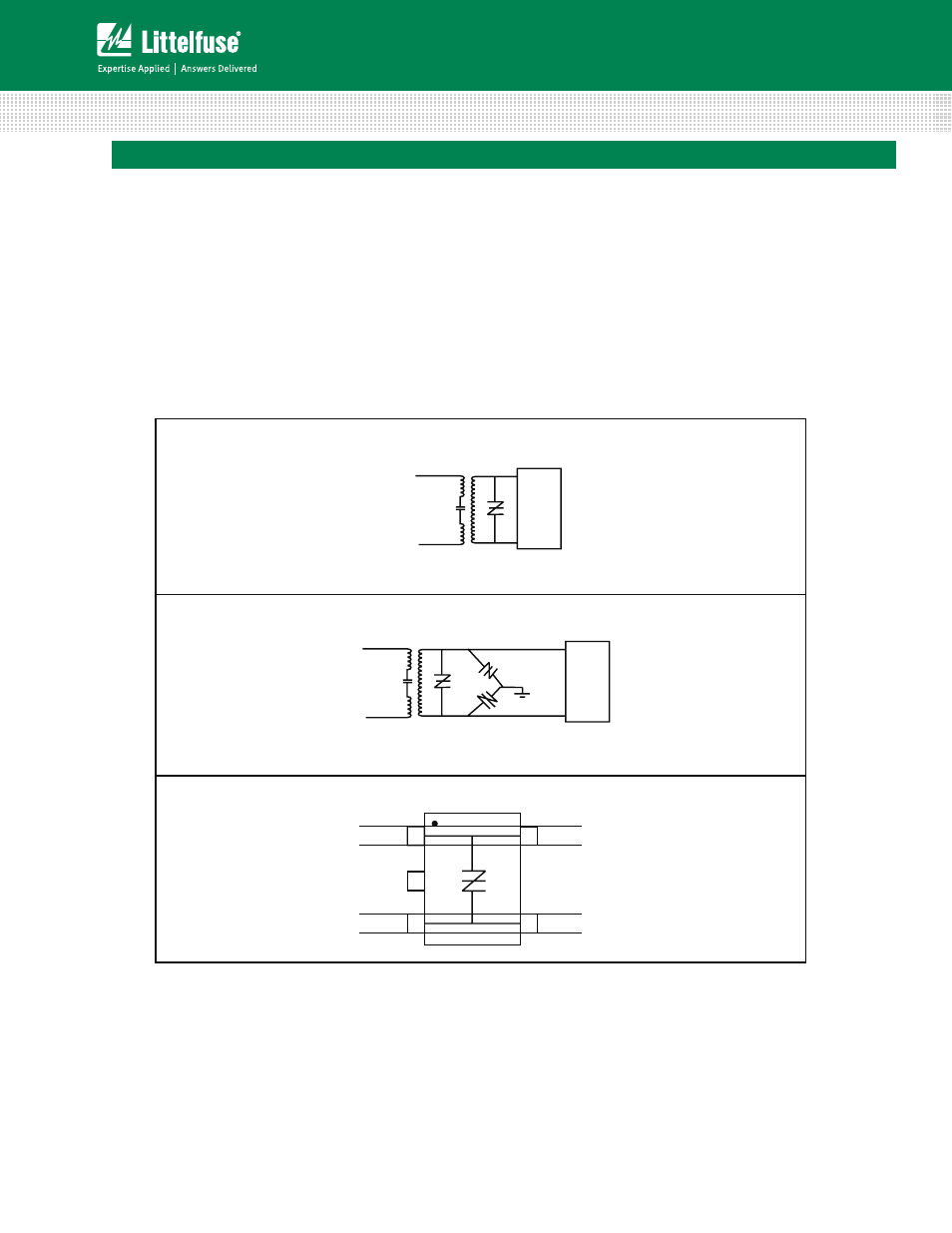

SDP-xxx Application example

The following schematics show alternate protection solutions
for a typical DSL interface that connects to outside wiring.
This surface mount SOT23-5 chip-side solution provides a
minimum footprint solution appropriate for high density card
designs. The SDP-xxx0T023 will protect the interface from
lightning induced surges on the chip-side of the coupling
transformer. This tertiary protector may be preceded by line-
side protection such as the TeleLink over-current protector

and the SDP3500Q38CB overvoltage protector. GDTs may
also be used on the line side of the coupling transformer. The
flow-through design of the SOT23-5 package is illustrated
below. If the inter winding capacitance of the transformer is
allowing some common mode events to get coupled across,
then the SDP-xxx0T023 can be placed in a three chip mode,
as shown below for additional chip-side protection.

NC

PCBTrace

PCBTrace

(3)SDP-018

Ring

Tip

Ring

Tip

DSL driver chipset

DSL driver chipset

SDP-018
