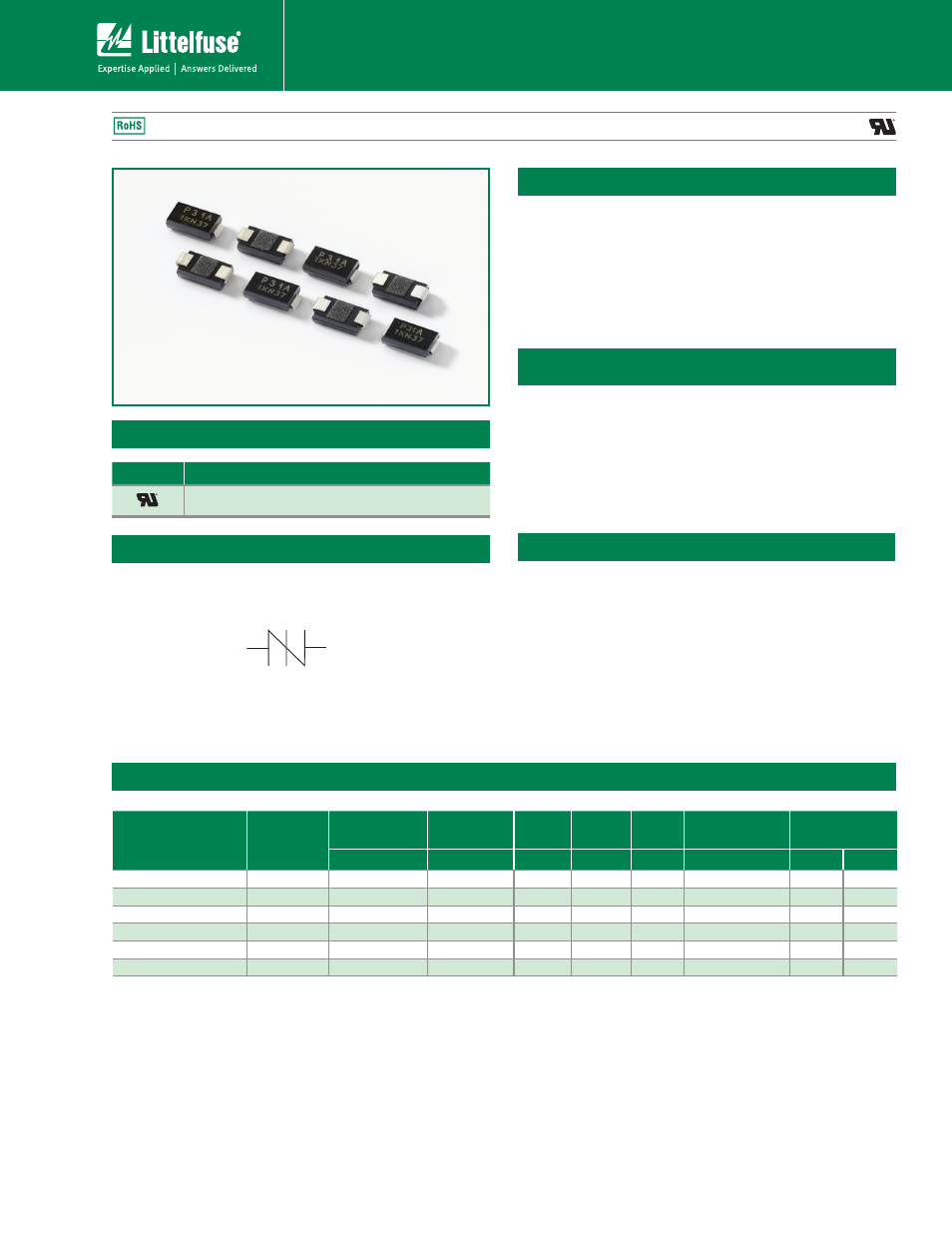

Littelfuse SIDACtor Series SMA - Manual

SIDACtor ® Protection Thyristors
1
Revised: March 2, 2012
© 2012 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com for current information.
Baseband Protection (Voice-DS1)
Description
SIDACtor ® Series - SMA
SIDACtor ® SMA Series are designed to protect
baseband equipment such as phones, faxes, modems,
line cards, CPE and DSL from damaging overvoltage
transients.
The series provides a surface mount solution that
enables equipment to comply with global regulatory
standards.
Electrical Characteristics
Features and Benefits
• Low voltage overshoot
• Low on-state voltage
• Does not degrade
surge capability after
multiple surge events
within limit.
• Fails short circuit when
surged in excess of
ratings
• Low capacitance
Agency Approvals
Agency Agency File Number
E133080
Schematic Symbol Applicable Global Standards
• TIA-968-A*
• TIA-968-B*
• ITU K.20/21 Enhanced
Level*
• ITU K.20/21 Basic Level
• GR 1089 Inter-building*
• GR 1089 Intra-building
• IEC 61000-4-5*
• YD/T 1082
• YD/T 993
• YD/T 950
Notes:
- Absolute maximum ratings measured at T
A
= 25ºC (unless otherwise noted).
- Devices are bi-directional (unless otherwise noted).
- Parts with “*” are under development
* Line impedance required to pass operationally
Part Number Marking
V
DRM
@l
DRM
=5µA
V
S
@100V/µs
I
H
I
S
I
T
V
T
@I
T
=2.2 Amps
Capacitance
@1MHz, 2V bias
V min V max mA min mA max A max V max pF min pF max
P0080S1ALRP P-8A 6 25 50 800 2.2 4 25 35
P1800S1ALRP* P18A 170 220 150 800 2.2 4 15 50
P2300S1ALRP* P23A 190 260 150 800 2.2 4 15 50
P2600S1ALRP* P26A 220 300 150 800 2.2 4 15 50
P3100S1ALRP P31A 275 350 150 800 2.2 4 15 50
P3500S1ALRP* P35A 320 400 150 800 2.2 4 15 50
