Cartridge and Axial Lead Fuses
©2009 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: February 18, 2009
BLN Series
Fibre Body Fast-Acting Type > BLN Series
.
Please refer to www.littelfuse.com/series/BLN.html for current information.

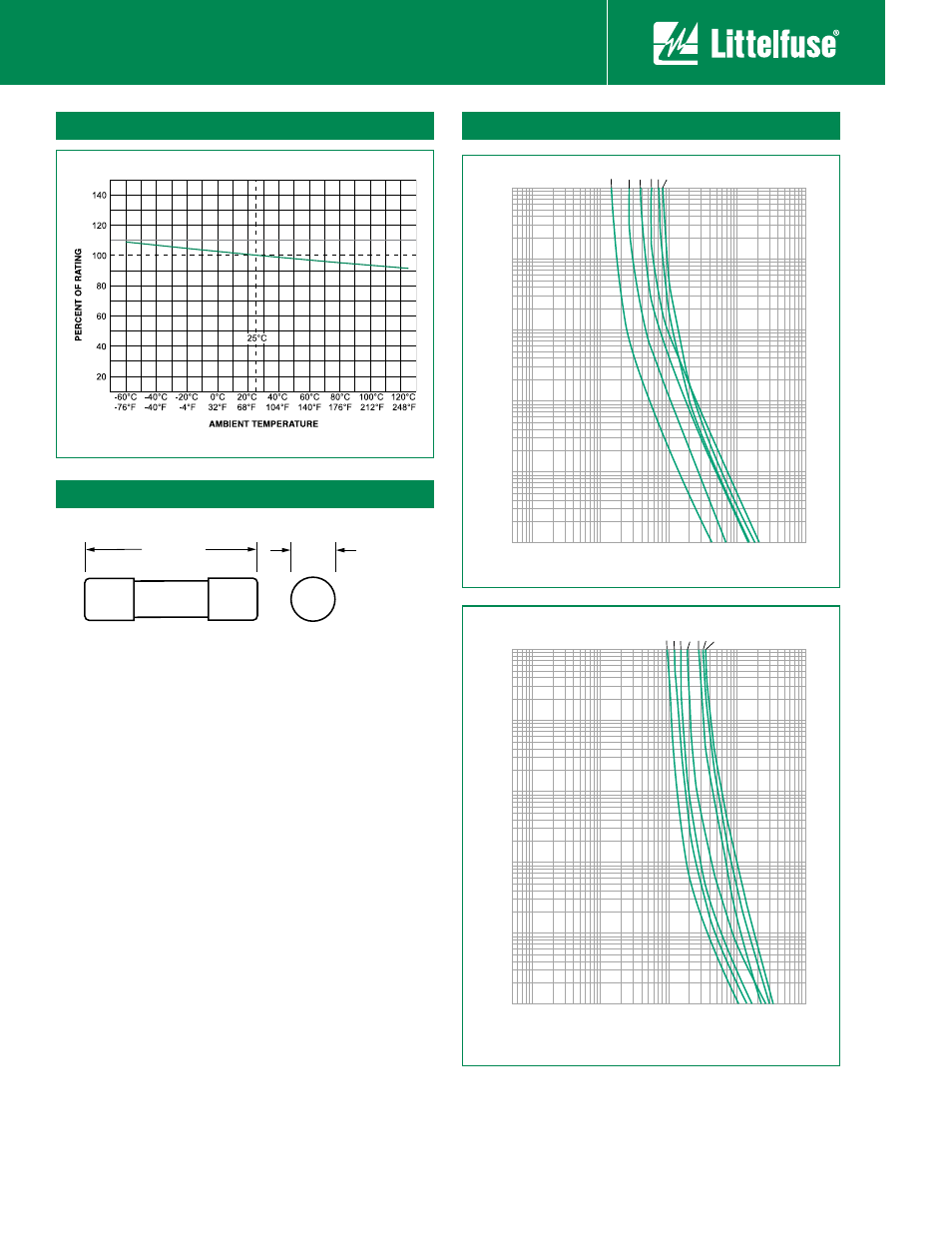

Average Time Current Curves
Temperature Rerating Curve
38.1
(1.50")
10.31
(.406")
Dimensions
1000
100
10
1
0.1
0.01
10
100
1000
0.1
1
TIME IN SECONDS
CURRENT IN AMPERES
1A
5A
4A
3A
2A
6A
1000
100
10
1
0.1
0.01
10
100
1000
0.1
1
TIME IN SECONDS
CURRENT IN AMPERES
8A 9A 10A 15A 20
A
25
A
30A
