POLYFUSE ® Resettable PTCs
© 2010 Littelfuse, Inc
600R Series
Radial Leaded > 600R Series
Specifications are subject to change without notice.
Please refer to www.littelfuse.com/series/600R.html for current information.
60
0R S
eries

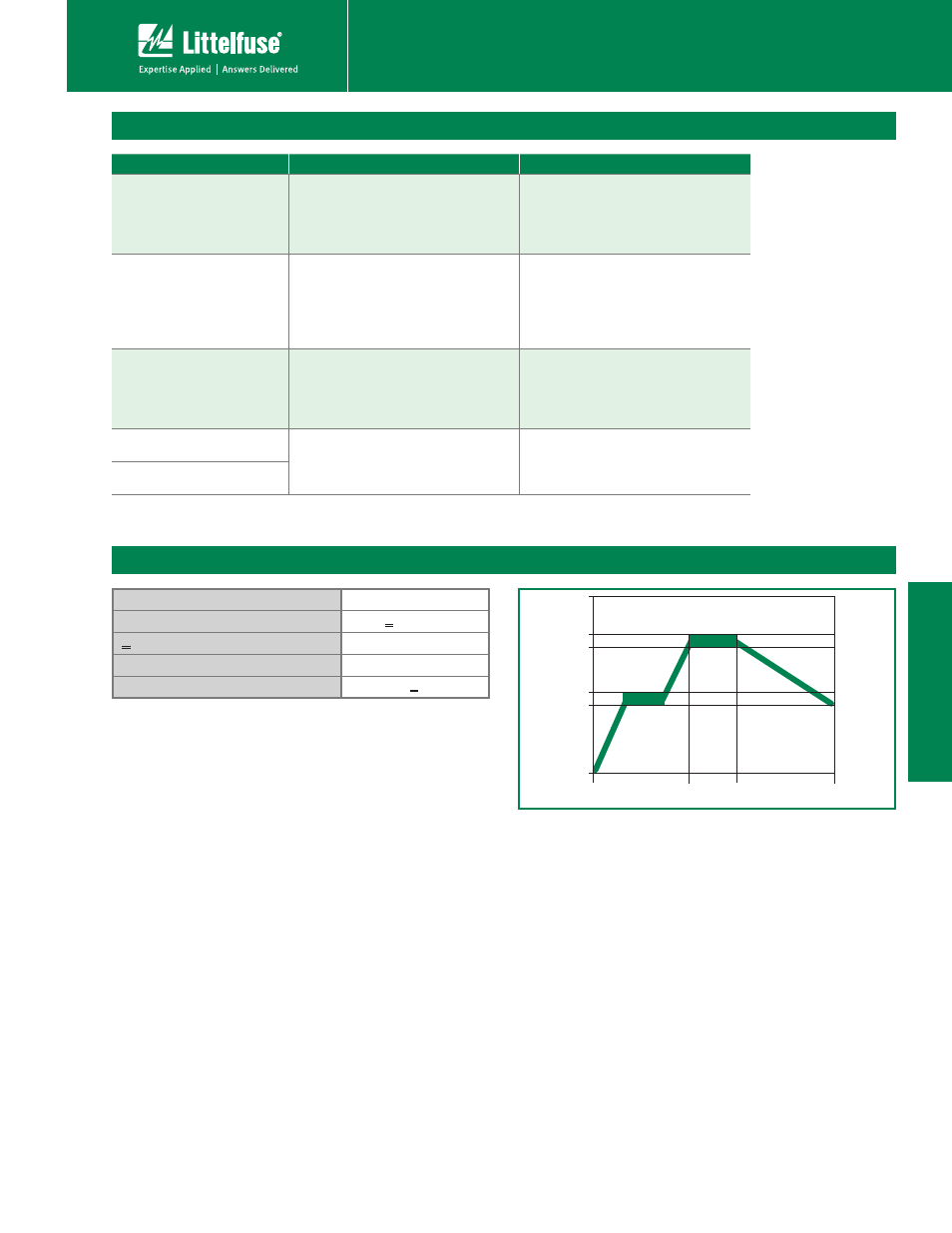

Soldering Parameters - Wave Soldering
Condition Wave Soldering
Peak Temp/ Duration Time 260°C 5 Sec
> 220°C 2 Sec ~ 20 Sec
Preheat 140°C~ 180°C 180 Sec ~ 210 Sec
Storage Condition 0°C~35°C, 70%RH
t3FDPNNFOEFETPMEFSJOHNFUIPETIFBUFMFNFOUPWFOPS
N
2
environment for lead–free
t%FWJDFTBSFEFTJHOFEUPCFXBWFTPMEFSFEUPUIFCPUUPN
side of the board.
t%FWJDFTDBOCFDMFBOFEVTJOHTUBOEBSEJOEVTUSZNFUIPET
and solvents.
t5IJTQSPmMFDBOCFVTFEGPSMFBEGSFFEFWJDF
Note: If soldering temperatures exceed the recommended
profile, devices may not meet the performance
requirements.
Preheating
160
190
220
260
0
2 to 5
Temperature (
°C)
Soldering Cooling
20-30 180 to 210
Time(s)
Protection Application Guide
Region/Specification Application Device Selection
North America
Telcordia GR-1089
*Access network equipment
Remote terminal
Repeaters
WAN equipment
Cross -connect
600R150
600R160
North America
TIA-968-A, UL60950
Customer and IT equipment
Analog modems
ADSL, XDSL modems
Phone sets, PBX systems
Internet appliances
POS terminals
600R150
600R160
North America
Telcordia GR-1089
Central Office
POTS/ISDN linecards
T1/E1/J1 linecards
ADSL/VDSL splitters
CSU/DSU
600R150
600R160
North America
Telcordia GR-1089
*Intrabuilding communication systems
LAN, VOIP cards
Local loop handsets
600R150
600R160
South America/Asia/Europe
ITU K.20 and K.21
*Resistance binned parts are recommended
