TVS Diode Arrays
(SPA
®
Diodes)
Revision: November 29, 2012
SP6003 Series
SP60
03

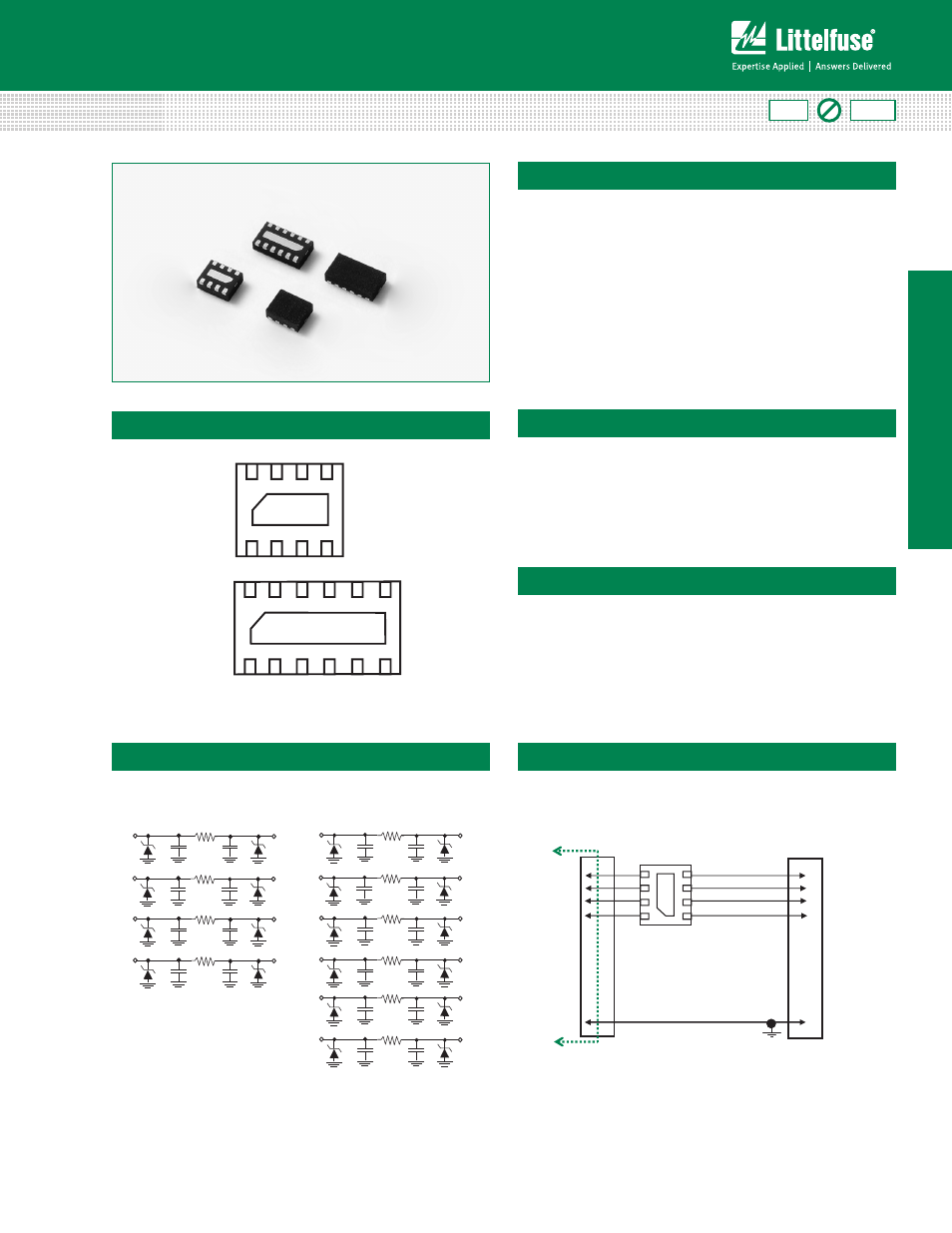

ESD and EMI Filter Devices - SP6003 Series
Description
Applications
Littelfuse’s SP6003 integrates 4 and 6 EMI filters (C-R-C)
into a small, low-profile µDFN package with each filter
providing greater than -20dB attenuation at 1GHz.
Additionally, each I/O is capable of shunting ±12kV ESD
strikes (IEC61000-4-2, contact discharge) away from
sensitive electronic components. The performance of this
small, slim design makes it extremely suitable for mobile
handsets, PDA’s, and notebook computers.
Features
• EMI filtering of
frequencies from
800MHz to 3GHz
• Greater than -20dB
attenuation (TYP) at 1GHz
• ESD, IEC61000-4-2,
±12kV contact, ±15kV air
• Small, low-profile μDFN
(JEDEC MO-229) package
(TYP 0.5mm height)
• Keypad Interface for
Portable Electronics
• LCD and Camera Display
Interfaces for Handsets
• Connector Interfaces for
Handsets
• PDA’s
• Digital Cameras
• Notebook Computers
Pinout
5
8
1
4
1
6
7
12
GND
GND
SP6003-04UTG-1
SP6003-06UTG-1
µDFN-08
µDFN-12
Functional Block Diagram
Cd Cd
1
8
Cd Cd
2
7
Cd Cd
3
6
Cd Cd
4
5
Cd Cd
1
12
Cd Cd
2
11
Cd Cd
3
10
Cd Cd
4
9
Cd Cd
5
8
Cd Cd
6
7
SP6003-04UTG-1
SP6003-06UTG-1
RoHS
Pb
GREEN
Application Example
Dx: SP6003-04 Silicon Protection Array
Signal
Ground
Outside World
SP6003-04UTG-1 (µDFN)
LCD Module
Controller
D1
D2
D3
D4
Input
5
8
1
4
GND
SP6003 Series 7pF EMI Filter Array with ESD Protection
