Teccor ® brand Thyristors
35 Amp Standard & 30 / 35 Amp Alternistor (High Commutation) Triacs
Qxx30xHx & Qxx35xx & Qxx35xHx Series

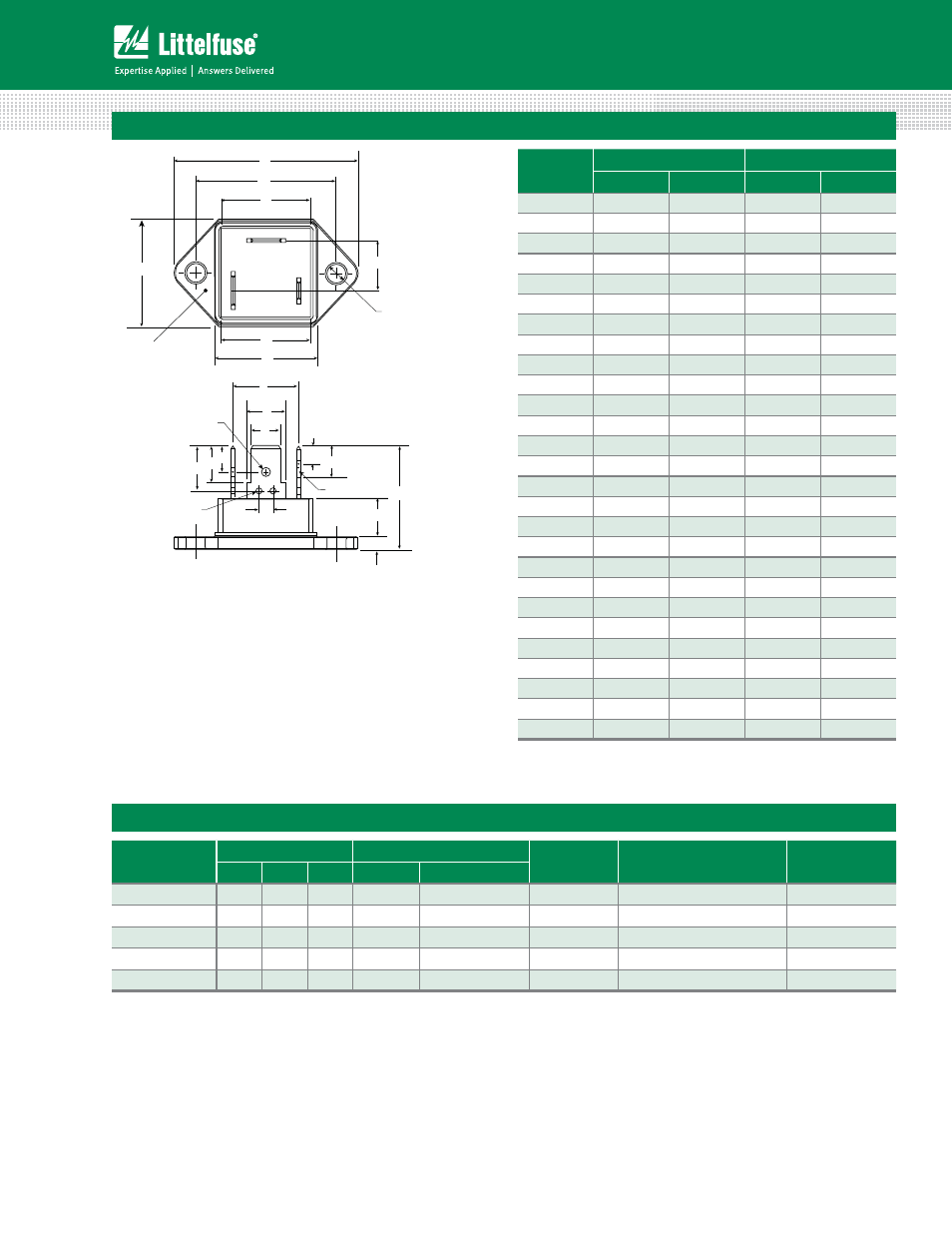

Dimensions — TO-3 Fastpak (P Package) — Isolated Mounting Tab
Dimension
Inches Millimeters
Min Max Min Max
A 1.531 1.543 38.90 39.20
B 1.177 1.185 29.90 30.10
C 0.843 0.850 21.40 21.60
D 0.780 0.795 19.80 20.20
E 0.783 0.791 19.90 20.10
F 0.874 0.906 22.20 23.00
G 0.161 0.169 4.10 4.30
H 0.386 0.465 9.80 11.80
I 0.508 0.587 12.90 14.90
J 0.079 0.087 2.00 2.20
K 0.047 0.055 1.20 1.40
L 0.307 0.319 7.80 8.10
M 0.372 0.396 9.45 10.05
N 0.043 0.059 1.10 1.50
O 0.315 0.331 8.00 8.40
P 0.098 0.106 2.50 2.70
Q 0.846 0.886 21.50 22.50
R 0.244 0.256 6.20 6.50
S 0.106 0.130 2.70 3.30
T(MT1) 0.321 0.329 8.15 8.35
T(MT2) 0.321 0.329 8.15 8.35
T(Gate) 0.220 0.228 5.60 5.80
U(MT1) 0.246 0.254 6.25 6.45
U(MT1) 0.246 0.254 6.25 6.45
U(Gate) 0.183 0.191 4.65 4.85
V 0.120 0.130 3.05 3.30
W 0.175 0.185 4.45 4.70
MT2
Gate MT1
Φ G
5 - Φ N
Φ J (MT1, MT2)
F
H
E
C
B
A
D
Q
O
R
S
P
U
T
I
M L
T
C
Measuring Point
W V
Φ K (Gate)
Maximum torque to be applied to mounting tab is 8 in-lbs
(0.904 Nm)
Product Selector
Part Number
Voltage Gate Sensitivity Quadrants
I
T(RMS)
Type Package
400V 600V 800V I – II – III IV
Qxx35P5 X X 50 mA 120 mA (TYP) 35A Standard Triac FASTPACK
Qxx35RH5 X X 50 mA 35A Alternistor Triac TO-220R
Qxx35NH5 X X 50 mA 35A Alternistor Triac TO-263 D 2 -PAK
Qxx30LH5 X X 50 mA 30A Alternistor Triac TO-220L
Qxx30LH3 X X 25 mA 30A Alternistor Triac TO-220L
Note: xx = Voltage
