Littelfuse SP3030 Series User Manual
Tvs diode arrays, Low capacitance esd protection - sp3030 series, Diodes)
© 2013 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 11/22/13
TVS Diode Arrays
(SPA
®
Diodes)

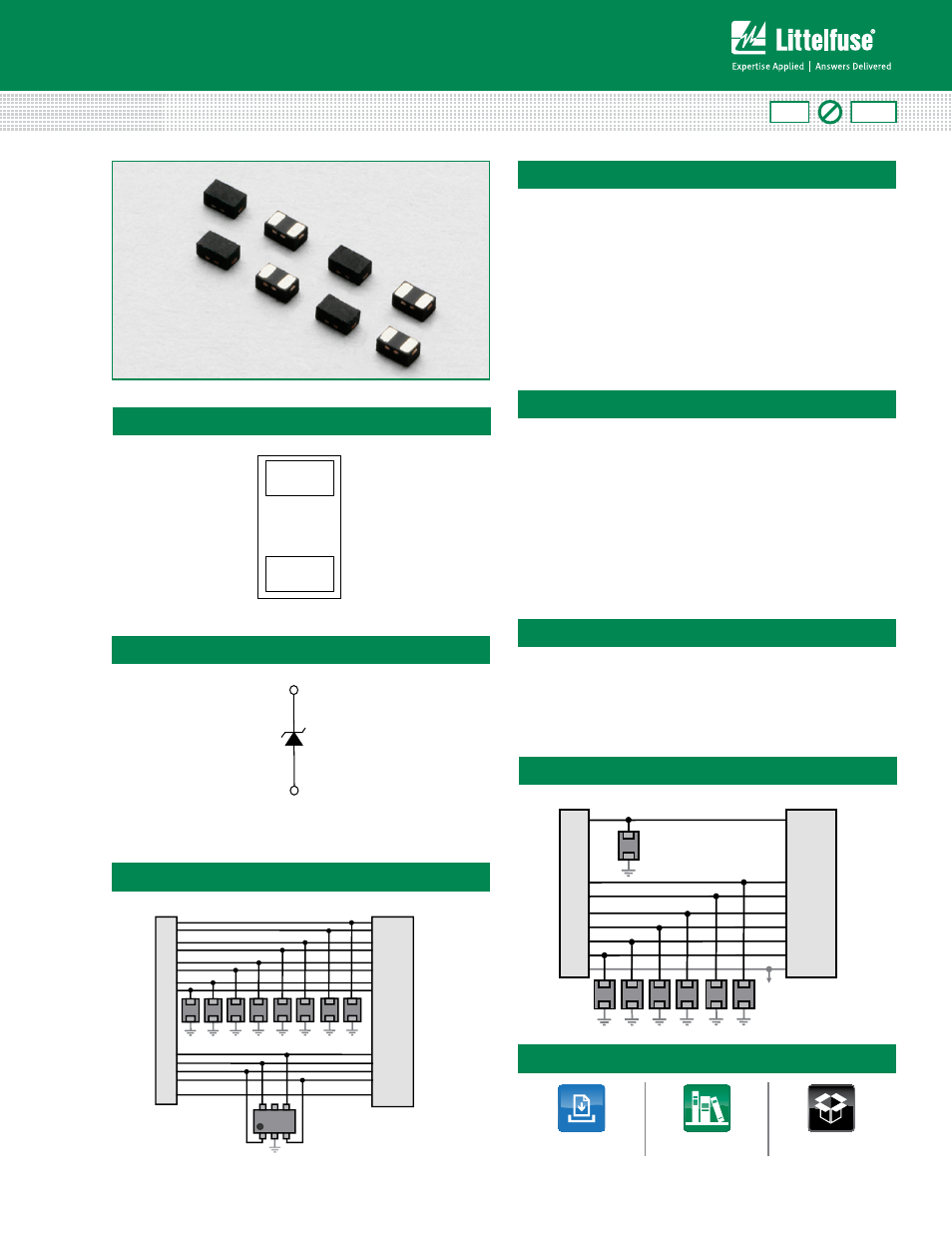

Low Capacitance ESD Protection - SP3030 Series
Description
Features
Applications
The SP3030 includes low capacitance rail to rail diodes
with an additional Zener diode to provide protection for
electronic equipment that may experience destructive
electrostatic discharges (ESD). These robust diodes
can safely absorb repetitive ESD strikes above the
maximum level specified in the IEC61000-4-2 international
standard (±20kV contact discharge) without performance
degradation. The low loading capacitance makes it ideal
for protecting high speed data lines such as HDMI, DVI,
USB2.0, USB3.0 and eSATA.
• ESD protection of ±20kV
contact discharge,
±30kV air discharge,
(IEC61000-4-2)
• EFT protection,
IEC61000-4-4, 40A
(t
p
=5/50ns)
• Lightning Protection,
IEC61000-4-5, 3A
(t
p
=8/20µs)
• Low capacitance of 0.5pF
@ V
R
=0V
• Low leakage current of
0.1μA at 5V
• Small SOD882 packaging
helps save board space
• AEC-Q101 qualified
(SOD882 package)
• Tablets
• Ultrabook
• eReader
• Smart Phones
• Digital Cameras
• MP3/ PMP
• Set Top Boxes
• Portable Medical
Pinout
Functional Block Diagram
1
2
Life Support Note:
Not Intended for Use in Life Support or Life Saving Applications
The products shown herein are not designed for use in life sustaining or life saving
applications unless otherwise expressly indicated.
RoHS
Pb
GREEN
USB3.0 Application Example
SP3030 Series 0.5pF 20kV Unidirectional Discrete TVS
1
2
(AEC-Q101 qualified)
USB Port
USB Controller
Signal Ground
IC
*Packages are shown as transparent
SP1003
SP3030 (x6)
D+
D-
SSTX+
SSTX-
SSRX+
SSRX-
V
BUS
HDMI Application Example
HDMI
Port
HDMI
Chipset
D2+
D2-
*Packages are shown as transparent
CEC
SCL
IC
SP3030 (x8)
SP3002
D1+
D1-
D0+
D0-
CLK+
CLK-
HPD
PWR
SDA
Additional Information
