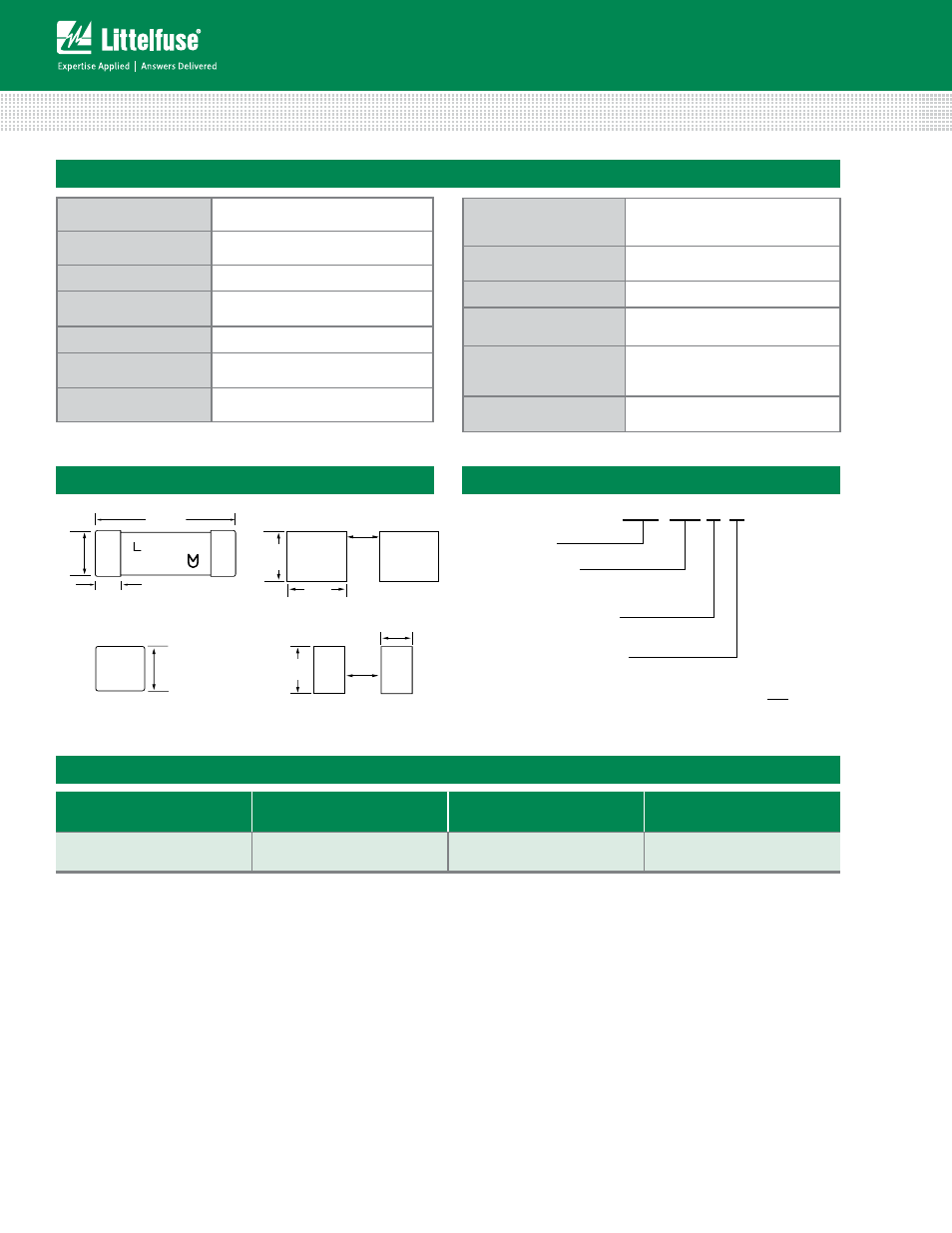

© 2013 Littelfuse, Inc.

Specifications are subject to change without notice.

Revised: 12/19/13

Surface Mount Fuses

NANO

> 250V UMF Time Lag > 465 Series

Materials

Body: High Performance Ceramic

Terminations: Silver plated brass.

Product Marketing

Brand, Ampere Rating, Voltage

Rating, UMF Logo

Operating Temperature –55

O

C to 125

O

C.

Moisture Sensitivity
Level

Level 1, J-STD-020C

Solderability

IEC60127-4

Insulation Resistance
(after opening

IEC 60127-4 (0.1Mohm min @

500VDC)

Shock

MIL-STD-202, Method 213, Test

Condition A

Thermal Shock

MIL-STD-202, Method 107,

Test Condition B , 5 cycles, –65

O

C

to 125°C

Mechanical Shock

MIL-STD-202, Method 213, Test
Condition A

Vibration

MIL-STD-202, Method 201 (10-55 Hz)

Moisture Resistance

MIL-STD-202, Method 106, 10 cycles

Salt Spray

MIL-STD-202, Method 101, Test
Condition B (48hrs)

Resistance to Soldering
Heat

IEC 60127-4

Product Characteristics

REFLOW SOLDER

F

2.8

(.11")

12.1

(.475")

4.5

(.177")

6.7

(.264")

6.8

(.264")

WAVE SOLDER

3.5

(.14")

AC250V

T500mAL

6.9

(.27")

5.6

(.22")

5.6

(.22")

4.5

(.177")

Height

END CAP

TOP VIEW

Dimensions

Packaging

Part Numbering System

packaging Option

packaging Specification

Quantity

Quantity &

packaging Code

24mm Tape and Reel

EIA RS-481-1 (IEC 286, part 3)

1500

DR

0465 .500 D R

SERIES

AMP Code*

qUANTITY Code

PACKAGING Code

Refer to Electrical

Characteristics table

D = 1500 pcs

R = Tape and Reel

*Example:
2.5 amp product is 046502.5DR
(0.5 amp product shown above).
