SIDACtor ® Protection Thyristors
179
Revised: February 22, 2011
© 2011 Littelfuse, Inc.
Specifications are subject to change without notice.
Please refer to www.littelfuse.com for current information.
Baseband Protection (Voice-DS1)

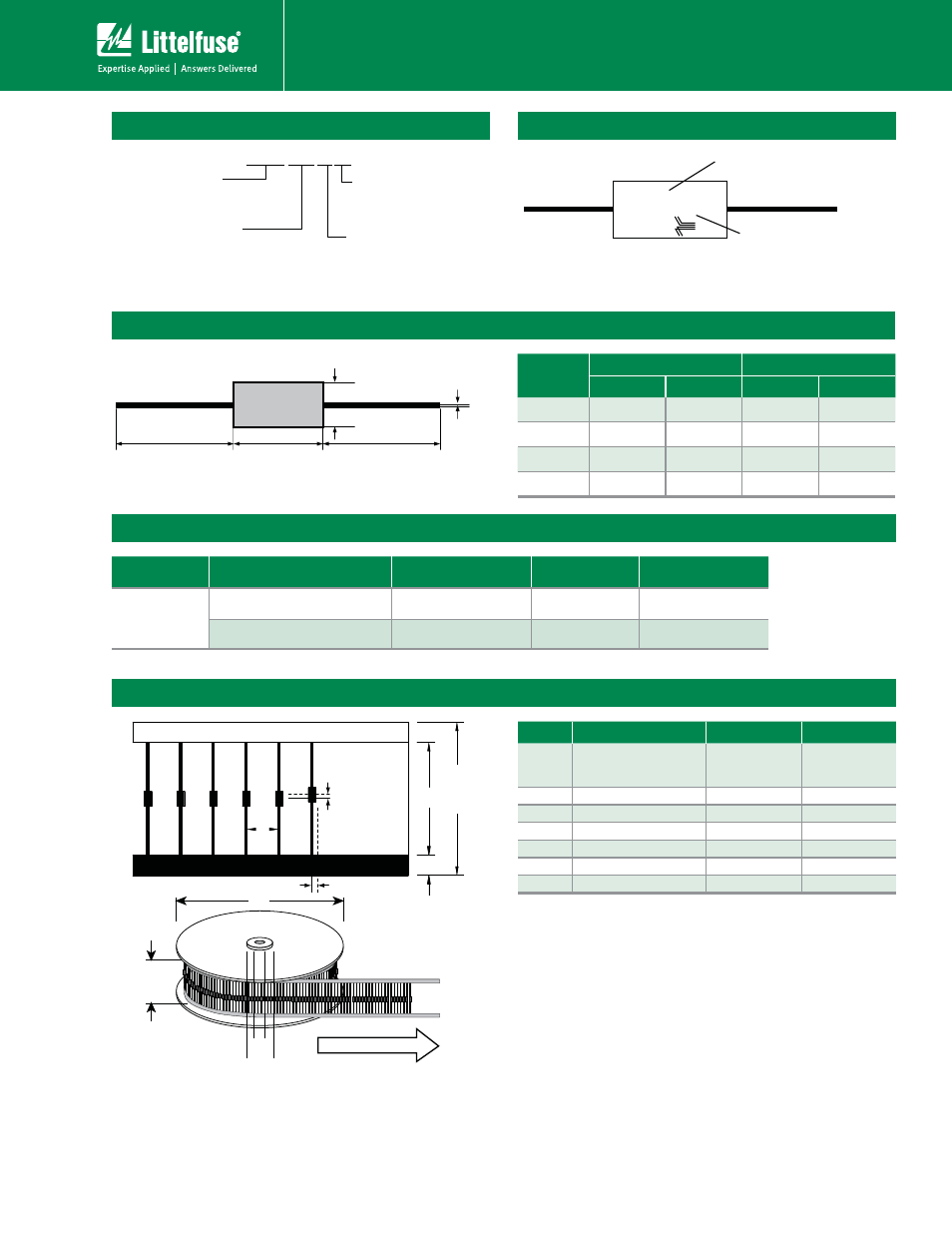

Packing Options
Package Type Description Packaging Quantity Added Suffix Industry Standard
T10A
DO-15 Tape and Reel Pack 1000 RP EIA-RS-296-D
DO-15 Bulk Pack 500 N/A N/A
Tape and Reel Specification— DO-15
Spacing
off center,
either side
0.039 (1.0)
B
C
A
D
E
recess depth max 0.75”
2.55
(64.8)
TYP
3.15
(80.0)
TYP
Dimensions
are in inches
(and millimeters).
Direction of Feed
G
F
Symbols Description Inches MM
A
Component Spacing
(lead to lead)
œw 5.08 ± 0.508
B Inner Tape Pitch œw 52.37 ± 1.498
C Tape Width w 6.35
D Max. Off Alignment w 1.219
E Reel Dimension w 330.2
F Max. Hub Recess w 76.19
G Max. Abor Hole w 17.27
Part Marking Part Numbering
MEDIAN VOLTAGE
PACKING OPTIONS
Blank: Bulk
RP: Reel Pack TYPE
T10A = SIDACtor T10A series
T10A xxx x xx
HOLDING CURRENT:
Blank: 150mA
B: 120mA
E: 180mA T1
0Axxxx
Part Marking Code
(Refer to Electrical Characteristics Table)
XXXXX
Date Code
Dimensions — DO-15
L L G
D
B
Dimension
Inches Millimeters
MIN MAX MIN MAX
B 0.028 0.034 0.711 0.864
D 0.12 0.14 3.048 3.556
G 0.235 0.27 5.969 6.858
L 1 25.4
