AC700-CUA Firmware Upgrade Module
Fastening Removal
NOTE 1
NOTE 1
NOTES:
1. THE RECOMMENDED TERMINAL TIGHTENING TORQUE IS 0.25 nM.
2. WHEN FASTENING THE MODULE IN THE END PRODUCT, MAKE SURE THAT THE ANYBUS MODULE IS PROPERLY
ALIGNED IN TO THE COMPACTFLASH SOCKET PRIOR TO APPLYING ANY FORCE. ROUGH HANDLING AND/OR
EXCESSIVE FORCE IN COMBINATIN WITH MISALIGNMENT MAY CAUSE MECHANICAL DAMAGE TO THE
ANYBUS-COMPACTCOM MODULE AND/OR THE END PRODUCT.

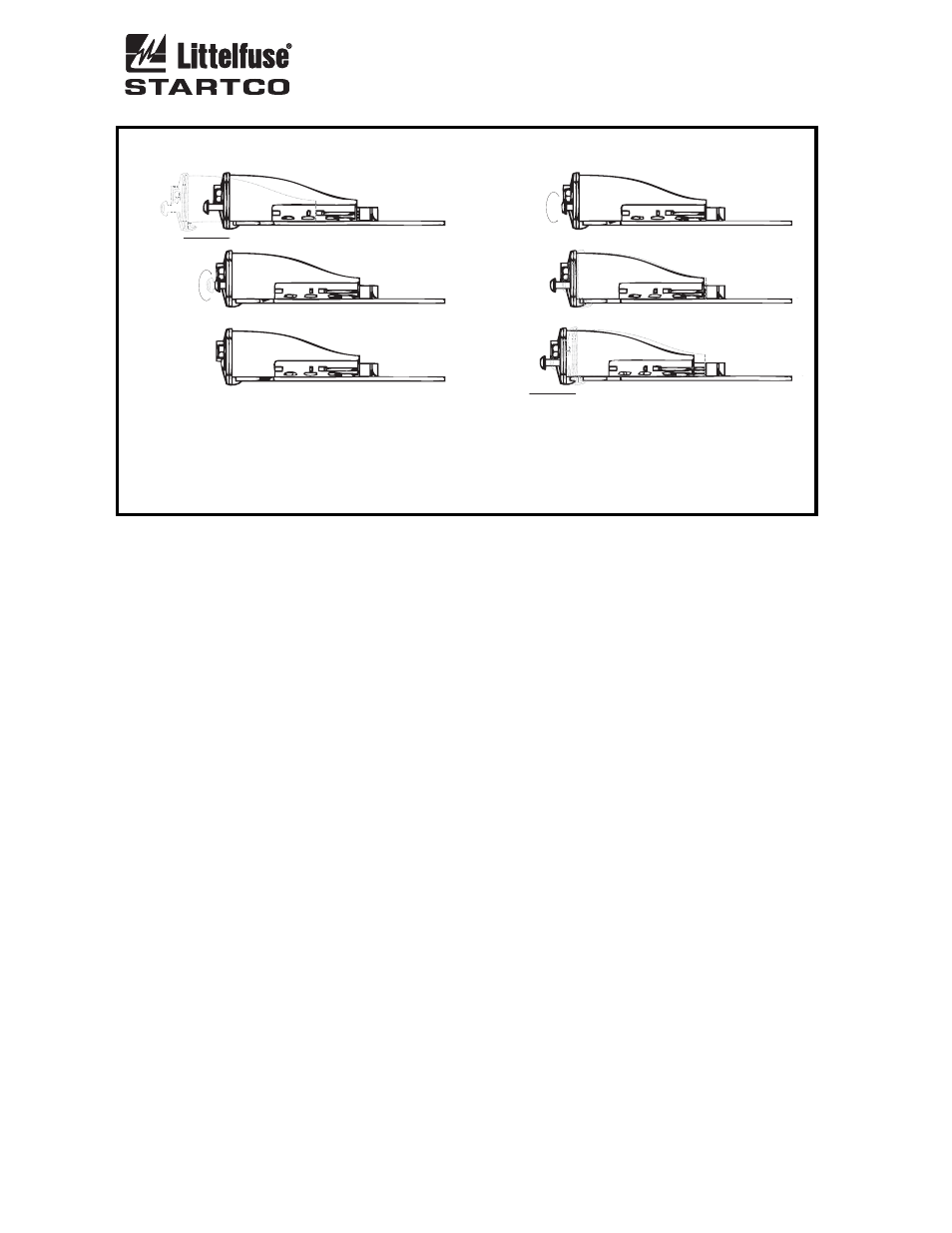

FIGURE 5. Anybus Communications Module Installation
3. T
ECHNICAL
S
PECIFICATIONS
3.1 F
IRMWARE
U
PGRADE
M
ODULE
Isolation:
Device to network:
Voltage: .............................2,500 Vrms
Distance: ............................7.62 mm
Computer Interface Terminals:
TIA-232 through RJ45 Connector,
Mini-USB
Dimensions:
Height: ........................................ 0.8 mm (0.03“)
Width: ......................................... 42.6 mm (1.68“)
Depth: ......................................... 72.2 mm (2.84”)
Shipping Weight ............................. 0.14 kg (0.3 lbs)
Environment:
Operating Temperature: ............. -40 to 60 C
Storage Temperature: ................. -55 to 80 C
Humidity: ................................... 85% Non-Condensing
3.2 C
OMMUNICATION
M
ODULE
Isolation:
Device to network:
Voltage: .....................................2,500 Vrms
Distance: ....................................2.5 mm
Terminals:
Dependent upon communication standard
Rev. 0 Page 6
AC700-CUA Firmware Upgrade Module
Dimensions:
Height: ........................................ 22.3 mm (0.88”)
Width: ......................................... 50.1 mm (1.97”)
Depth: ......................................... 51.8 mm (2.04”)
Shipping Weight ............................. 0.14 kg (0.3 lbs)
Environment:
Operating Temperature: ............. -40 to 60 C
Storage Temperature: ................. -40 to 85 C
Humidity: ................................... 85% Non-Condensing
Shock and Vibration:
Shock Test: ................................. Operating IEC 68-2-27 half-sine 30g, 11ms,
3 positive and 3 negative shocks in each of three
mutually-perpendicular directions.
Shock Test: ................................. Operating IEC 68-2-27 half-sine 50g, 11ms,
3 positive and 3 negative shocks in each of three
mutually-perpendicular directions.
Sinusodial Test: .......................... Operating IEC 68-2-6
10-500 Hz, 0.35 mm 5g, 1 oct/min., 10 double sweep
in each of three mutually-perpendicular directions.
4. O
RDERING
I
NFORMATION
AC700-CUA-
Adapter Type
0 – Firmware Upgrade
Module
3 – Ethernet/IP
Future Options
0 – No Options
5. W ARRANTY
The AC700-CUA Communications & Firmware Upgrade Modules are warranted to be
free from defects in material and workmanship for a period of five years from the date of
purchase.
Littelfuse Startco will (at Littelfuse Startco’s option) repair, replace, or refund the original
purchase price of an AC700-CUA that is determined by Littelfuse Startco to be defective if it
is returned to the factory, freight prepaid, within the warranty period. This warranty does not
apply to repairs required as a result of misuse, negligence, an accident, improper installation,
tampering, or insufficient care. Littelfuse Startco does not warrant products repaired or
modified by non-Littelfuse Startco personnel.
