Axial Lead & Cartridge Fuses
2AG > Fast-Acting > 208 Series
Product Characteristics

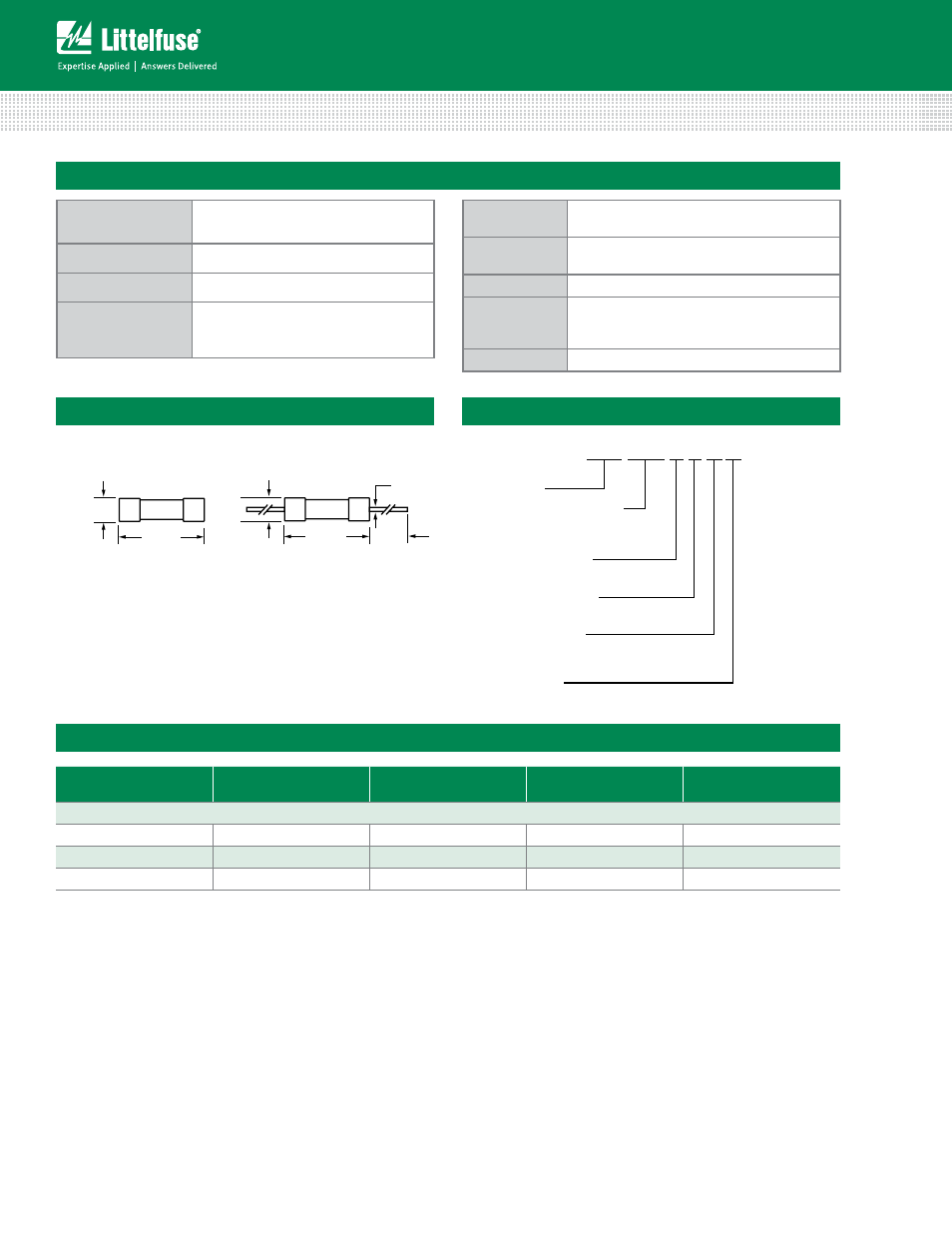

Dimensions
Materials
Body : Glass
Cap : Nickel–plated brass
Leads: Tin–plated Copper
Terminal Strength
MIL-STD-202G, Method 211A,
Test Condition A
Solderability
Reference IEC 60127 Second Edition
2003-01 Annex A
Product Marking
Cap1 : Brand logo, current and voltage
ratings
Cap2 : Series and agency approval marks
Operating
Temperature: –55ºC to 125ºC.
Thermal
Shock: MIL-STD-202G, Method 107G, Test Condition B
(5 Cycles -65ºC to +125ºC).
Vibration MIL-STD-202G, Method 201A
Humidity MIL-STD-202G, Method 103B, Test Condition
A: High RH (95%) and elevated temp (40ºC)
for 240 hours
Salt Spray MIL-STD-202G, Method 101D, Test Condition B
packaging Option packaging Specification Quantity
Quantity & packaging
Code
Taping Width
208 Series
Bulk N/A 1000 MX N/A
Bulk N/A 1000 MXE N/A
Reel and Tape EIA 296-E 1500 DRT1 T1=53mm (2.087”)
Packaging
208 000P Series 208 000EP Series
4.7
(.184")
14.48
(.57")
14.48
(.57")
4.7 (.184") .635
(.025")
38.1
(1.50") TYP.
Part Numbering System
0208 M X E P xxxx
Option Codes
Lead-free
Packaging Code
Quantity Code
Current Rating Code
Series
Blank = Cartridge Type Fuse
E = Axial Leaded Fuse
X = Loose Pack
M = 1000
Refer to Amp Code column of
Electrical Characteristics Table
