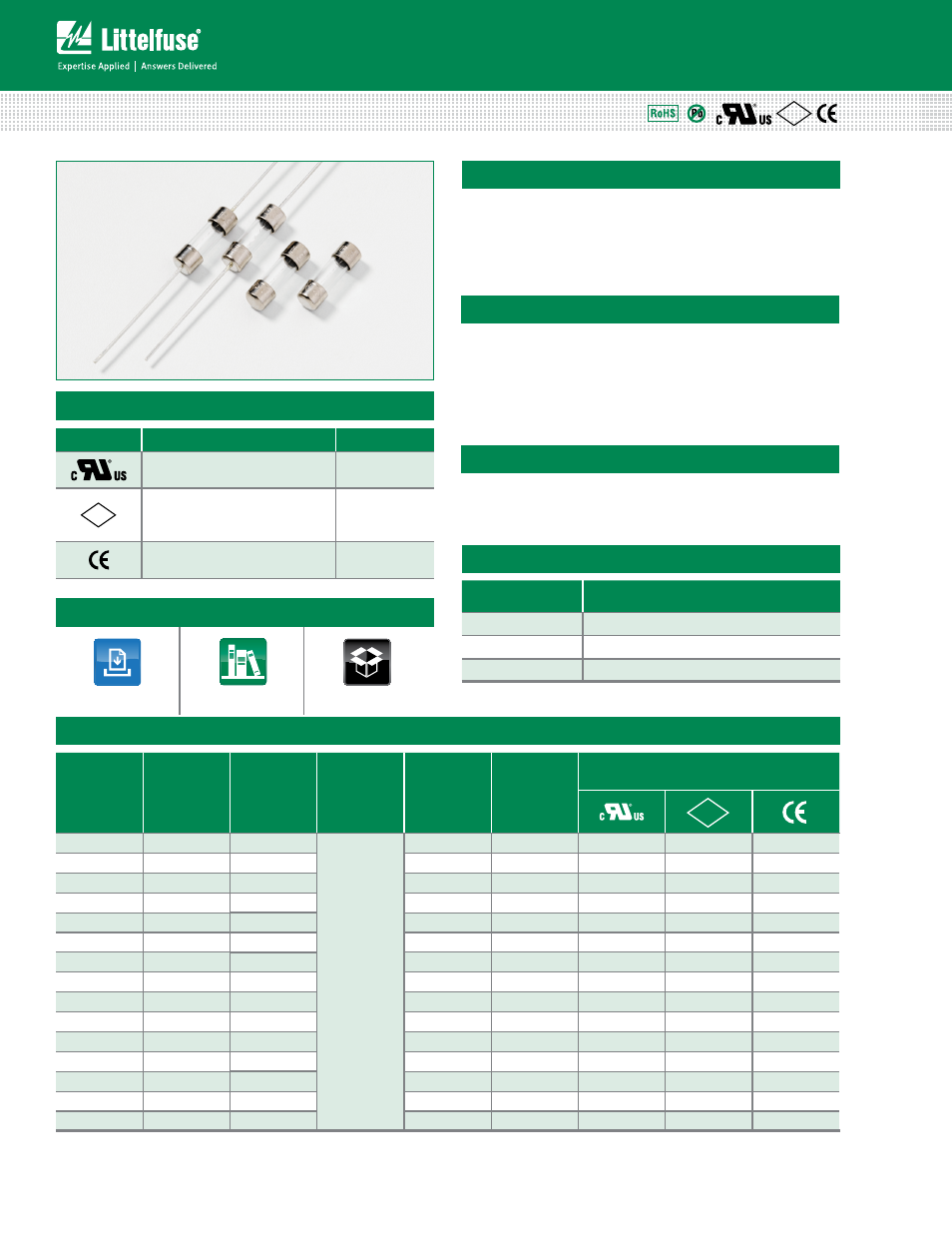

Axial Lead & Cartridge Fuses
2AG > Fast-Acting > 208 Series
Agency
Agency File Number
Ampere Range
E10480
375mA - 10A
PS
E
NBK200405-E10480 A/B/C/D
NBK110512-E10480 A/B
1A - 3.5A
4A - 5A
375mA - 10A
208 Series Lead-Free 2AG, Fast-Acting Fuse
Littelfuse 208 Series (2AG) 350V Fast-Acting Fuses are
available in cartridge form or with axial leads. This series
provides the same performance characteristics as its 3AG
counterpart, while occupying one-third the space. Sleeved
fuses are available.
Agency Approvals
Features
Electrical Characteristics for Series
• In accordance
with Underwriter’s
Laboratories Standard
UL 248-14
• Available in cartridge and
axial lead form and with
various lead forming
dimensions
• RoHS compliant and
Lead-free
Applications
% of Ampere
Rating
Opening Time
100%
4 Hours, Min.
135%
1 Hour, Max.
200%
1 Second, Max.
Amp Code
Amp Rating
Voltage
Rating
Interrupting
Rating
Nominal Cold
Resistance
(Ohms)
Nominal
melting
I
2
t (A
2
sec)
Agency Approvals
PS
E
.375
0.375
350
100A @
350V AC
0.395
0.171
x
x
.500
0.500
350
0.265
0.365
x
x
.750
0.750
350
0.152
1.050
x
x
001.
1.0
350
0.103
2.220
x
x
x
01.5
1.5
350
0.0712
0.800
x
x
x
002.
2.0
350
0.0497
1.50
x
x
x
02.5
2.5
350
0.0372
2.68
x
x
x
003.
3.0
350
0.0317
4.62
x
x
x
03.5
3.5
350
0.0265
6.70
x
x
x
004.
4
350
0.0240
9.40
x
x
x
005.
5
350
0.0186
17.00
x
x
x
006.
6
350
0.0154
22.10
x
x
x
007.
7
350
0.0130
40
x
x
x
008.
8
350
0.0107
56
x
x
x
010.
10
350
0.0075
116
x
x
x
Electrical Characteristic Specifications by Item
• Electrical ballasts used in fluorescent lighting and other
applications
PS
E
Description
Additional Information
