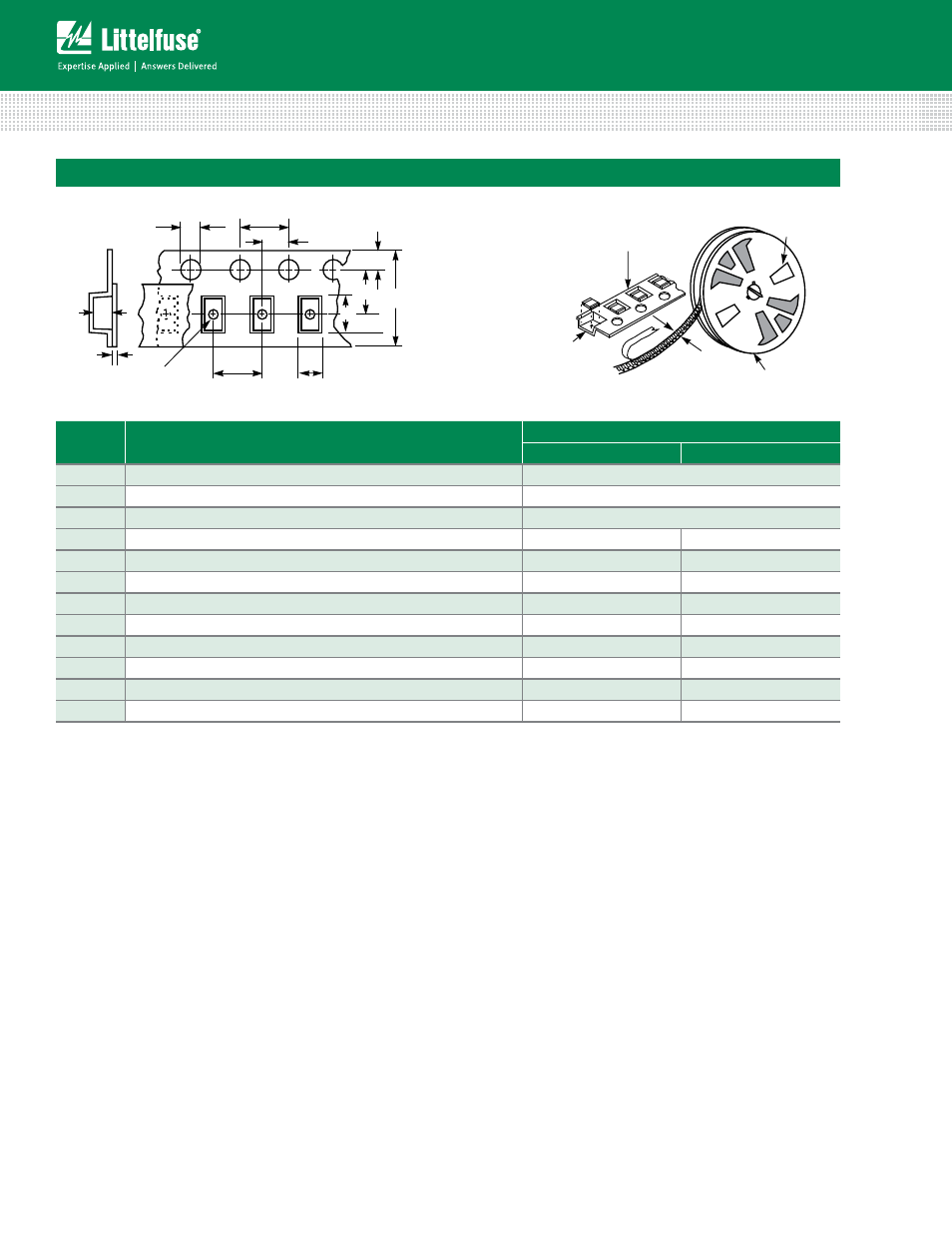

Tape and Reel Specifications
Symbol Description
Dimensions in Millimeters
0402 Size 0603, 0805 & 1206 Sizes
A
0
Width of Cavity Dependent on Chip Size to Minimize Rotation.
B
0
Length of Cavity Dependent on Chip Size to Minimize Rotation.
K
0
Depth of Cavity Dependent on Chip Size to Minimize Rotation.
W Width of Tape 8 -/+ 0.2 8 -/+ 0.3
F Distance Between Drive Hole Centers and Cavity Centers 3.5 -/+ 0.05 3.5 -/+ 0.05
E Distance Between Drive Hole Centers and Tape Edge 1.75 -/+ 0.1 1.75 -/+ 0.1
P
1
Distance Between Cavity Centers 2 -/+ 0.05 4 -/+ 0.1
P
2
Axial Drive Distance Between Drive Hole Centers & Cavity Centers 2 -/+ 0.1 2 -/+ 0.1
P
0
Axial Drive Distance Between Drive Hole Centers 4 -/+ 0.1 4 -/+ 0.1
D
0
Drive Hole Diameter 1.55 -/+ 0.05 1.55 -/+ 0.05
D
1
Diameter of Cavity Piercing N/A 1.05 -/+ 0.05
T
1
Top Tape Thickness 0.1 Max 0.1 Max
Notes :
• Conforms to EIA-481-1, Revision A
• Can be supplied to IEC publication 286-3
K 0
t 1
D 0 P 0
D 1
P 1 A 0
P 2
B 0
F
E
W
For T and H Pack Options: PLASTIC CARRIER TAPE
For R Pack Options: EMBOSSED PAPER CARRIER TAPE
EMBOSSMENT
TOP TAPE 8mm
NOMINAL
PRODUCT
IDENTIFYING
LABEL
178mm
OR 330mm
DIA. REEL
