Axial Lead & Cartridge Fuses
5×20 mm > Fast-Acting > 216 Series

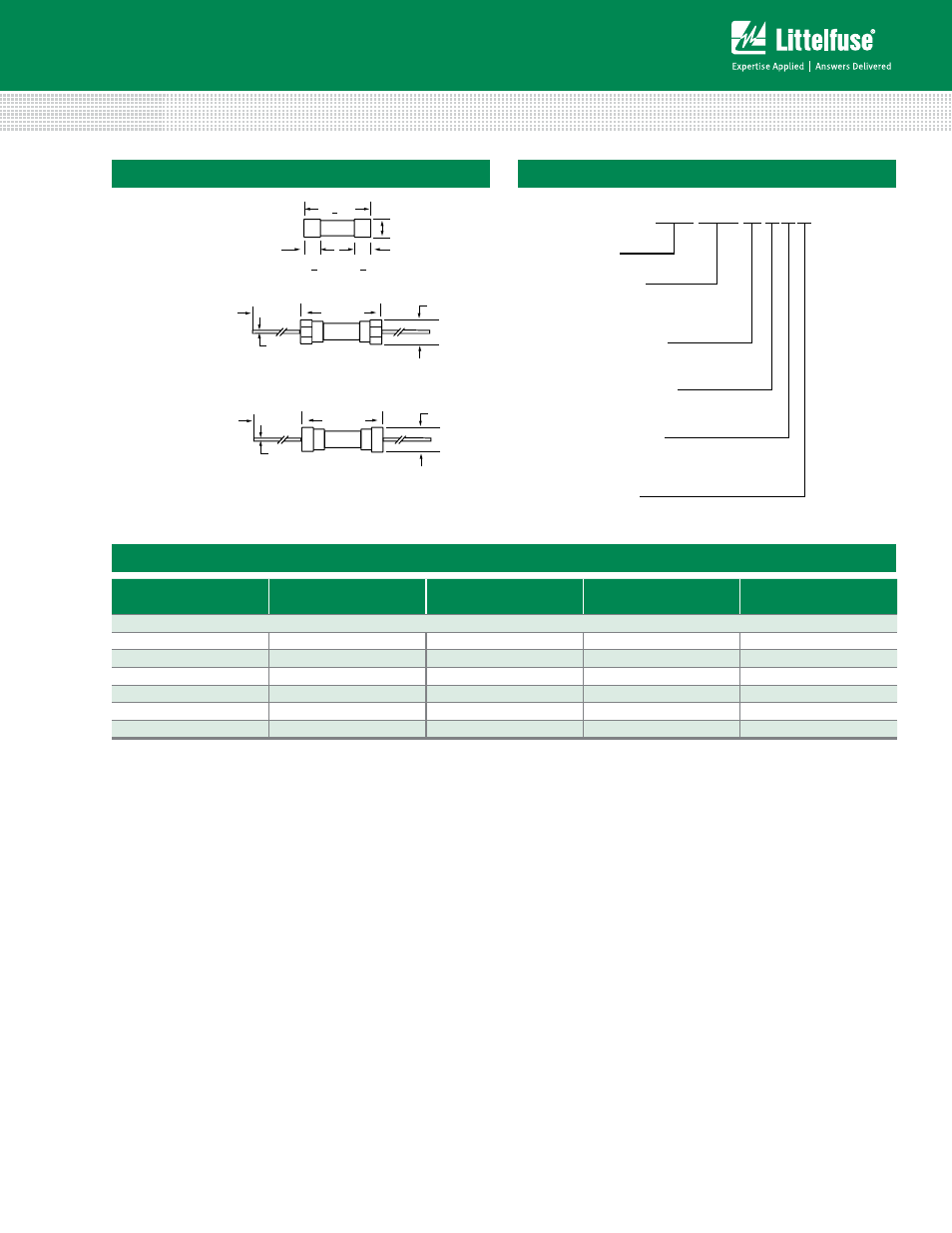

Dimensions
Packaging
0216.050XEP
to
0216.800XEP
0216 000XP
40
20+0.5
22.5 MAX
5.1+0.6
5.2+0.1
-0.2
5.1+0.6
6.0 MAX
0216001.XEP
to
0216016.XEP
0.65**
0.65
40 22.5 MAX
5.8 MAX
All dimensions in mm
** Ratings above 6.3A have 0.8 mm diameter lead
Part Numbering System
0216 xxxx M X E P
Series
Amp Code
Refer to Amp Code column of
Electrical Characteristics Table
Lead-free
Quantity Code
M = 1000
Option Codes
Blank : Cartidge Type Fuse
E : Axial Leaded Fuse
Packaging Code
X = Filler
Packaging Option Packaging Specification Quantity
Quantity &
Packaging Code
Taping Width
216 Series
Bulk N/A 1000 MX N/A
Bulk N/A 1000 MXE N/A
Reel and Tape EIA 296-E 1000 MRET1 T1=53mm (2.087”)
Bulk N/A 1000 MXG N/A
Bulk N/A 1000 MXB N/A
Bulk N/A 100 HX N/A
