Littelfuse P6SMB Series - Manual (Page 6)

Transient Voltage Suppression Diodes
© 2014 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 01/20/14
Surface Mount – 600W > P6SMB series
Part Numbering System
V
BR
VOLTAGE
BI-DIRECTIONAL
5% V
BR
VOLTAGE TOLERANCE
SERIES
P6SMB XXX C A
Part Marking System
F
XX
YMXXX
Marking Code
Trace Code Marking
Y:Year Code
M: Month Code
XXX: Lot Code
Littelfuse Logo
Cathode Band
(for uni-directional products only)
Packaging
Part number
Component
Package
Quantity
Packaging
Option
Packaging
Specification

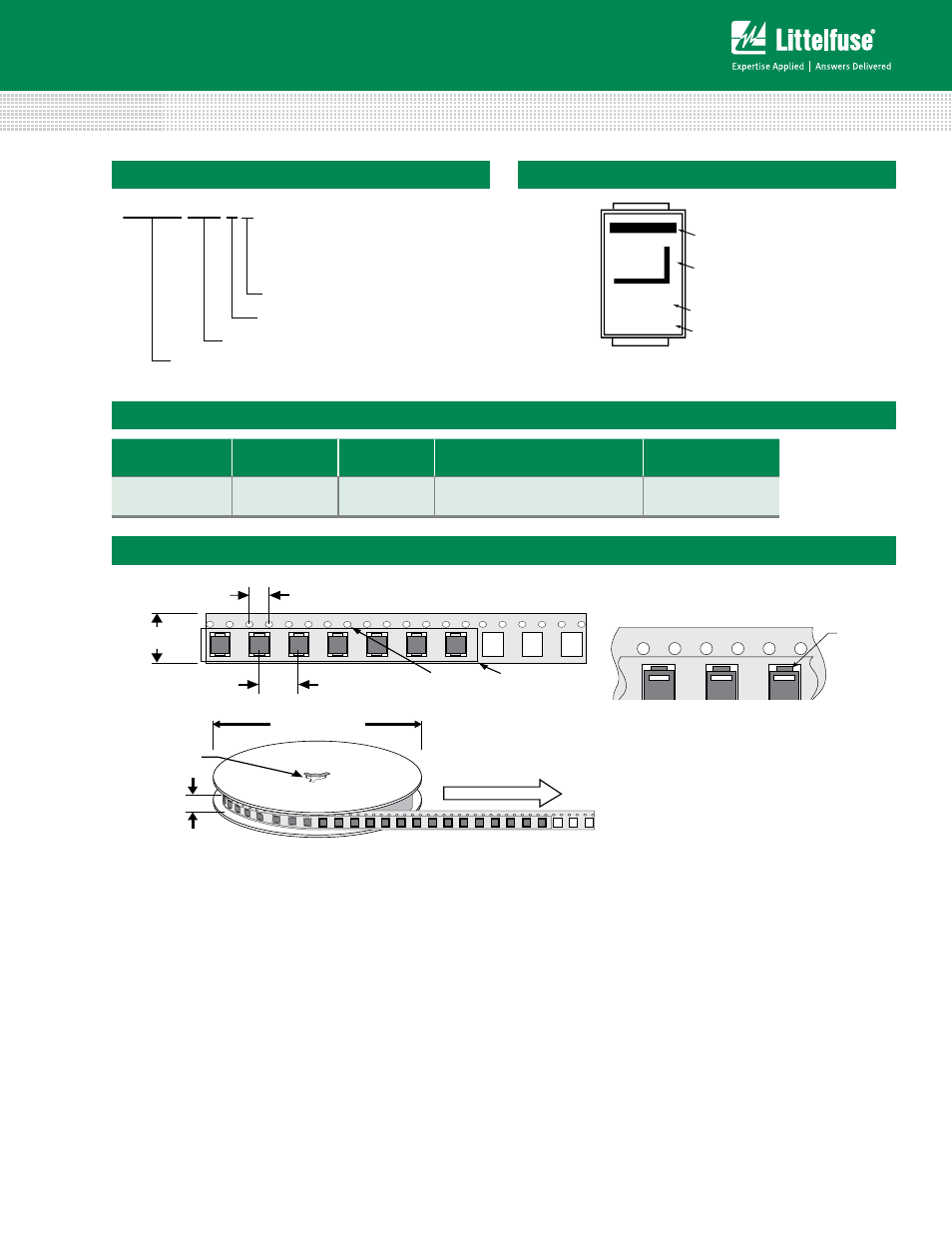

P6SMBxxxXX DO-214AA 3000 Tape & Reel - 12mm tape/13” reel EIA STD RS-481
Tape and Reel Specification
0.47
(12.0)
0.315
(8.0)
0.157
(4.0)
0.49
(12.5)
0.80 (20.2)
Arbor Hole Dia.
13.0 (330)
Dimensions are in inches
(and millimeters).
Direction of Feed
0.059 DIA
(1.5)
Cover tape
Cathode
