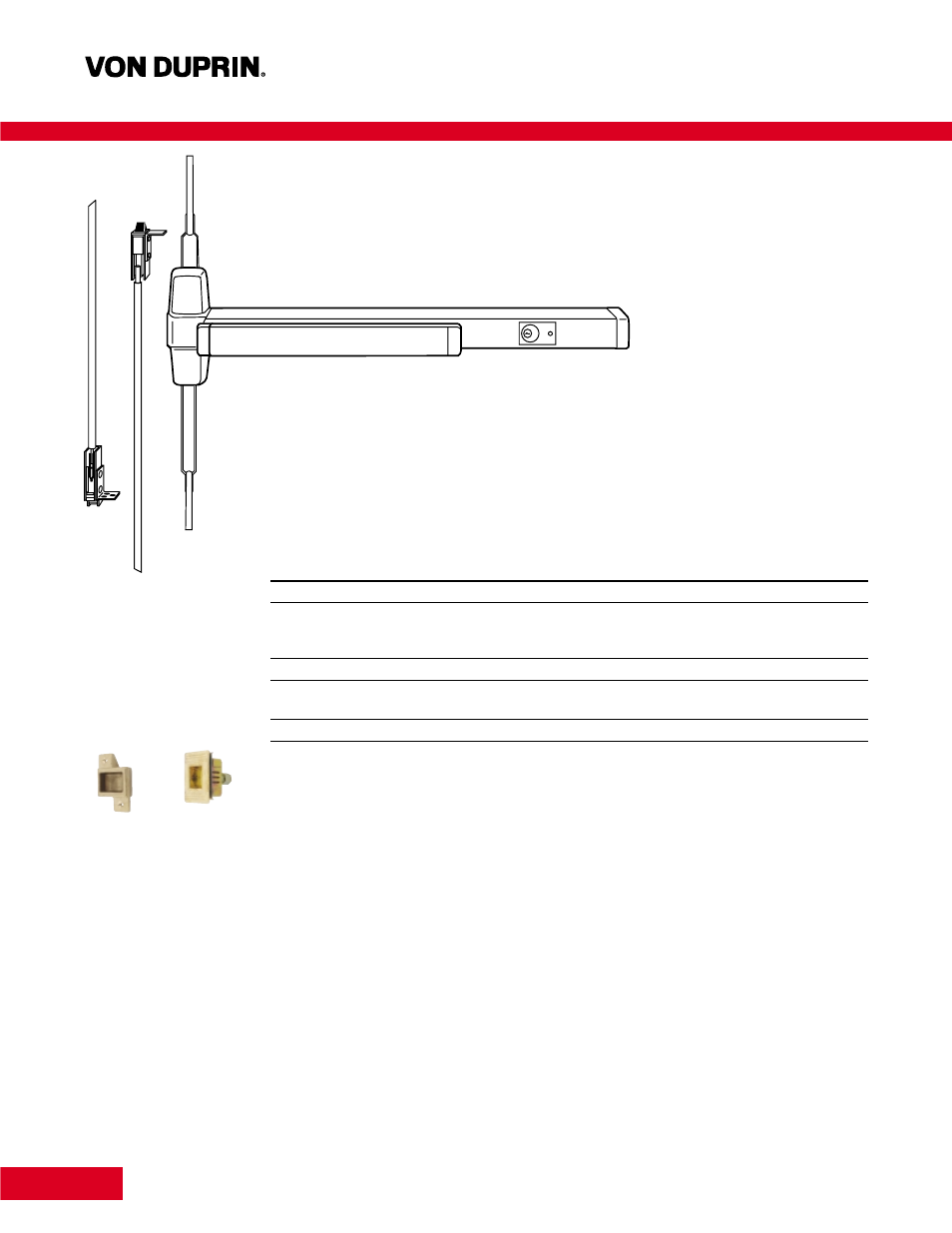

Chexit ™ Concealed Vertical Rod Device
6
CX9847 and CX9947 concealed vertical rod devices for use on single or double metal doors, UL listed for
accident hazard installations. Covers stock hollow metal doors with 86 or 161 cutouts.
CX9847-F and CX9947-F fire exit concealed vertical rod devices for use on 8' x 8' (2438mm x 2438mm)
double metal doors, UL listed for A, B, C, D or E fire-labeled installations.
Features
• Nonhanded • 5/8" (16mm) throw, latch bolt
• Field sizeable • Latch bolt deadlocking
• Adjustable top rod • Eight popular finishes
Dimensions
Touchbar height to finished floor 39-5/8" (1006mm) at center
Touchbar projection —
neutral 3-13/16" (97mm)
depressed 3-1/16" (78mm)
Center case 8" x 2-1/4" x 2-3/4" (203mm x 57mm x 70mm)
Device length — Short 3' (914mm) 2'10" to 3' (864mm to 914mm) door size
Long 4" 1 (1219mm) 3'4" to 4' (1016mm to 1219mm) door size
Vertical rods — round Two piece adjustable top rod
Strikes and Fasteners
Device is furnished with standard 338 and 385A strikes. For optional strikes, finishes, applications, dimensions
and minimum door stile information refer to page 10.
A combination of fasteners are included for surface mounting and through bolting to trim on 1-3/4" (44mm)
and 2-1/4" (57mm) thick doors.
Device Option
Cylinder dogging, page 13
For How-To-Order Information on all devices, see page 17.
For electrical specifications, see page 16.
For power supply and power transfer information, see page 12.
Standard 1-1/4" (32mm) mortise cylinder
must be ordered separately.
Surface mounted vertical rod
devices are available, but not
recommended unless used with
rod and latch guards and monitor
strike, consult factory.
338 385A
