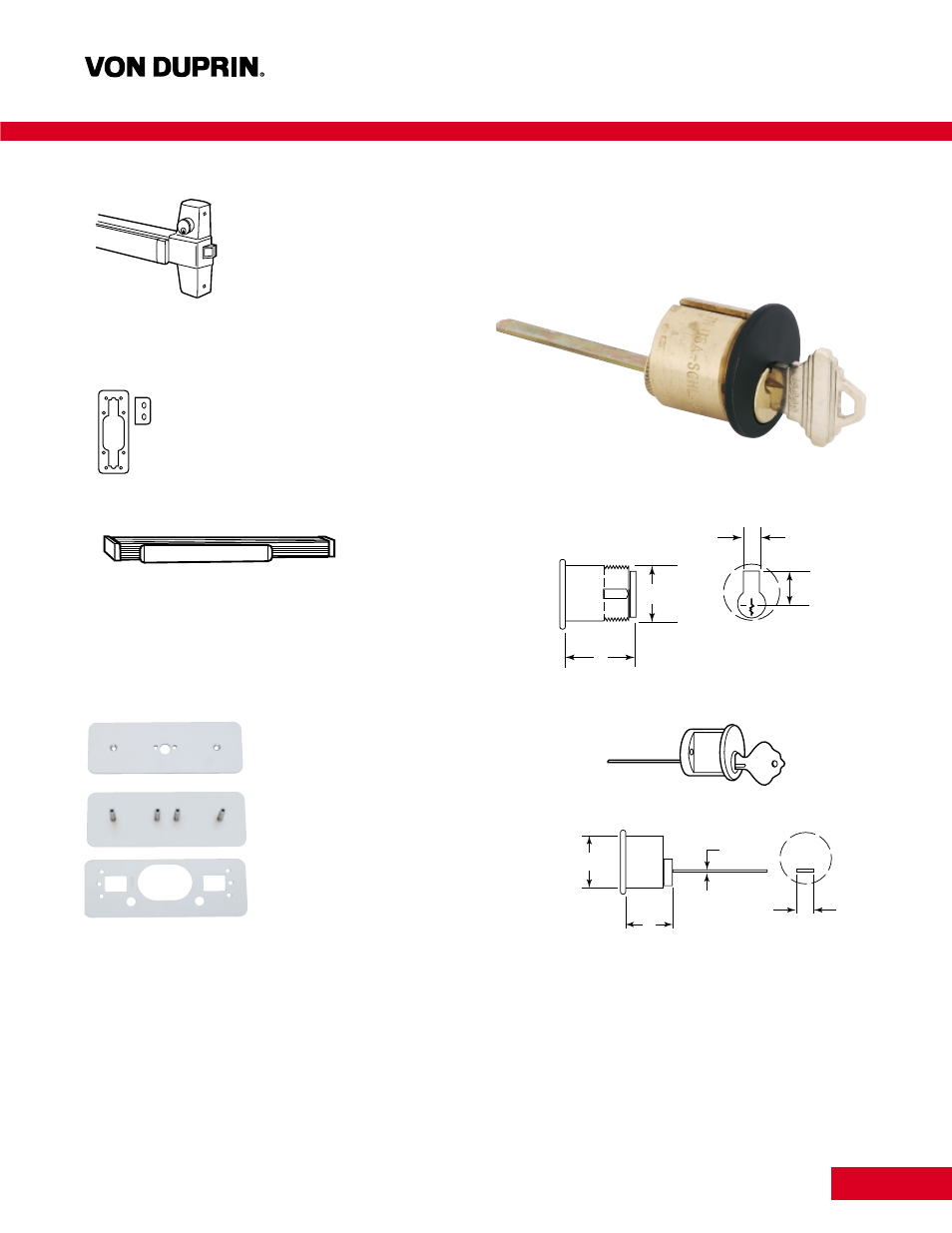

Accessories and Options
CD Cylinder Dogging
Cylinder dogging option is available to
allow push/pull operation of Chexit, when
disarmed and used in a heavy traffic area.
For typical electronic applications see pages 14-15.
Glass Bead Kit
Glass bead conversion kits are available for use on
doors with raised glass beads. Kit consists of 1/8"
(3mm) shim sets.
Dummy Push Bar
The 330 grooved and 350 smooth dummy push bars are designed
as a companion unit for all 98 or 99 devices. The touch bar is rigid
or non-functioning. A push/pull operation can be accomplished by
using 990DT or other pull trim.
Cover Plate Kit — 997 Kit
For rim device, kit contains
inside and outside plates for hinge
stile, an inside plate for the lock
stile, and fasteners. Designed
to cover most cutouts,
3-1/4" (83mm) x 9" (229mm).
Cylinders
Cylinders are not furnished with device or trim and must be specified
when ordering. Rim, surface vertical rod, and concealed vertical rod
exit devices use rim type cylinders. Mortise lock exit devices and series
370 controls use mortise type cylinders.
