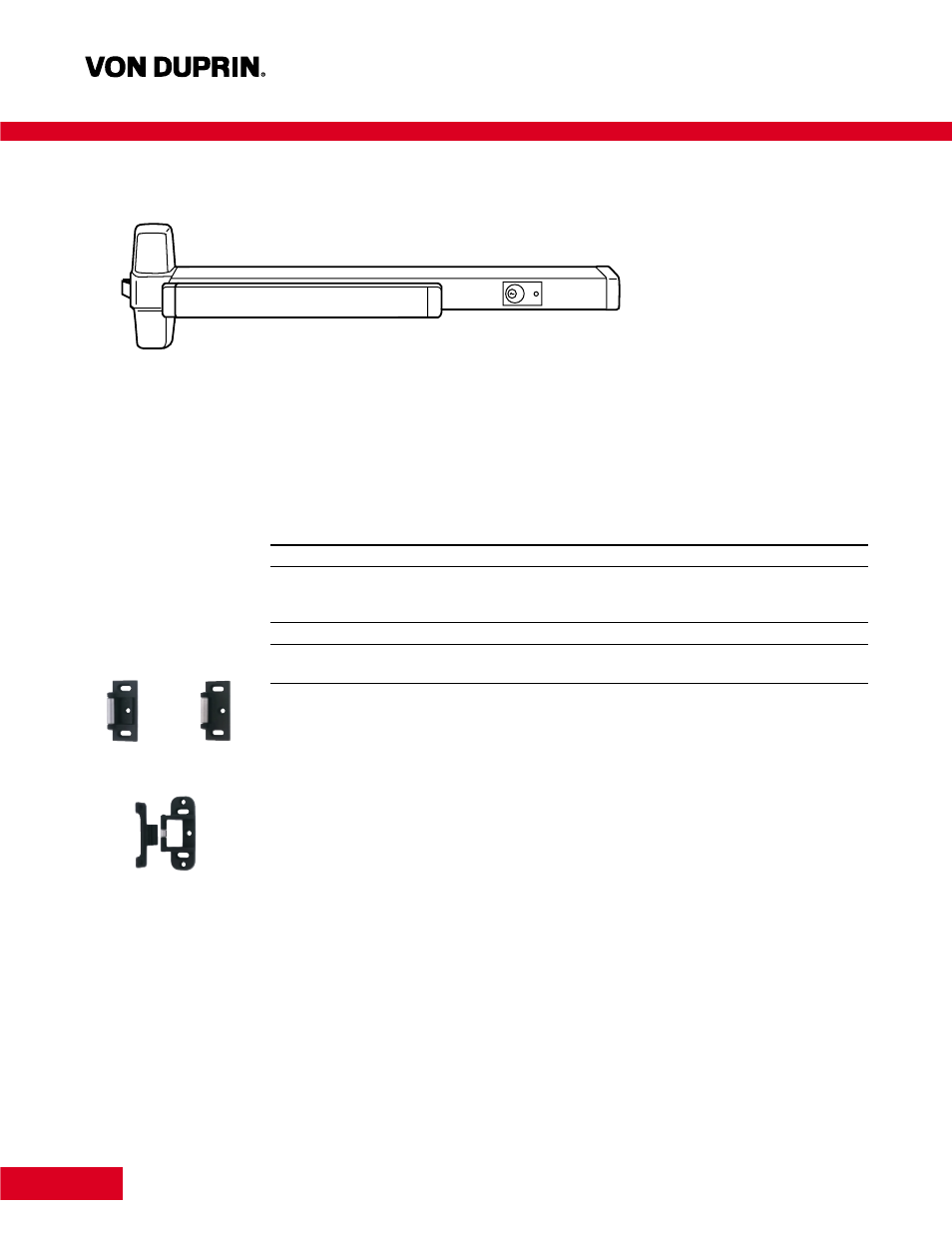

Chexit
™
Rim Device
CX98 and CX99 rim devices for all types of single doors and double doors with mullion, UL listed for accident
hazard installations. Covers stock hollow metal doors with 86 or 161 cutouts.
CX98-F and CX99-F fire exit rim devices for all types of 4' x 8' (1219mm x 2438mm) single doors or 8' x 8'
(2438mm x 2438mm) double doors with 9954 mullion, UL listed for A, B, C, D or E fire-labeled installations.
Features
• Nonhanded
• Latch bolt dead locking
• Field sizeable
• Eight popular finishes
• 3/4" (19mm) throw, latch bolt
Dimensions
Touchbar height to finished floor
39-13/16" (1011mm) at center
Touchbar projection —
neutral
3-13/16" (97mm)
depressed
3-1/16" (78mm)
Center case
8" x 2-1/4" x 2-3/4" (203mm x 57mm x 70mm)
Device length — Short 3' (914mm)
2'10" to 3' (864mm to 914mm) door size
Long 4"
1
(1219mm)
3'4" to 4' (1016mm to 1219mm) door size
Strikes and Fasteners
Device is furnished with standard 299 or 299F strikes in dull black finish, 499F is required on double fire doors.
For optional strikes, finishes, applications, dimensions and minimum door stile information refer to page 10.
A combination of fasteners are included for surface mounting and through bolting to trim on 1-3/4" (44mm)
and 2-1/4" (57mm) thick doors.
Device Option
Cylinder dogging, page 13
For How-To-Order Information on all devices, see page 17.
For electrical specifications, see page 16.
For power supply and power transfer information, see page 12.
Standard 1-1/4" (32mm) mortise cylinder
must be ordered separately.
299
299F
499F
