9
ENGLISH

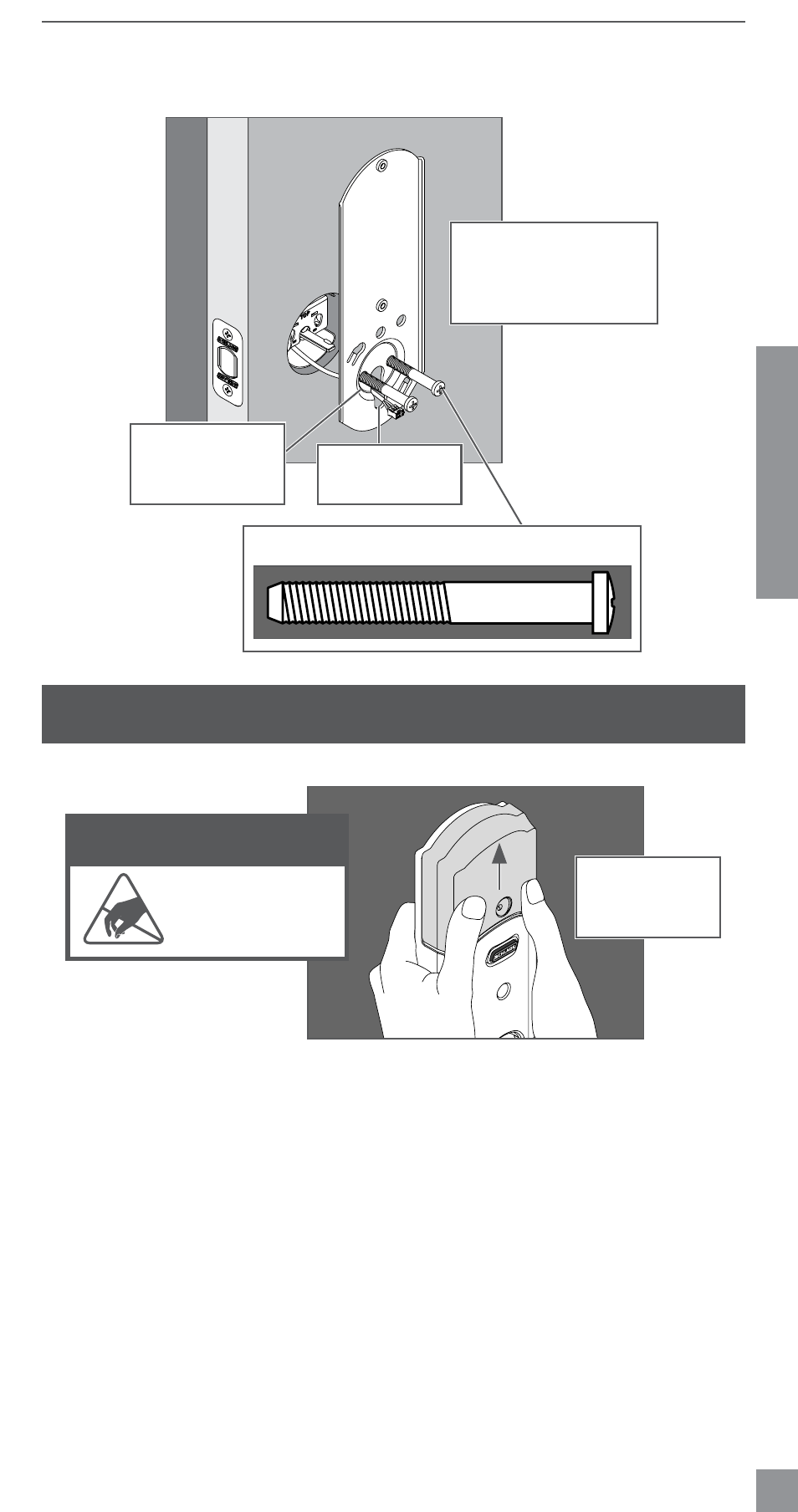

6b Install the Support Plate on the inside of the door.
L Make sure the Touchscreen and Support Plate are straight on the door before tightening
the screws. Tighten screws fully to prevent the lock from moving over time.
TOP
Make sure the
indented circle is
facing the door.
Have someone hold
the Touchscreen on the
outside of the door while
you tighten the screws.
Actual Size (2)
Route the cable
through the slot.
7
Install the Alarm Assembly.
7a Remove the battery cover from the Alarm Assembly.
DO NOT remove
the battery tray
(not shown)!
ELECTROSTATIC DISCHARGE
WARNING!
DO NOT TOUCH the
circuit board! You may
damage the lock.
