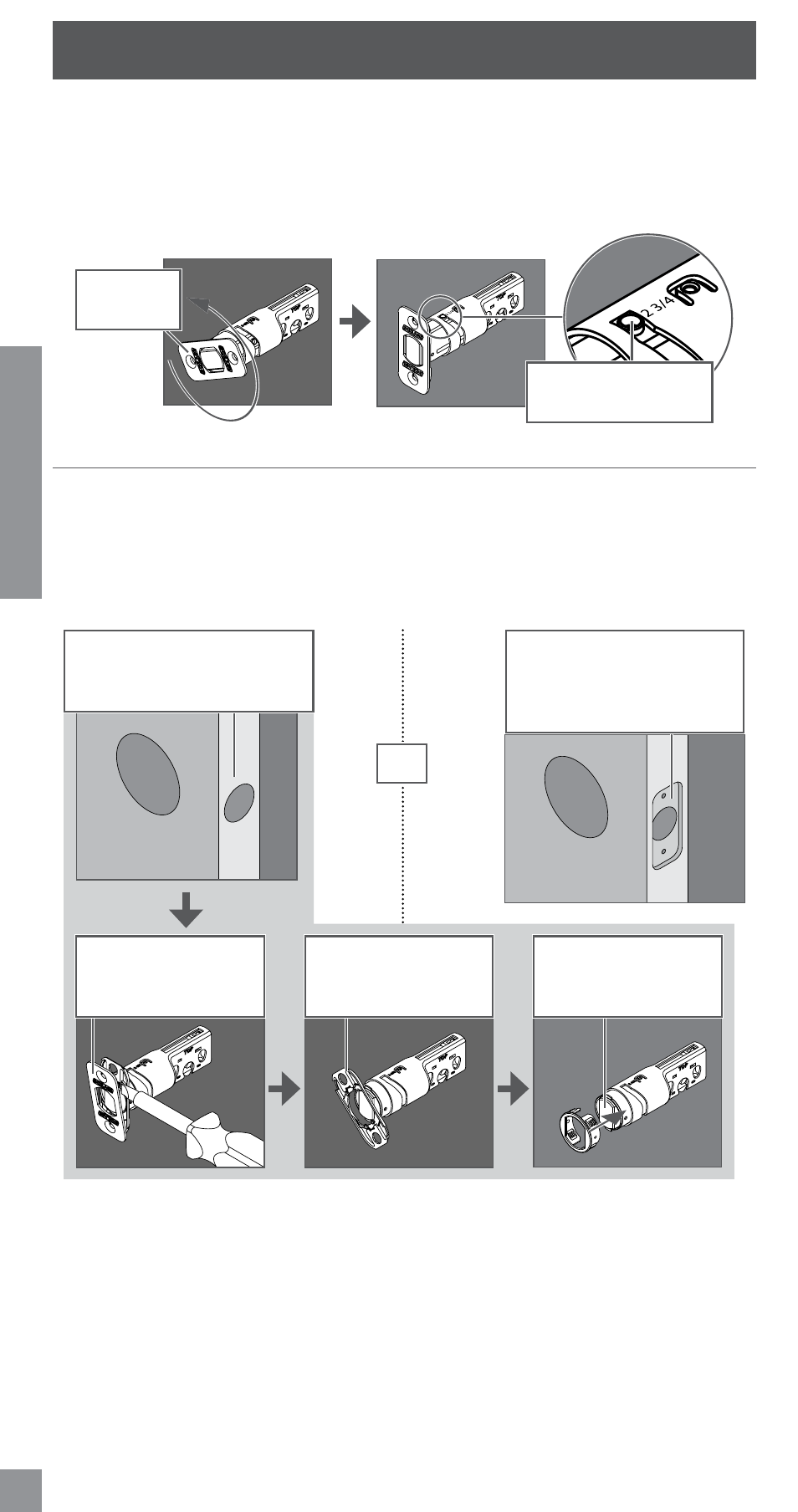

Install bolt and strike.
5a Adjust bolt length, if necessary.
• If the backset (see step 3) of your door was 2C\,” (60 mm), you do not need to do
anything. Proceed to step 5b.
• If the backset (see step 3) of your door was 2C\v” (70 mm), you need to adjust your bolt.
Twist the faceplate until the button pops into the 2C\v” space.
Twist the
faceplate.
Make sure the button
pops into place.
5b Change to the round bolt faceplate, if necessary.
• If the edge of your door has a mortise, you do not need to do anything. Proceed to step
5c.
• If the edge of your door has no mortise, change the faceplate on your bolt.
L In step 5c, your installation will depend on which kind of door edge you had in this step.
No Mortise
If your door looks like this,
complete the steps below.
1. Use a flathead
screwdriver to pry
the faceplate off.
2. Remove the
backplate.
3. Slide the round
faceplate into
place.
Mortise
If your door looks like
this, you don’t need to do
anything. Proceed to step 5c.
OR
