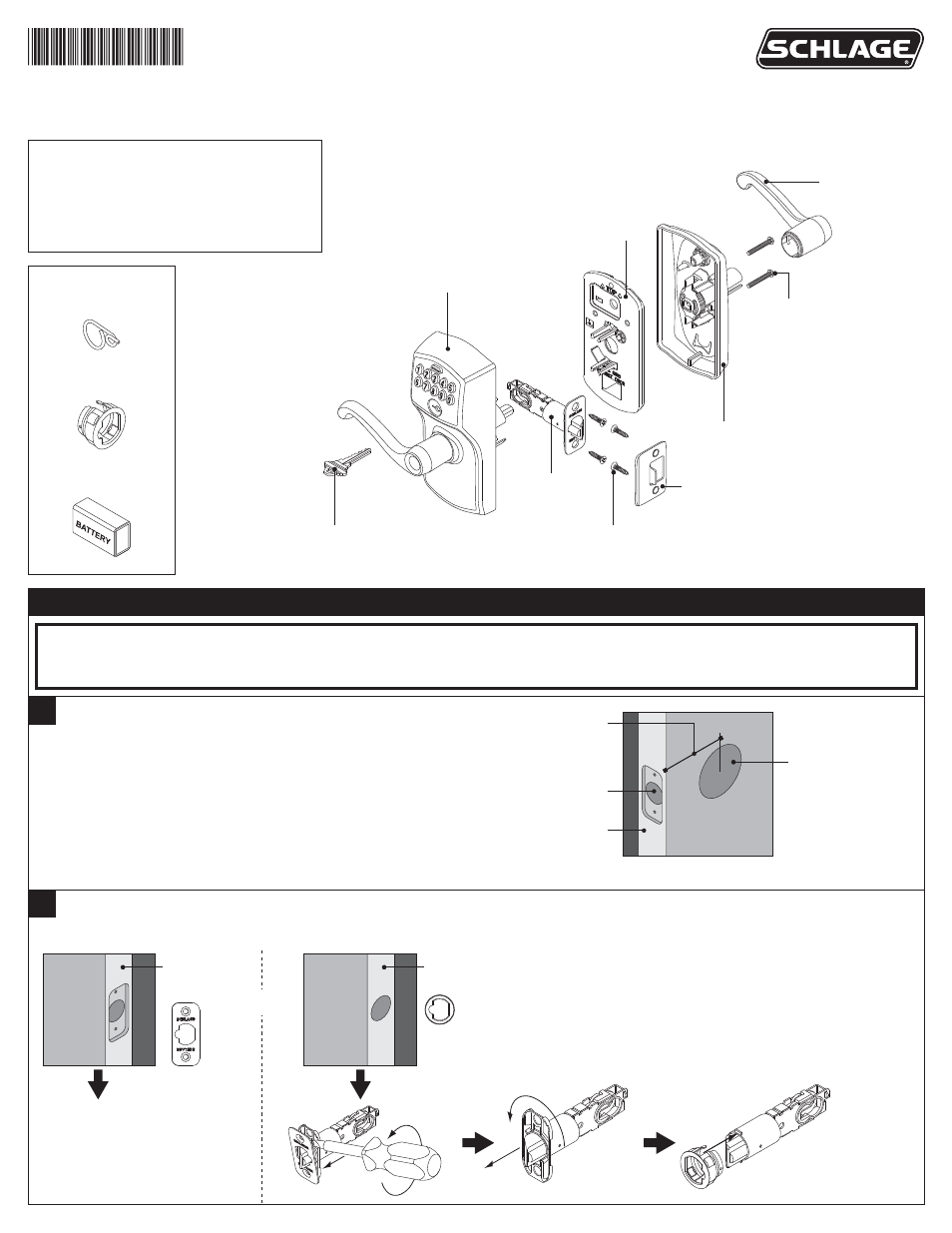

Schlage FE595 Installation - Manual

Change faceplate, if necessary.
Choose the drawing that matches your door edge. If the hole has no mortise, change to the circular faceplate.
OR
B
Door Edge Door Edge
No change necessary.
A
Check door dimensions.
See consumer.schlage.com/Service-Support for door
preparation instructions if dimensions are different.
2 ³⁄₄” (70 mm)
OR
2 ³⁄₈” (60 mm)
2 ¹⁄₈” (53 mm)
Hole
1” (25 mm)
Door Edge
23780018
Keypad Lock
Installation Instructions
Model FE595
Additional Parts
9V Battery
Optional Latch
Faceplate
Pin Wrench
Tools Needed
• Phillips screwdriver
• Tape Measure
• Pencil
Optional
• Flathead Screwdriver
• Wood Block
• Hammer
• DO NOT use a power drill for installation!
• Use a screwdriver to remove product from packaging.
• Install and test lock with door open to avoid being locked out.
IMPORTANT NOTES
Prepare for Installation
Keypad
Latch
Baseplate
Inside Lever
Cover
Cover
Screws (2)
Latch/Strike
Screws (4)
Strike
Key
