Schlage BE469NX Installation - Manual (Page 7)

7
ENGLISH

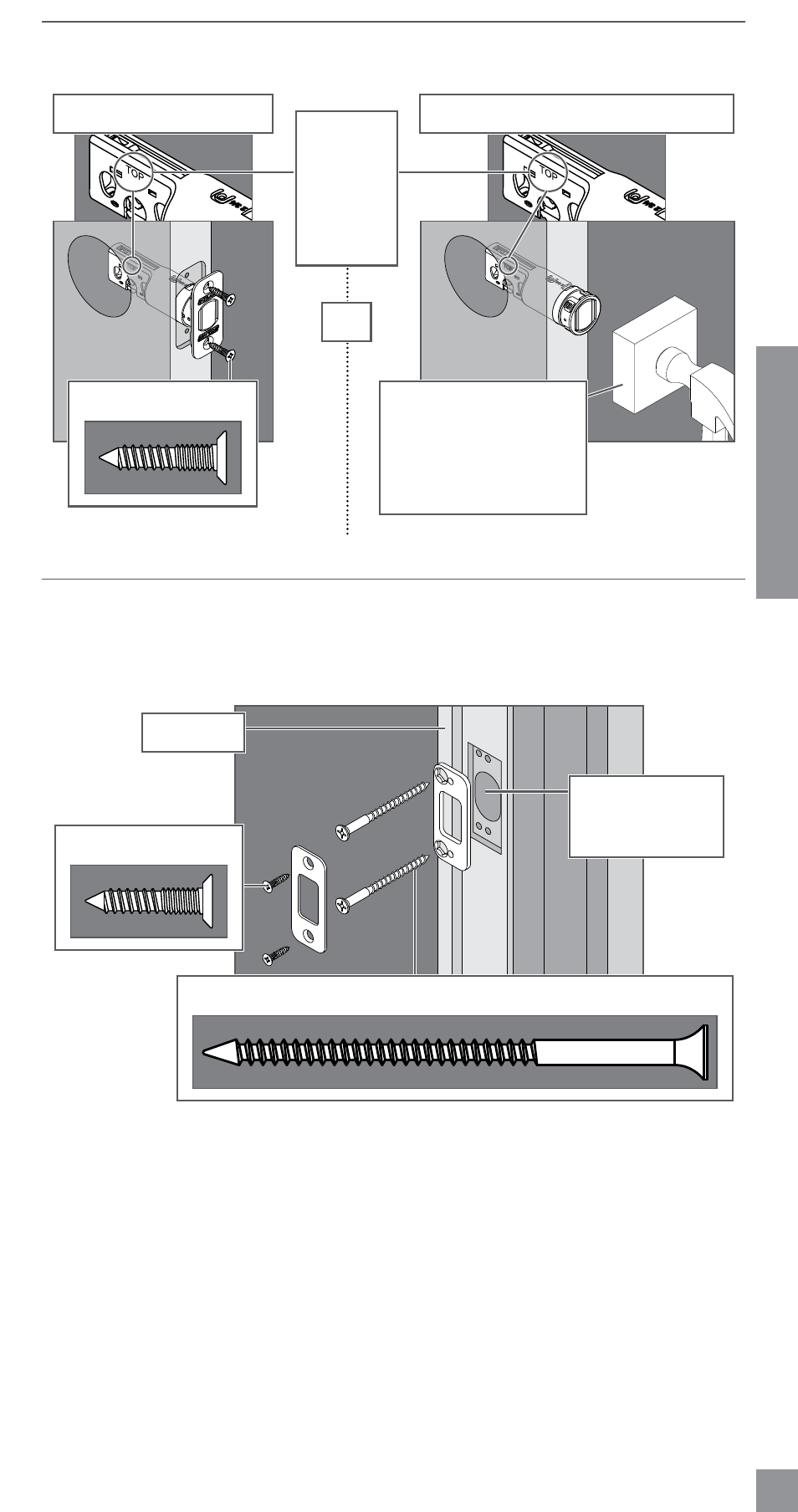

5c Install the bolt into the door.
Chose the picture below that matches your door.
Mortise No Mortise
Use a block of wood and
a hammer (not included)
to tap the bolt into place.
You don’t need to use
the screws.
Actual Size (2)
OR
Make sure
the word
TOP faces
up when
installing
the bolt.
5d Install the strike into the frame.
Install all the parts shown for maximum security.
L In order to maintain BHMA Grade 1, you must install the included reinforcement plate and
strike.
Actual Size (2)
Reinforcement Screws: Actual Size (2)
Door Stop
Make sure this
hole is at least 1”
(25 mm) deep.
L The reinforcement screws may not fit on doors with sidelights.
