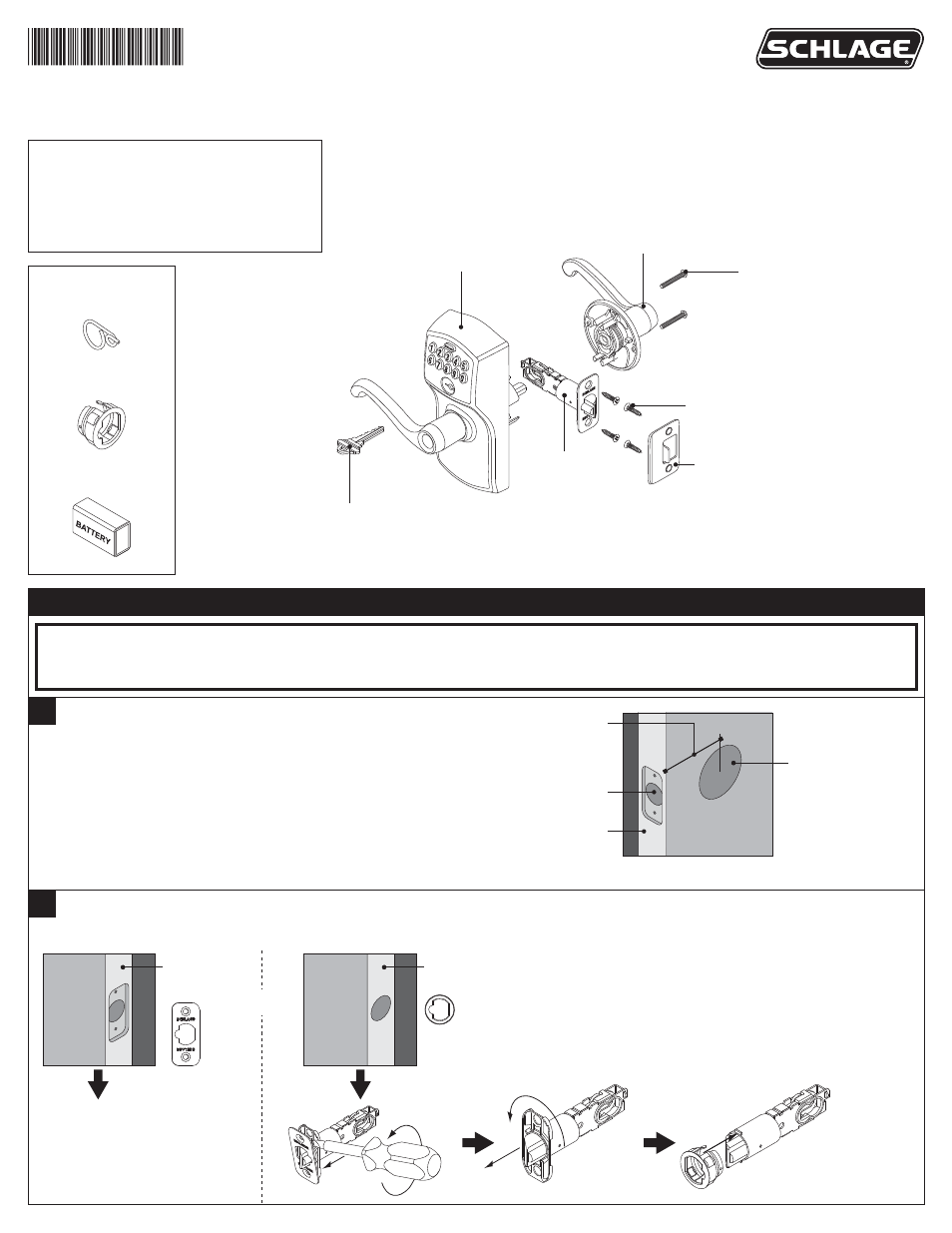

Keypad lock, Prepare for installation

background image

Change faceplate, if necessary.

Choose the drawing that matches your door edge. If the hole has no mortise, change to the circular faceplate.

OR

B

Door Edge

Door Edge

No change necessary.

A

Check door dimensions.
See consumer.schlage.com/Service-Support for door
preparation instructions if dimensions are different.

2

³⁄₄” (70 mm)

OR

2

³⁄₈” (60 mm)

2

¹⁄₈” (53 mm)

Hole

1” (25 mm)

Door Edge

23780026

Keypad Lock

Installation Instructions
Model FE575

Additional Parts

9V Battery

Optional Latch

Faceplate

Pin Wrench

Tools Needed

• Phillips screwdriver

• Tape Measure

• Pencil

Optional

• Flathead Screwdriver

• Wood Block

• Hammer

• DO NOT use a power drill for installation!

• Use a screwdriver to remove product from packaging.

• Install and test lock with door open to avoid being locked out.

IMPORTANT NOTES

Prepare for Installation

Keypad

Latch

Latch/Strike
Screws (4)

Strike

Inside Lever

Lever
Screws (2)

Key
