10
ENGLISH

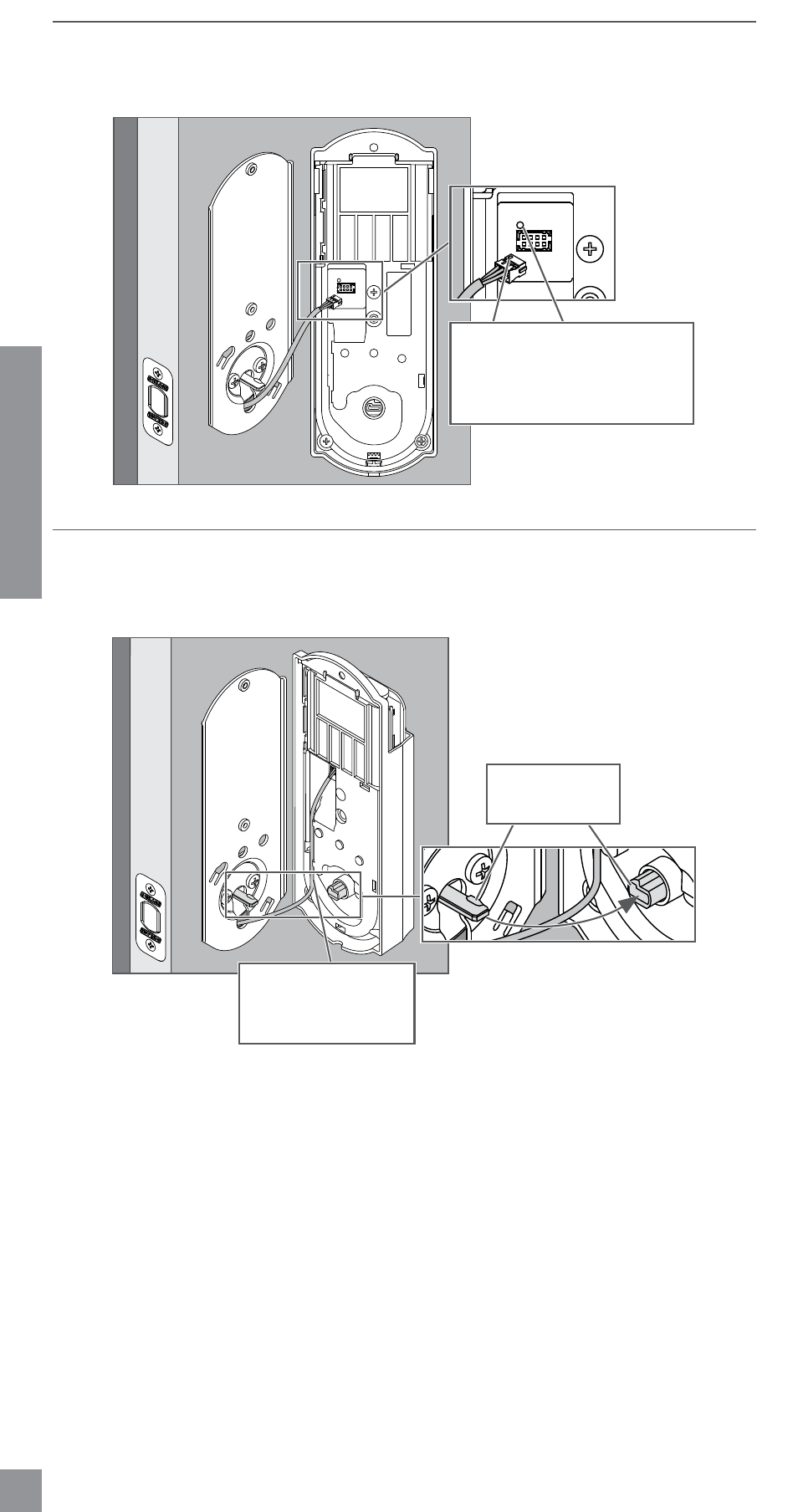

7b Connect the cable to the Alarm Assembly.
L Locate the screws in step 7d before beginning this step so they will be handy when you
need them.
The connector fits only one
way. Match the white dot on
the connector with the white
dot on the circuit board.
7c Install the Alarm Assembly.
1. Align the tab with the notch as shown.
2. Route the cable into the channel.
3. Then slide the Alarm Assembly towards the door.
Align tab with
notch.
Route the cable into
the channel to avoid
crimping the cable.
