8
ENGLISH

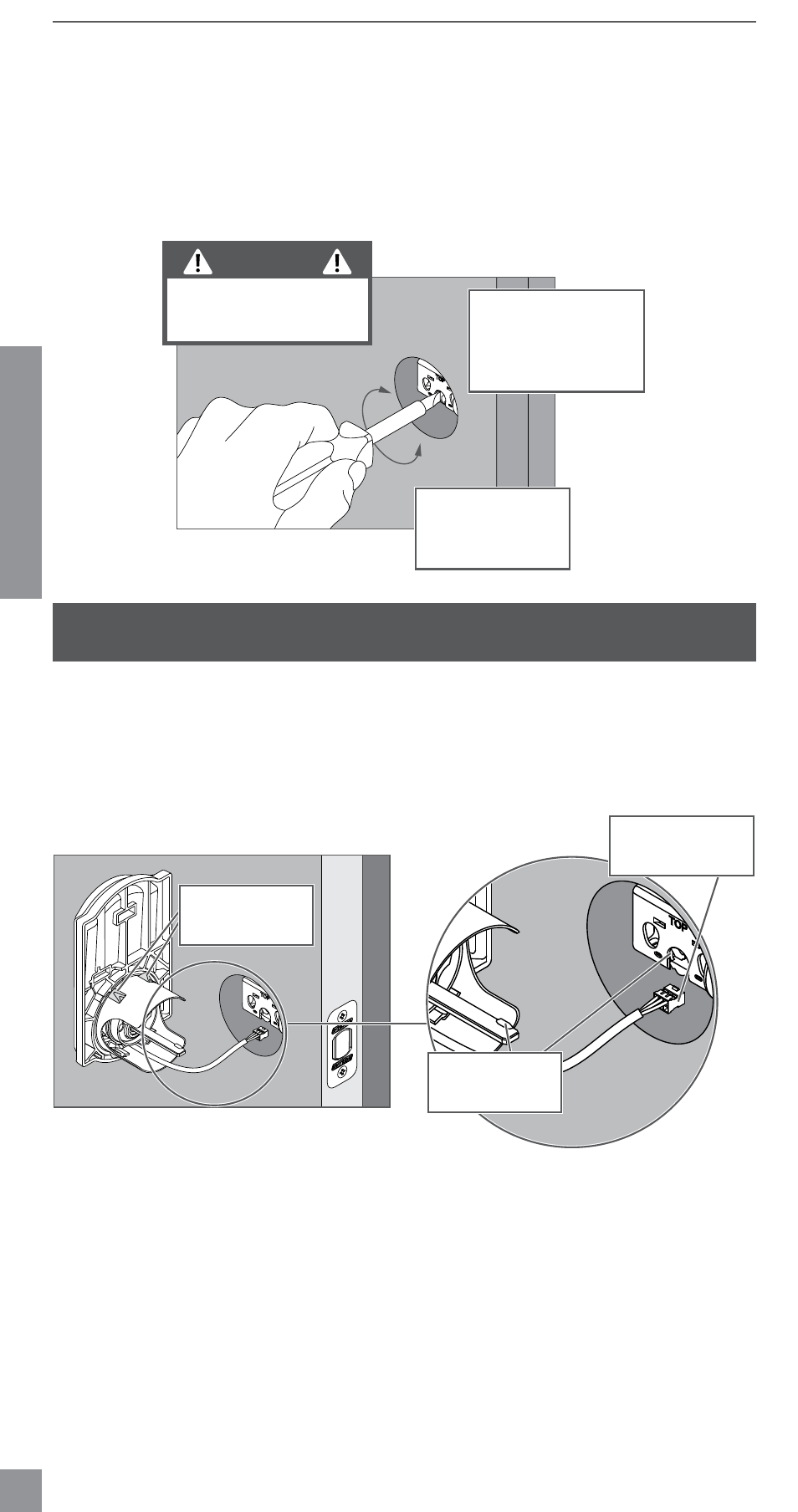

5e Test bolt alignment.
1. Close the door.
2. Insert a flathead screwdriver into the slot in the bolt, as shown.
3. Rotate the screwdriver toward the door edge to extend the bolt into the hole in the frame.
This operation should be smooth. You should be able to rotate the screwdriver 90˚, fully
extending the bolt.
4. If the operation was not smooth, or if the bolt did not fully extend, adjust your frame and/
or door preparation. Go to answers.schlage.com for further instructions.
5. Retract (unlock) the bolt before continuing to step 6.
Retract the bolt
before continuing
to step 6.
CAUTION
Test from the inside to
avoid being locked out!
If you can rotate the
screwdriver a full
90˚, then the bolt is
fully extended.
6
Install the Touchscreen Assembly.
6a Install the Touchscreen on the outside of the door.
L The clips snap into the crossbore (see step 3 on page 5) to assist in holding the
keypad on the door.
L The Touchscreen Assembly should install smoothly. If it does not, check that the bolt is set
to the correct backset (see step 5a on page 6).
Clips snap into
the crossbore.
Align the tab
with the notch.
Route the cable
under the bolt.
L NOTE: If you have a 1Z\x” (38 mm) crossbore (see step 3 on page 5), please see
Spacer Removal on page 15.
