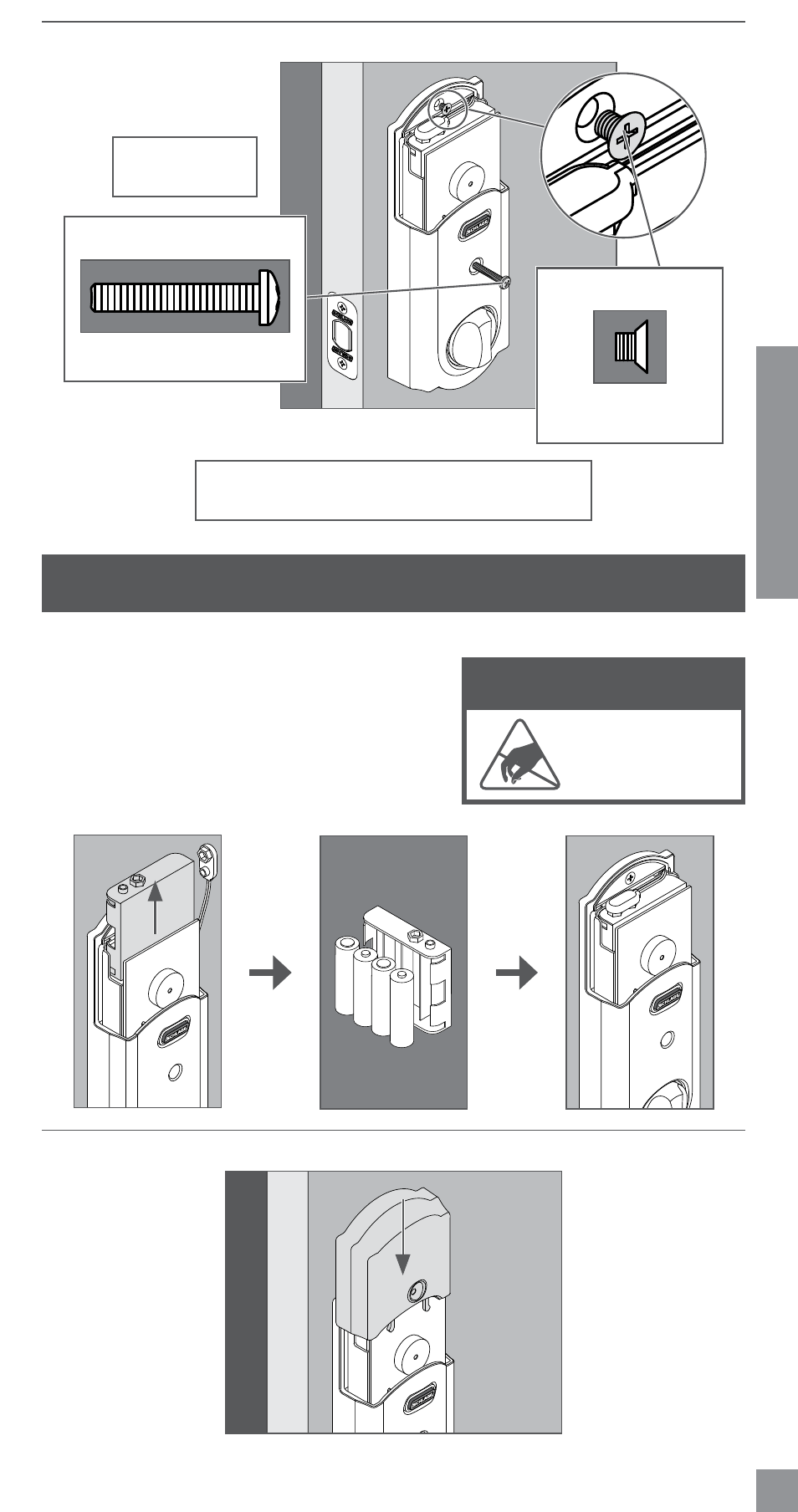

7d Secure the Alarm Assembly to the Support Plate.
Actual Size
8-32 x 1Z\,”
Actual Size
8-32 x .187 UP FHMS
(1 spare is included)
Install the lower
screw first.
Do not turn the thumbturn at this time. Testing will
be completed after the lock is completely installed.
8
Install the Batteries.
8a Install the batteries into the battery tray.
1. Unsnap the connector.
2. Remove the battery tray.
3. Install four high-quality alkaline AA batteries.
L Lithium batteries may cause undesirable
operation.
4. Carefully replace the battery tray, with the
batteries facing the door.
5. Snap the connector back into place.
-
+
-
+
-
+
-
+
8b Install the battery cover.
ELECTROSTATIC DISCHARGE
WARNING!
DO NOT TOUCH the
circuit board! You may
damage the lock.
