Schlage BE365 Installation - Manual

A
Check door dimensions.
See consumer.schlage.com/Service-Support for door
preparation instructions if dimensions are different.
2 ³⁄₄" (70 mm)
OR
2 ³⁄₈" (60 mm)
Door Edge
2 ¹⁄₈" (53 mm)
Hole
5 ¹⁄₂" (140 mm)
Minimum

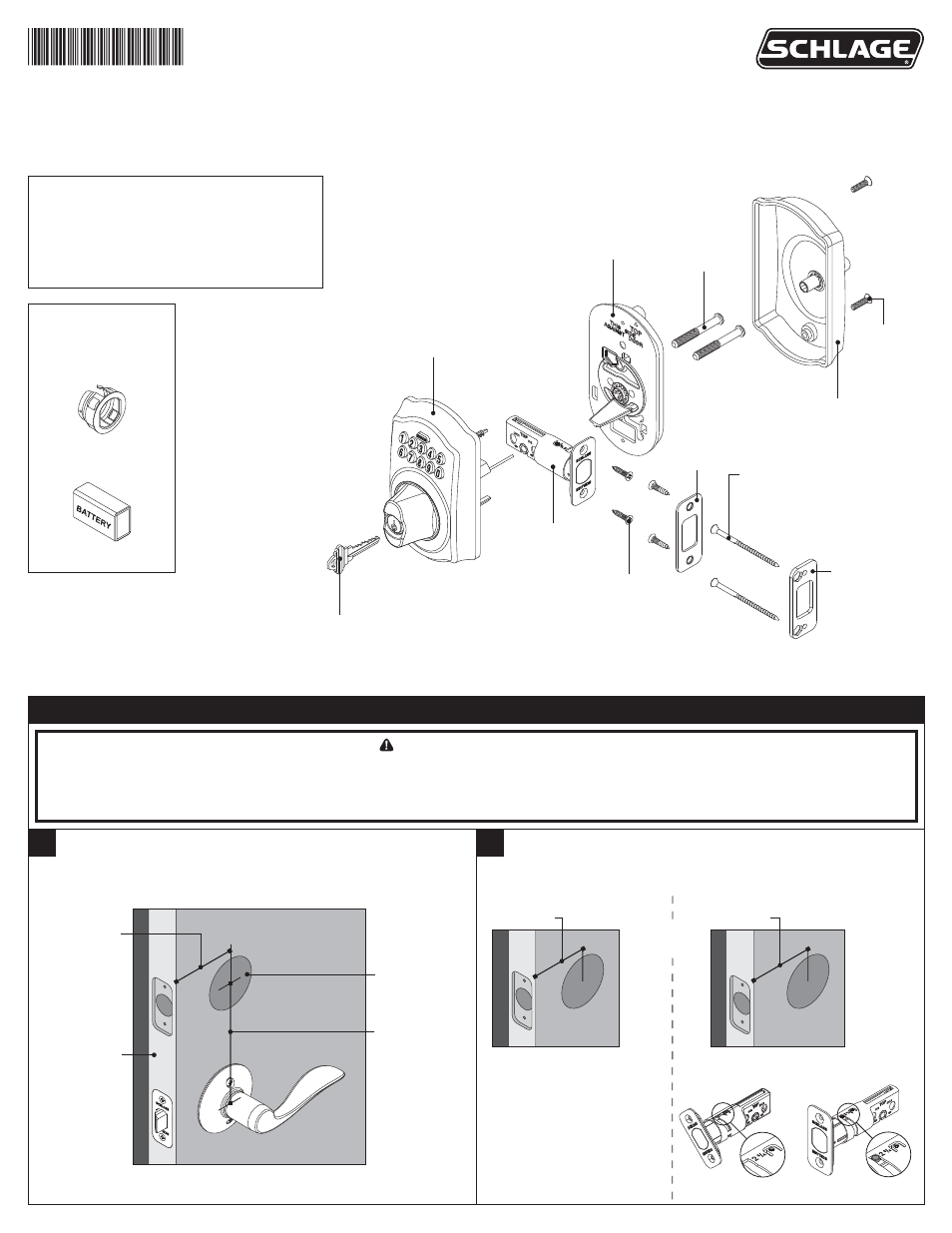

23780000
Keypad Deadbolt
Installation Instructions
Model BE365
Keypad
Bolt
Baseplate Baseplate
Screws (2)
Cover
Cover
Screws (2)
Latch/Strike
Screws (4)
Strike
Reinforcement
Screws (2)
Reinforcement
Plate
B
2 ³⁄₈" (60 mm) 2 ³⁄₄" (70 mm)
OR
Adjust bolt length, if necessary.
Measure the dimension shown. If the measurement is
2
³⁄₄" (70 mm), extend the bolt.
No adjustment needed. Rotate faceplate 180° to extend.
Not Extended Extended
• DO NOT use a power drill for installation!
• Use a screwdriver to remove product from packaging.
• Install and test lock with door open to avoid being locked out.
• Pay special attention to step 1. If lock is installed with the cam in the
wrong position, the lock will not function properly!
IMPORTANT NOTES
Prepare for Installation
Additional Parts
9V Battery
Optional Bolt
Faceplate
Tools Needed
• Phillips screwdriver
• Tape Measure
• Pencil
Optional
• Flathead Screwdriver
• Wood Block
• Hammer
Key
