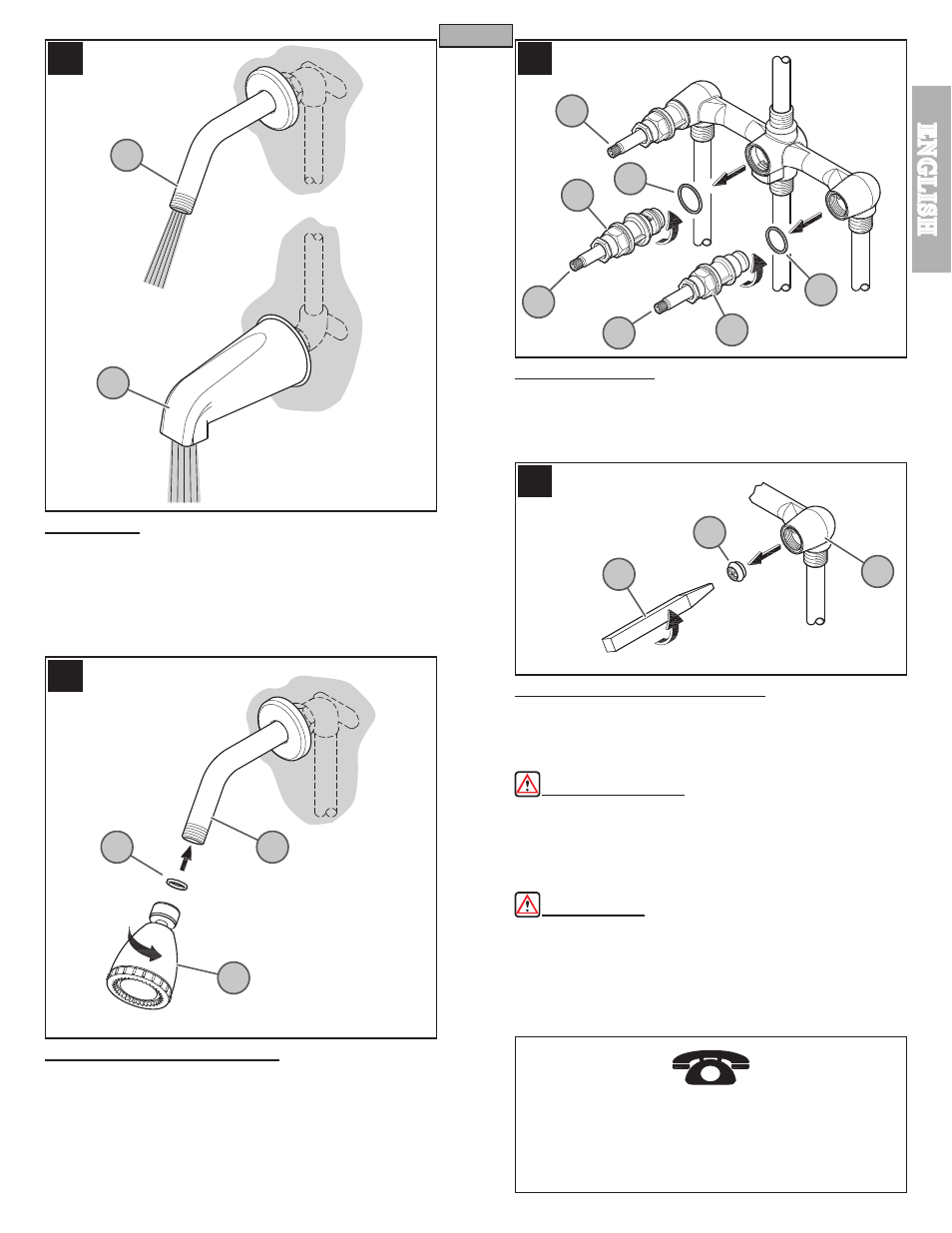

12 FLUSHING

NOTE: Pressure must be approximately equal on both Hot and Cold sides for valve

to function properly.

Open both Hot and Cold water valves allowing water to flow from Tub Outlet (12A)and

Shower Outlet (12B) until all foreign matter has cleared the lines. Check all connections

for leaks.

13 SHOWER HEAD INSTALLATION

Thread Shower Head (13A) onto Shower Arm (13B). placing the Washer (13C) in between.

14 VALVE REMOVAL

Turn off water supplies and relieve pressure before working on your faucet! Be

sure Stems (14A) are in the full OPEN position. Remove Trim (see steps 10 & 11), remove

Valve (14B) and Washer (14C) as shown. Replace parts as necessary.

Inspect and clean the mounting surface thoroughly before replacing.

CAUTION: Maintenance

DISASSEMBLY

1. Replacement parts may be available at the store where you purchased your faucet.

2. When replacement parts are not available, please write or call Price Pfister Consumer

Service.

3. Always turn off water and relieve pressure before working on your faucet.

NOTE: Trim Care

Cleaning Instructions:

For all Handles and decorative finishes, use only a soft damp cloth to clean and shine.

Use of polish, detergents, abrasive cleaners, organic solvents or acid may cause damage.

Use of other than a soft damp cloth will nullify our warranty!

Special Trim:

Trim products which contain Porcelain or other similar substance are not acceptable for

public areas or Commercial use. Installation of Said Trim is at Users Risk!

1–800–PFAUCET (1–800–732–8238)

For Toll-Free Pfaucet information call 1–800–PFAUCET

(1–800–732–8238) or visit www.pricepfister.com

• Installation Support

• Care and Warranty Information

15 SEAT REMOVAL & INSTALLATION

Using a

5

/

16

” Square Wrench (15A), remove Internal Seats (15B) from Valve Body (15C)

as shown. Replace by reversing steps.
